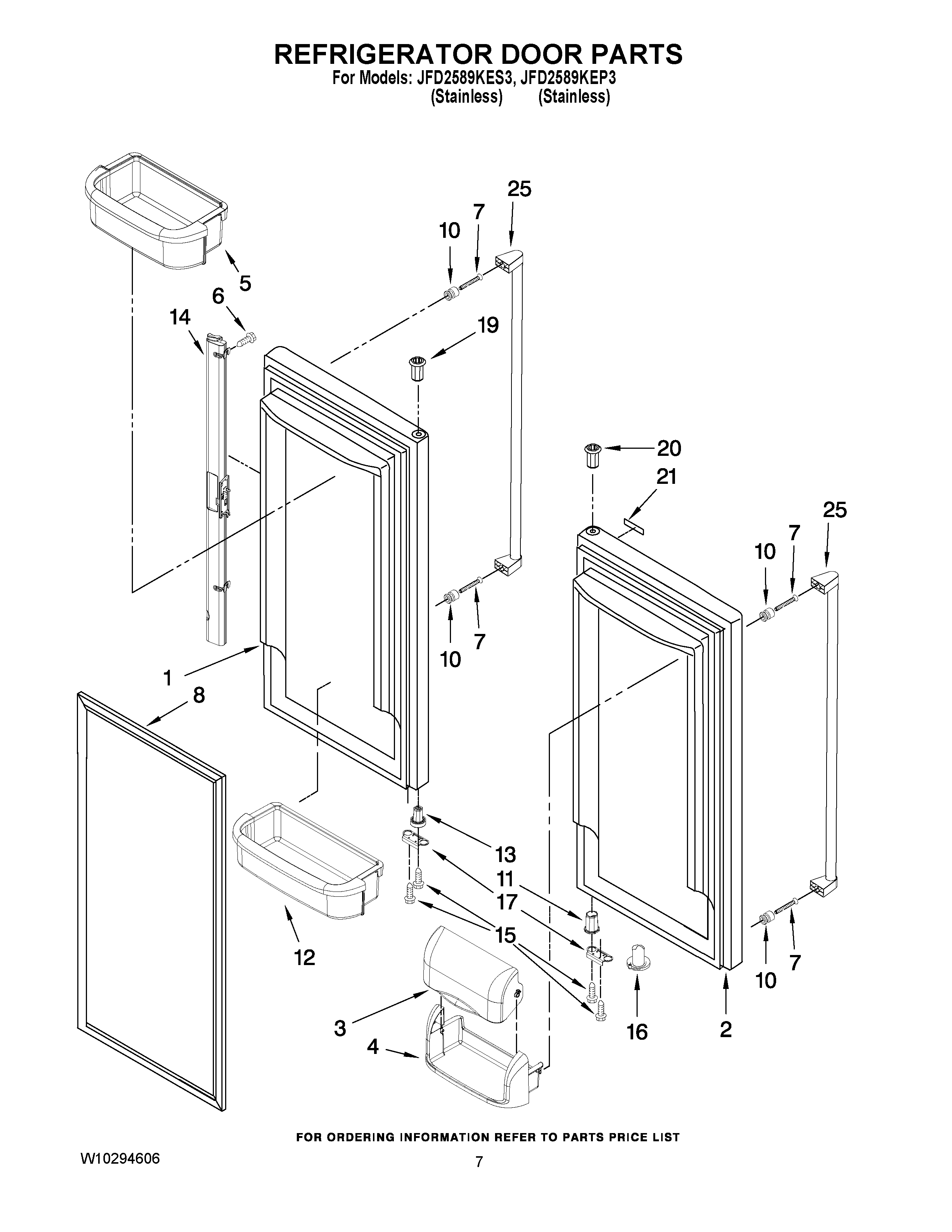

JFD2589KES3 04 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1MAY 13024033SQ
2MAY 13024031SQ
3MAY 12804701SP
4MAY 12369502SP
5BIN, SHELF (3)
6MAY 12990204
7Screw, Handle
8MAY W10163895
10MAY 12945201
11BUSHING, DOOR (BOTTOM RIGHT) (BLACK)
12MAY 12840002
13BUSHING, DOOR (BOTTOM LEFT) (BLACK)
14MAY 12722803B
15MAY 12990504
16MAY 12028505B
17MAY 12968202B
19BUSHING, DOOR (BLK)
20Bushing (Black)
2112848704 Whirlpool Refrigerator Nameplate
25WP12859110 Whirlpool Refrigerator Handle
25HANDLE (STAINLESS STEEL)
