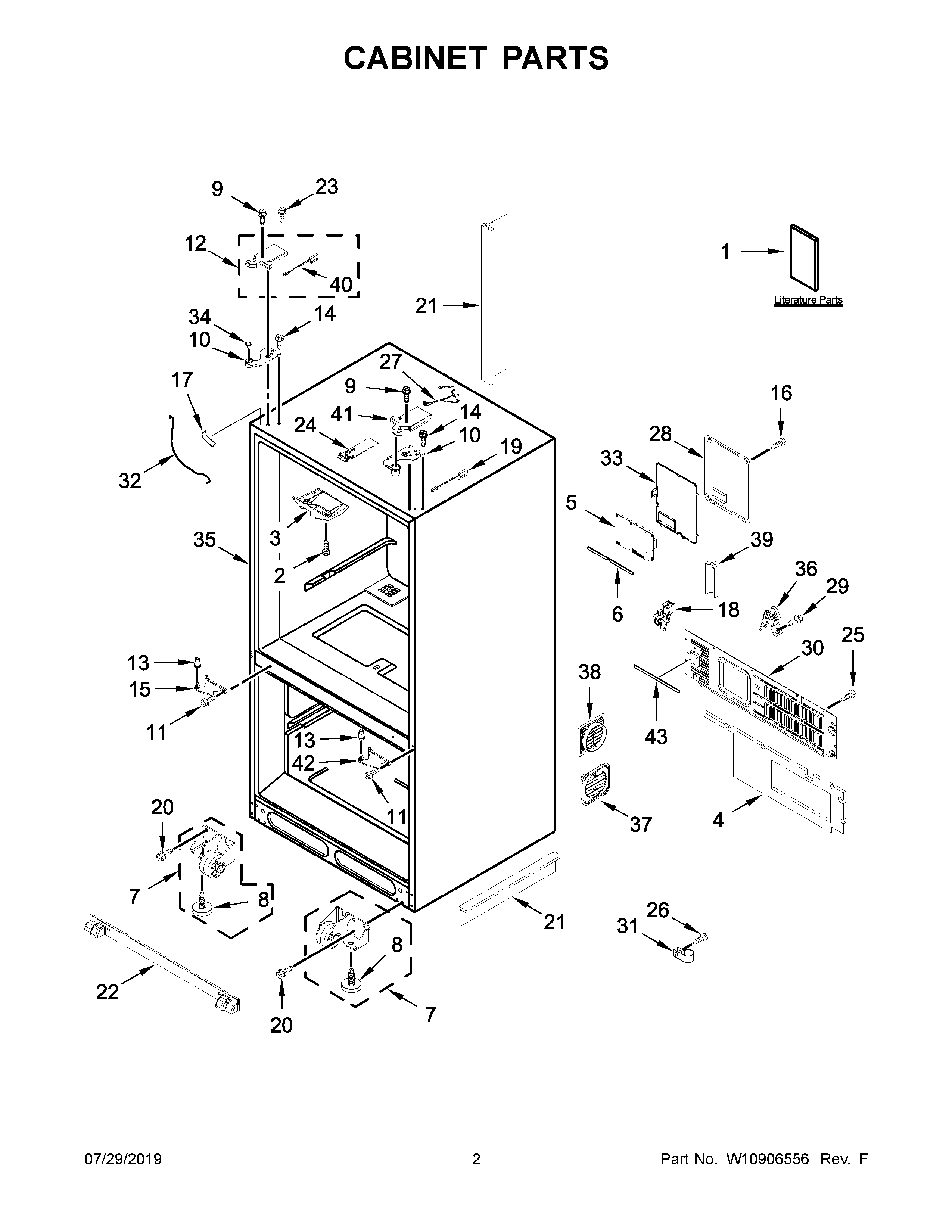

JFFCC72EFP00 02 – CABINET PARTS

Products

Position	Product
1A	USE AND CARE GUIDE
1B	MAY W11309660
1	TECH SHEET
2	Screw (4)
3	BLOCK, PIVOT
4	PAD, SOUND
5	CONTROL, ELECTRONIC
6	GASKET, HV BOX
7	ASSEMBLY, ROLLER (LEFT HAND)
7A	ASSEMBLY, ROLLER (RIGHT HAND)
8	BRAKE, ROLLER
9	Screw (8)
10A	HINGE, TOP (RIGHT HAND)
10	HINGE, TOP (LEFT HAND)
11	MAY W10673840
12	COVER, HINGE LEFT HAND (INCLUDES FOIL) (GREY)
13	BUSHING
14	SCREW
15	HINGE, CENTER LEFT HAND (GREY)
16	SCREW
17	COVER, CORNER (GREY)
18	VALVE, WATER
19	SWITCH, REED
20	MAY W10709365
21A	DIVIDER, AIR (BOTTOM)
21	DIVIDER, AIR (REAR)
22	GRILLE, TOE (GREY)
23	SCREW
24	MODULE, WIFI
26	SCREW (10)
27	ASSEMBLY, JUMPER WIRE
28	COVER, CONTROL BOX
29	MAY W10141645
30	COVER, UNIT
31	CLAMP, TUBE
32A	TUBE, DISPENSER WATER (INCLUDES SEAL)
32	TUBE, ICEMAKER WATER (INCLUDES SEAL)
33	LID, HV
34	RETAINER, DOOR
35	LINER (NOT A SERVICEABLE PART)
36	MAY 549193
37	ASSEMBLY, INNER AIR TUNNEL (INCLUDES GASKET) (GREY)
38	ASSEMBLY, OUTER AIR TUNNEL (INCLUDES GASKET) (GREY)
39	GUARD-WATER VALVE
40	SWITCH, REED
41	COVER, HINGE RIGHT HAND (GREY)
42	HINGE, CENTER RIGHT HAND (GREY)
43	GASKET
