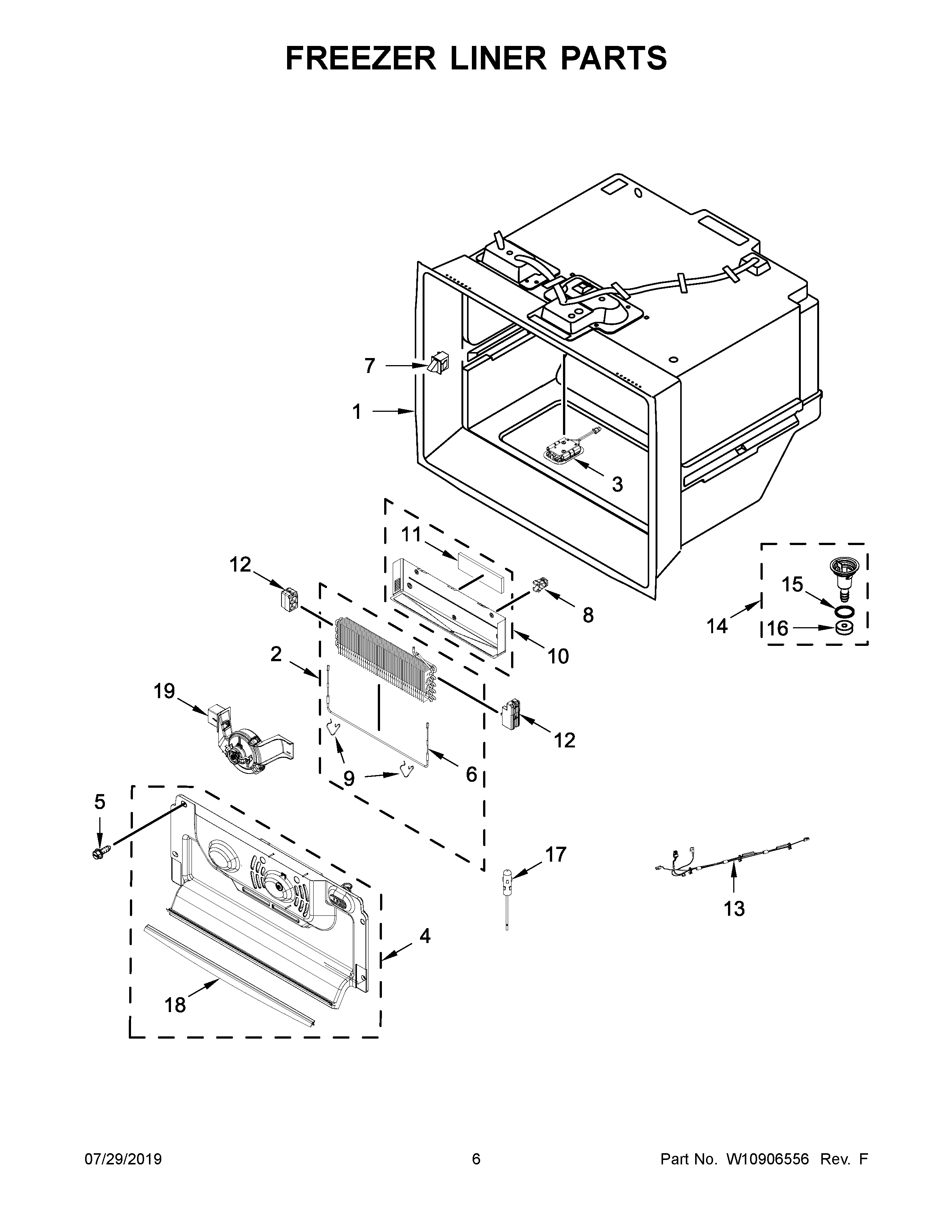

JFFCC72EFP00 04 – FREEZER LINER PARTSadmin2025-04-26T09:02:38+00:00JFFCC72EFP00 04 – FREEZER LINER PARTS
Products
| Position | Product |
|---|
| 1 | LINER (NOT A SERVICEABLE PART) |
| 2 | ASSEMBLY, EVAPORATOR |
| 3 | ASSEMBLY, LED LIGHT MODULE |
| 4 | ASSEMBLY, EVAPORATOR COVER (INCLUDES FAN MOTOR AND WIRE ASSEMBLY) |
| 5 | SCREW (10) |
| 6 | HEATER, DEFROST |
| 7 | MAY W11044241 |
| 8 | MAY 10623002 |
| 9 | CLIP, DEFROST HEATER |
| 10 | SHIELD, HEAT |
| 11 | GASKET, DRIP TRAY REAR |
| 12 | DAM, AIR (LEFT HAND) |
| 12A | DAM, AIR (RIGHT HAND) |
| 13 | ASSEMBLY, EVAPORATOR HEATER WIRE (INCLUDES THERMISTOR) |
| 14 | ASSEMBLY, DRAIN FUNNEL |
| 15 | MAY M0500703 |
| 16 | Gasket |
| 17 | THERMISTOR |
| 18 | SEAL, CRISP FRONT |
| 19 | ASSEMBLY, ICEBOX FAN |
