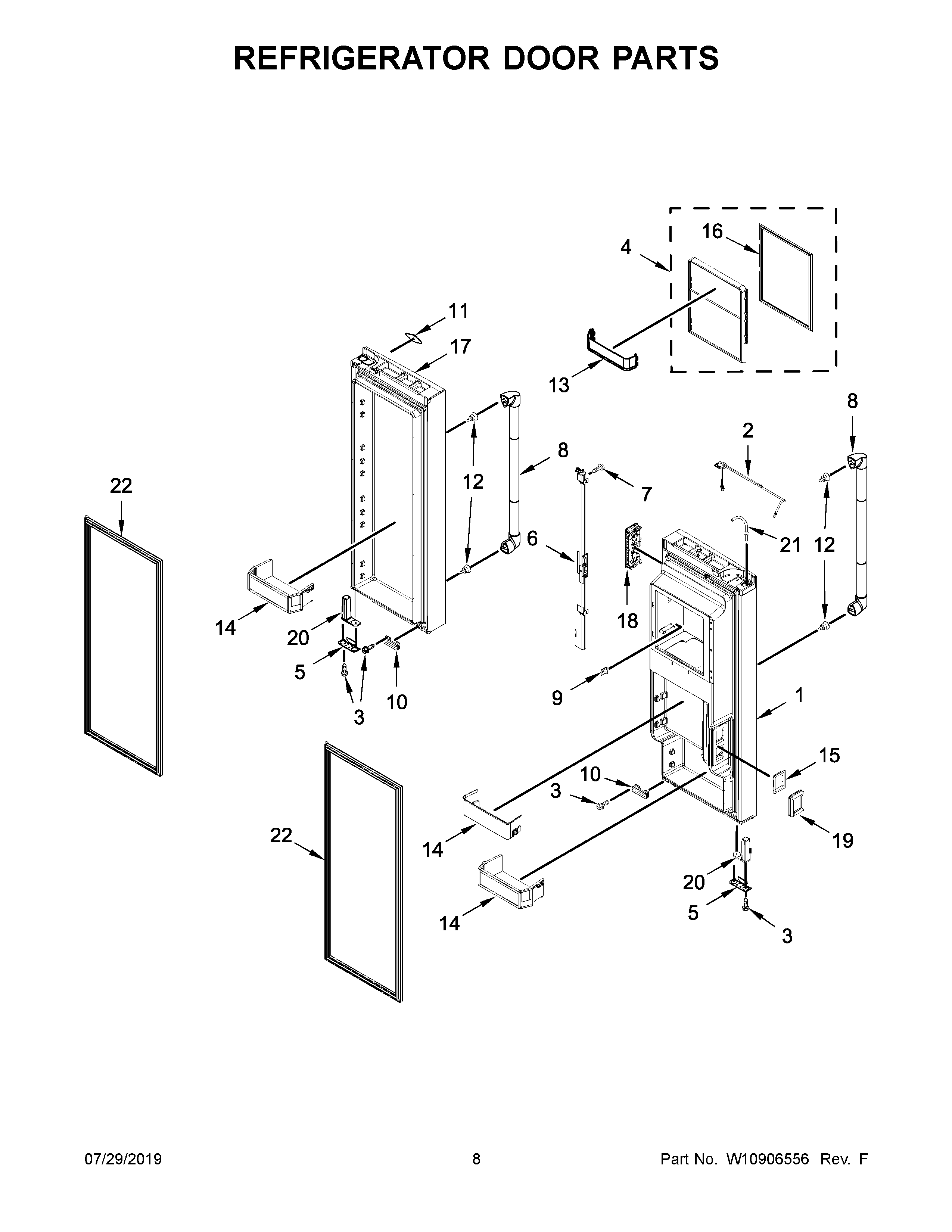

JFFCC72EFP00 05 – REFRIGERATOR DOOR PARTSadmin2025-04-26T09:02:12+00:00JFFCC72EFP00 05 – REFRIGERATOR DOOR PARTS
Products
| Position | Product |
|---|
| 1 | DOOR, REFRIGERATOR LEFT HAND (STAINLESS (ALSO ORDER ITEM # 18)) |
| 2 | ASSEMBLY, FILL TUBE (ICEMAKER) |
| 3 | SCREW |
| 4 | ASSEMBLY, ICE DOOR |
| 5 | BRACKET, DOOR STOP |
| 6 | MULLION, DOOR (GREY) |
| 7 | MAY 12990204 |
| 8 | MAY W10605388 |
| 9 | SWITCH, ROCKER ARM |
| 10 | BUMPER, DOOR (GREY) |
| 11 | NAMEPLATE (STAINLESS (JFX2597AEP2)) |
| 12 | MAY W10460893 |
| 13 | TRIVET, ICE COMPARTMENT DOOR |
| 14A | BIN, DOOR (GALLON) |
| 14 | BIN, DOOR (MEDIUM) |
| 15 | BIN, DOOR (RETAINER, DOOR DUCT) |
| 16 | GASKET, ICE DOOR |
| 17 | DOOR, REFRIGERATOR RIGHT HAND (STAINLESS) |
| 18 | ASSEMBLY, USER INTERFACE |
| 19 | GASKET, COOLING DUCT |
| 20 | CLOSER, DOOR (LEFT HAND) |
| 20A | CLOSER, DOOR (RIGHT HAND) |
| 21 | TUBE, WATER |
| 22 | GASKET, DOOR (GREY) |
