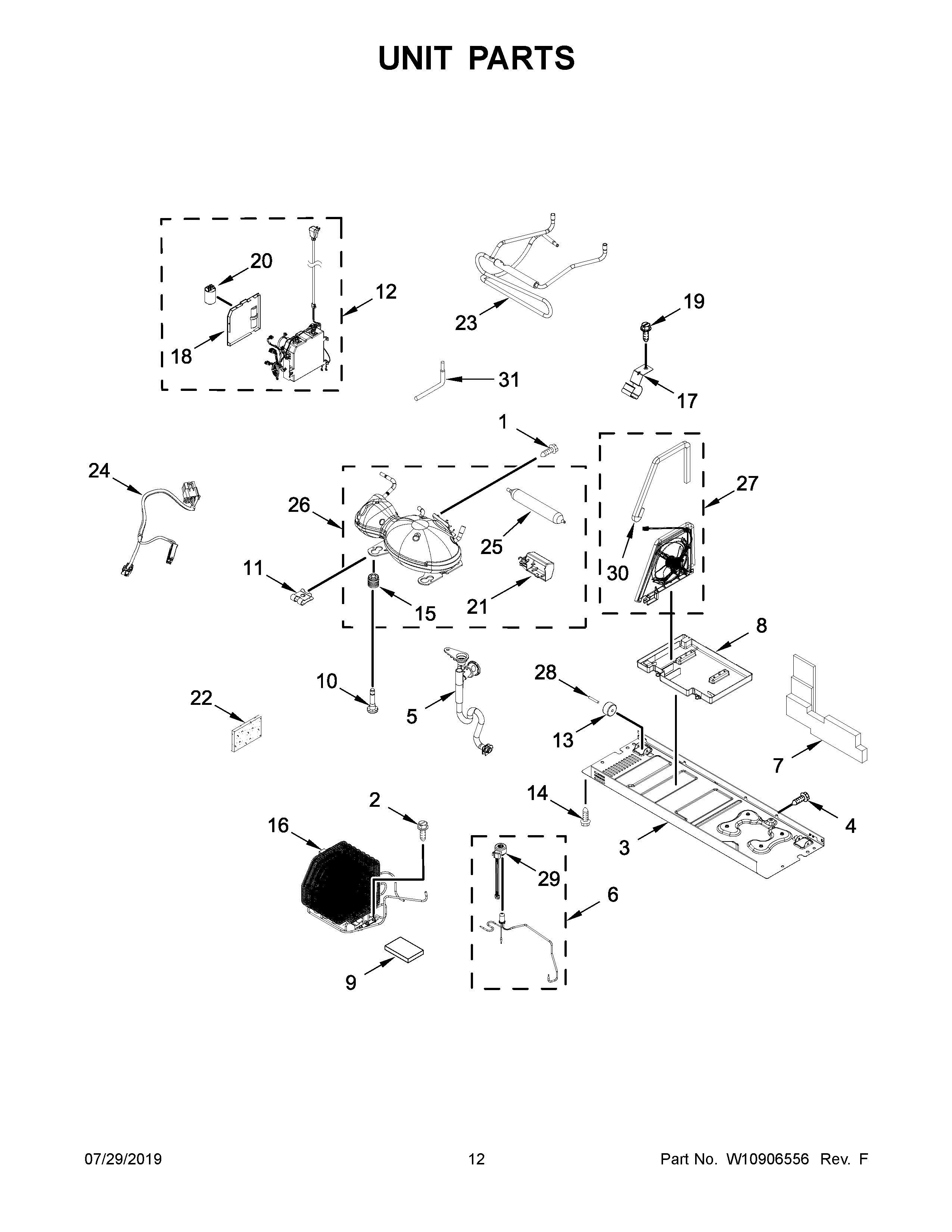

JFFCC72EFP00 07 – UNIT PARTSadmin2025-04-26T09:02:22+00:00JFFCC72EFP00 07 – UNIT PARTS
Products
| Position | Product |
|---|
| NI | VALVE, ACCESS (3/8``) |
| NI | LINER (NOT A SERVICEABLE PART) |
| NI | MAY 876764 |
| NI | VALVE, ACCESS (1/4``) |
| NI | Valve, Access (5/16``) |
| NI | Valve, Access (3/4``) |
| NI | Valve, Access (5/8``) |
| 1 | SCREW 8-32 X 1/2 |
| 2 | SCREW |
| 3 | BASEPLATE |
| 4 | SCREW (10) |
| 5 | ASSEMBLY, DRAIN EXTENSION |
| 6 | ASSEMBLY, 3 WAY VALVE |
| 7 | PAD, SOUND |
| 8 | TRAY, EVAPORATOR |
| 9 | GROMMET, CONDENSER |
| 10 | BOLT |
| 11 | CLIP, RETAINING |
| 12 | ASSEMBLY, ORION BOX (INCLUDES WIRING HARNESS FOR COMPRESSOR AND POWER CORD) |
| 13 | ROLLER |
| 14 | MAY 12992101 |
| 15 | GROMMET, COMPRESSOR |
| 16 | CONDENSER |
| 17 | BRACKET, VALVE |
| 18 | COVER, HOUSING |
| 19 | MAY W10141645 |
| 20 | FILTER, EMI |
| 21 | COVER, TERMINAL |
| 22 | SEALER, INSULATION |
| 23 | ASSEMBLY, SUCTION TUBE |
| 24 | HARNESS, UNIT (CONDENSER FAN) |
| 25 | DRIER (SERVICE DRIER WITHOUT DYE) |
| 26 | COMPRESSOR ASSEMBLY |
| 27 | ASSEMBLY, CONDENSER FAN |
| 28 | Axle, Roller (2) |
| 29 | COIL, 3 WAY VALVE |
| 30 | GASKET, CONDENSER FAN |
| 31 | MAY W10735062 |
