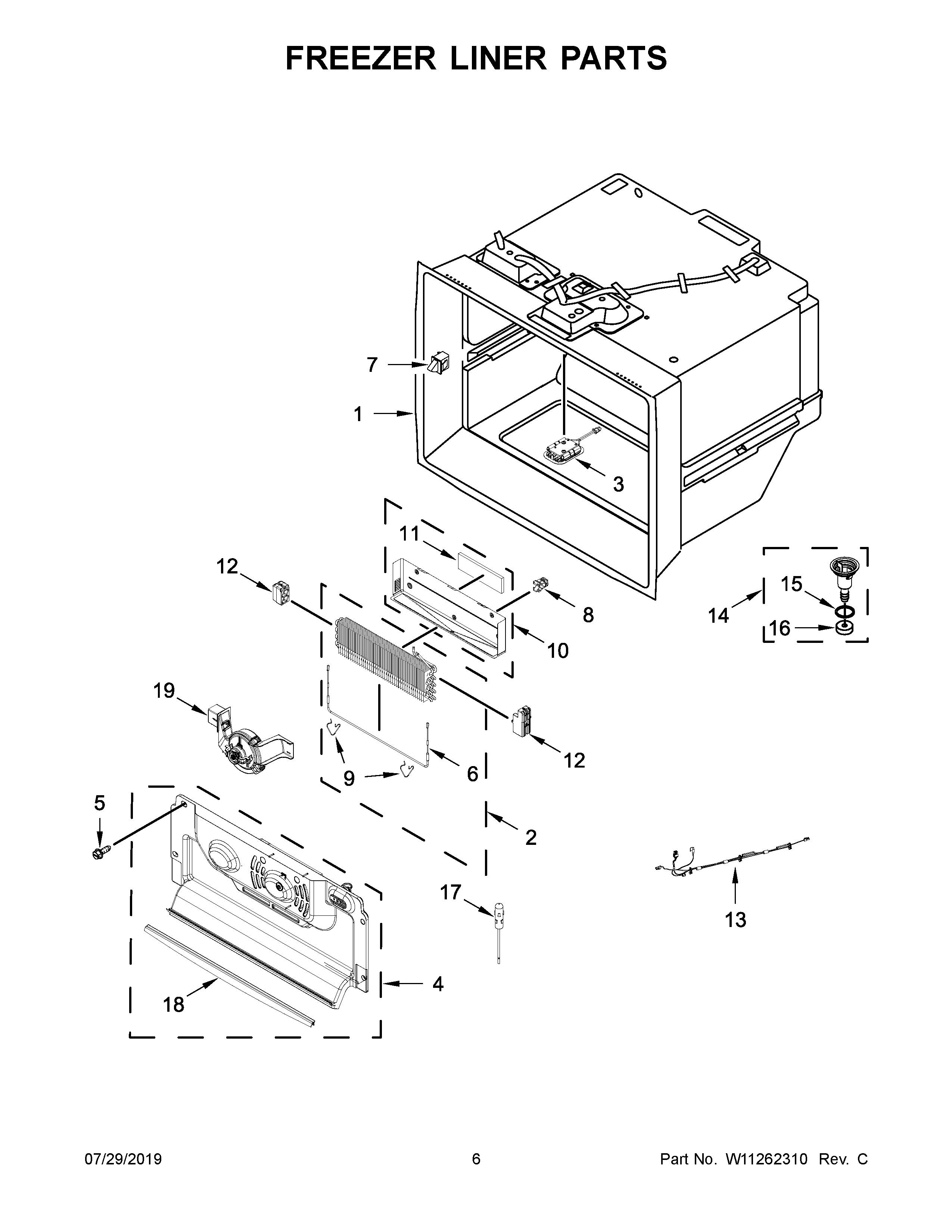

JFFCC72EFP02 04 – FREEZER LINER PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	ASSEMBLY, EVAPORATOR
3	ASSEMBLY, LED LIGHT MODULE
4	ASSEMBLY, EVAPORATOR COVER (INCLUDES FAN MOTOR AND WIRE ASSEMBLY)
5	SCREW (10)
6	HEATER, DEFROST
7	MAY W11044241
8	MAY 10623002
9	CLIP, DEFROST HEATER
10	SHIELD, HEAT
11	GASKET, DRIP TRAY REAR
12A	DAM, AIR (RIGHT HAND)
12	DAM, AIR (LEFT HAND)
13	ASSEMBLY, EVAPORATOR HEATER WIRE (INCLUDES THERMISTOR)
14	ASSEMBLY, DRAIN FUNNEL
15	MAY M0500703
16	Gasket
17	THERMISTOR
18	SEAL, CRISP FRONT
19	ASSEMBLY, ICEBOX FAN
