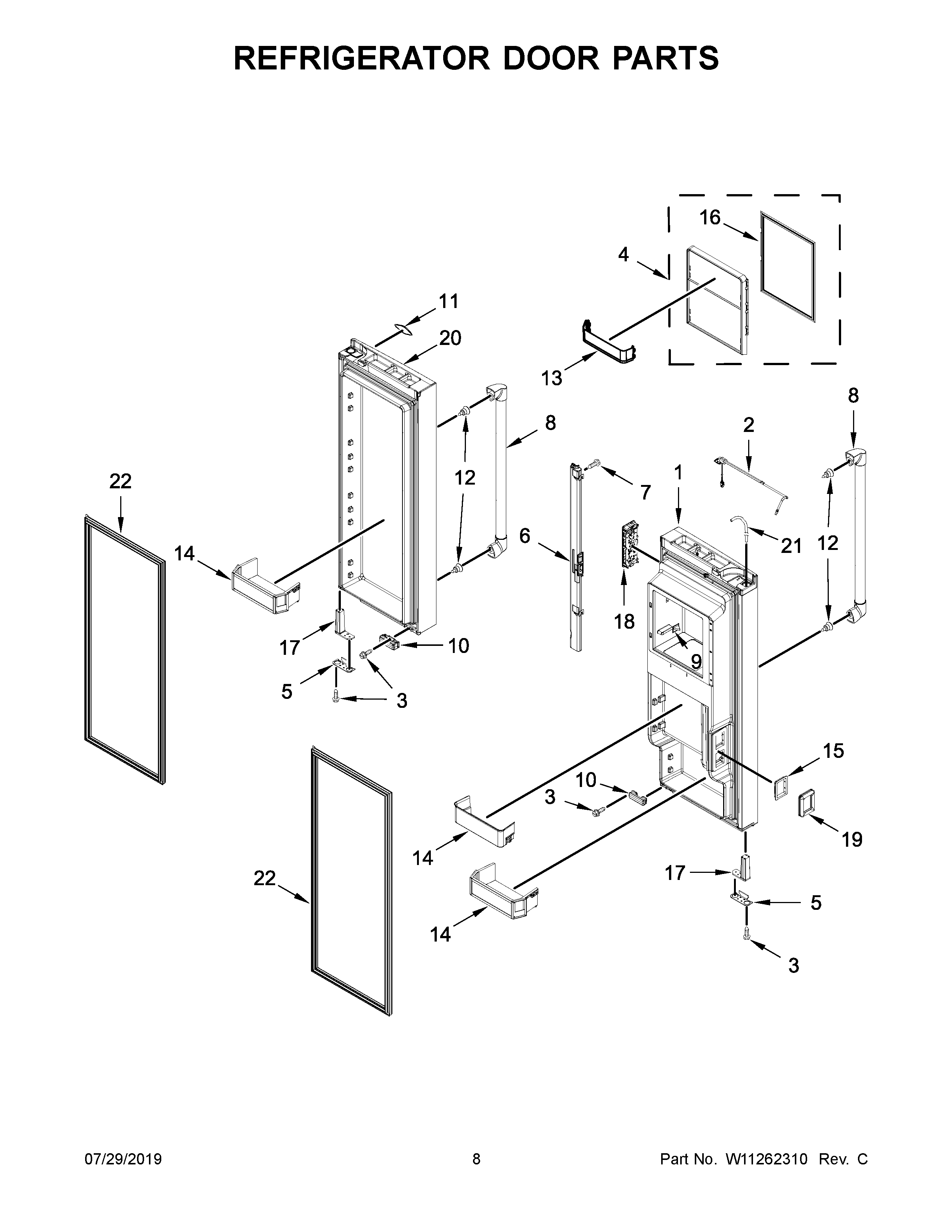

JFFCC72EFP02 05 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1DOOR, REFRIGERATOR LEFT HAND (STAINLESS) (ALSO ORDER ITEM #18)
2ASSEMBLY, FILL TUBE (ICEMAKER)
3SCREW
4ASSEMBLY, ICE DOOR
5BRACKET, DOOR STOP
6MULLION, DOOR (GREY)
7MAY 12990204
8MAY W10605388
9SWITCH, ROCKER ARM
10BUMPER, DOOR (GREY)
11NAMEPLATE (STAINLESS (JFX2597AEP2))
12MAY W10460893
13TRIVET, ICE COMPARTMENT DOOR
14BIN, DOOR (MEDIUM)
14ABIN, DOOR (GALLON)
15BIN, DOOR (RETAINER, DOOR DUCT)
16GASKET, ICE DOOR
17CLOSER, DOOR (LEFT HAND)
17ACLOSER, DOOR (RIGHT HAND)
18ASSEMBLY, USER INTERFACE
19GASKET, COOLING DUCT
20DOOR, REFRIGERATOR RIGHT HAND (STAINLESS)
21TUBE, WATER
22GASKET, DOOR (GREY)
