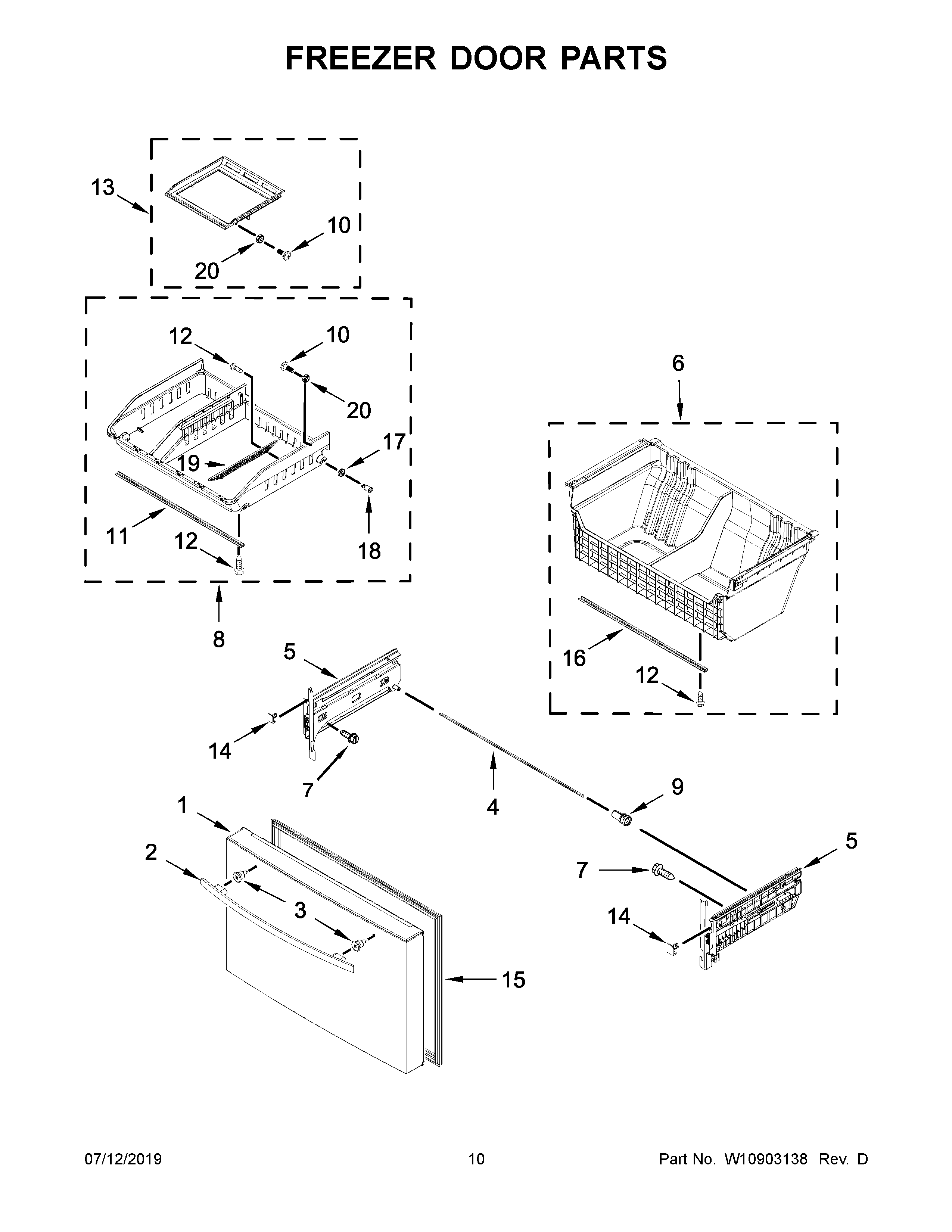

JFFCC72EFS00 06 – FREEZER DOOR PARTSadmin2025-04-26T09:04:45+00:00JFFCC72EFS00 06 – FREEZER DOOR PARTS
Products
| Position | Product |
|---|
| 1 | DOOR, FREEZER (INCLUDES DOOR GASKET) (STAINLESS) |
| 2 | HANDLE, DOOR (STAINLESS) |
| 3 | MAY W10460893 |
| 4 | SHAFT, RACK |
| 5A | ASSEMBLY, BRACKET (RIGHT HAND) |
| 5 | ASSEMBLY, BRACKET (LEFT HAND) |
| 6 | ASSEMBLY, BOTTOM PAN |
| 7 | SCREW |
| 8 | ASSEMBLY, TOP PAN |
| 9 | COLLAR, GEAR |
| 10 | SCREW |
| 11 | SUPPORT, PAN |
| 12 | SCREW (STAINLESS) |
| 13 | ASSEMBLY, UPPER HALF PAN |
| 14 | STOP, PAN (LEFT HAND) |
| 14A | STOP, PAN (RIGHT HAND) |
| 15 | GASKET, DOOR (GREY) |
| 16 | BAR, SUPPORT |
| 17 | ROLLER |
| 18 | AXLE, ROLLER |
| 19 | RAIL, GUARD |
| 20 | ROLLER |
