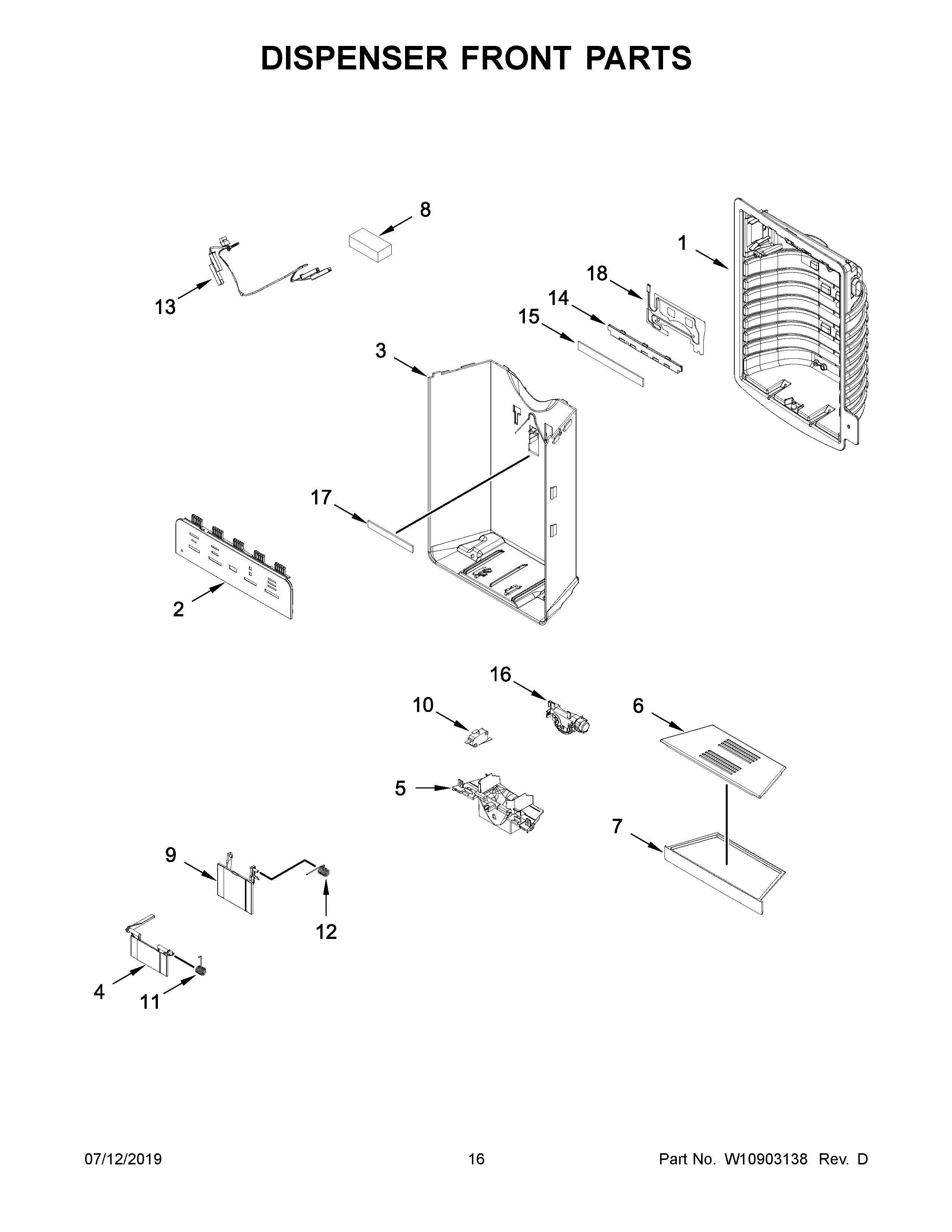

JFFCC72EFS00 09 – DISPENSER FRONT PARTS

Products

PositionProduct
1LINER (NOT A SERVICEABLE PART)
2ASSEMBLY, USER INTERFACE
3WALL, DISPENSER FALSE (GREY)
4PADDLE, WATER DISPENSER (CHROME)
5SEPERATOR (GREY)
6GRATE, DRIP
7TRAY, DRIP (GREY)
8GASKET, FOAM
9PADDLE, ICE DISPENSER (CHROME)
10SWITCH, LIMIT
11SPRING, TORSION
12SPRING, TORSION
13ASSEMBLY, PADDLE JUMPER WIRE
14BRACKET, USER INTERFACE ADAPTER
15GASKET, USER INTERFACE ADAPTER
16ASSEMBLY, ICE DOOR MOTOR BRACKET
17PAD, SOUND
18HEATER, DISPENSER
