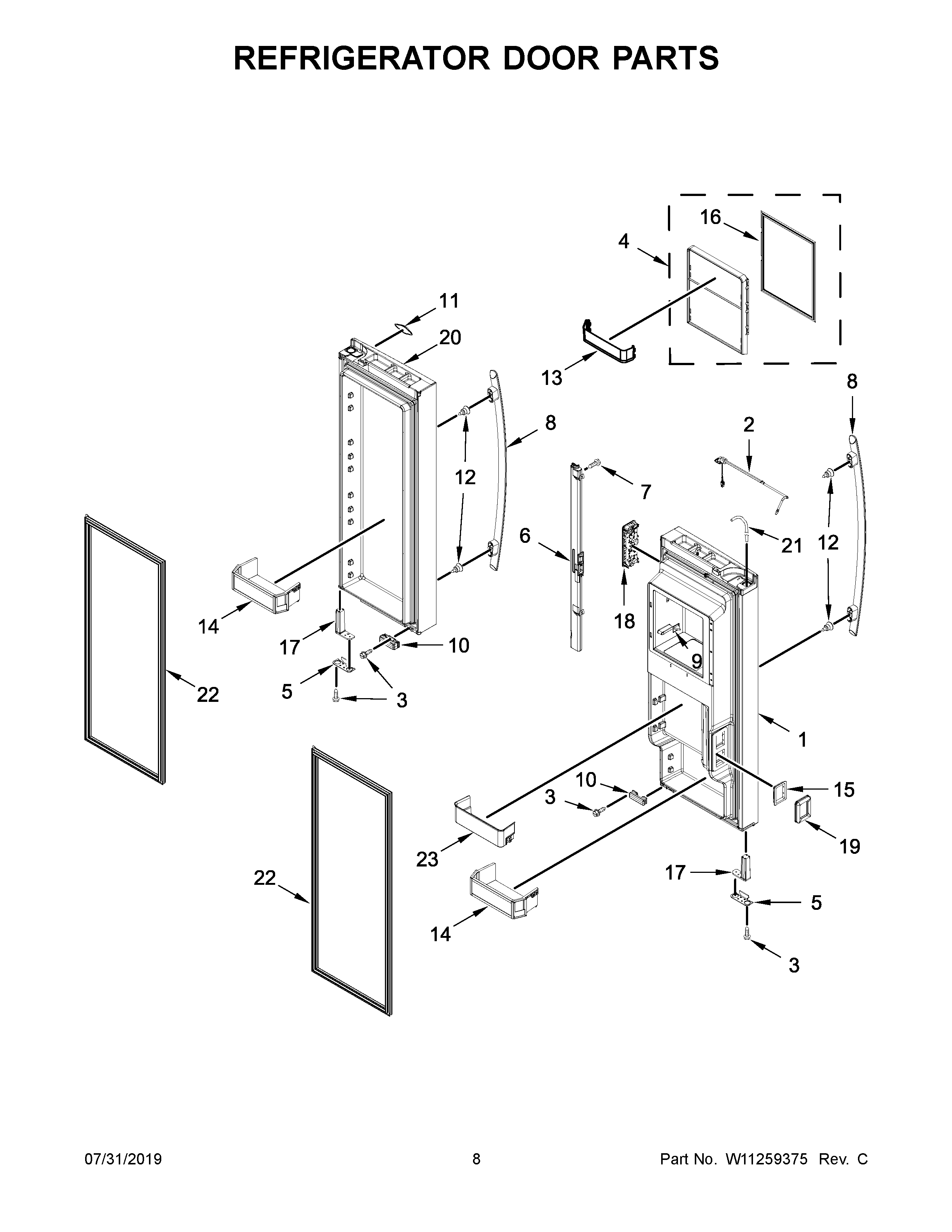

JFFCC72EFS02 05 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1DOOR, REFRIGERATOR LEFT HAND (STAINLESS) (ALSO ORDER ITEM #18)
2ASSEMBLY, FILL TUBE (ICEMAKER)
3SCREW
4ASSEMBLY, ICE DOOR
5BRACKET, DOOR STOP
6MULLION, DOOR (GREY)
7MAY 12990204
8HANDLE, DOOR (STAINLESS)
9SWITCH, ROCKER ARM
10BUMPER, DOOR (GREY)
11ASSEMBLY, BADGE (STAINLESS)
12MAY W10460893
13TRIVET, ICE COMPARTMENT DOOR
14BIN, DOOR (GALLON)
15BIN, DOOR (RETAINER, DOOR DUCT)
16GASKET, ICE DOOR
17ACLOSER, DOOR (RIGHT HAND)
17CLOSER, DOOR (LEFT HAND)
18ASSEMBLY, USER INTERFACE
19GASKET, COOLING DUCT
20DOOR, REFRIGERATOR RIGHT HAND (STAINLESS)
21TUBE, WATER
22GASKET, DOOR (GREY)
23BIN, DOOR (MEDIUM)
