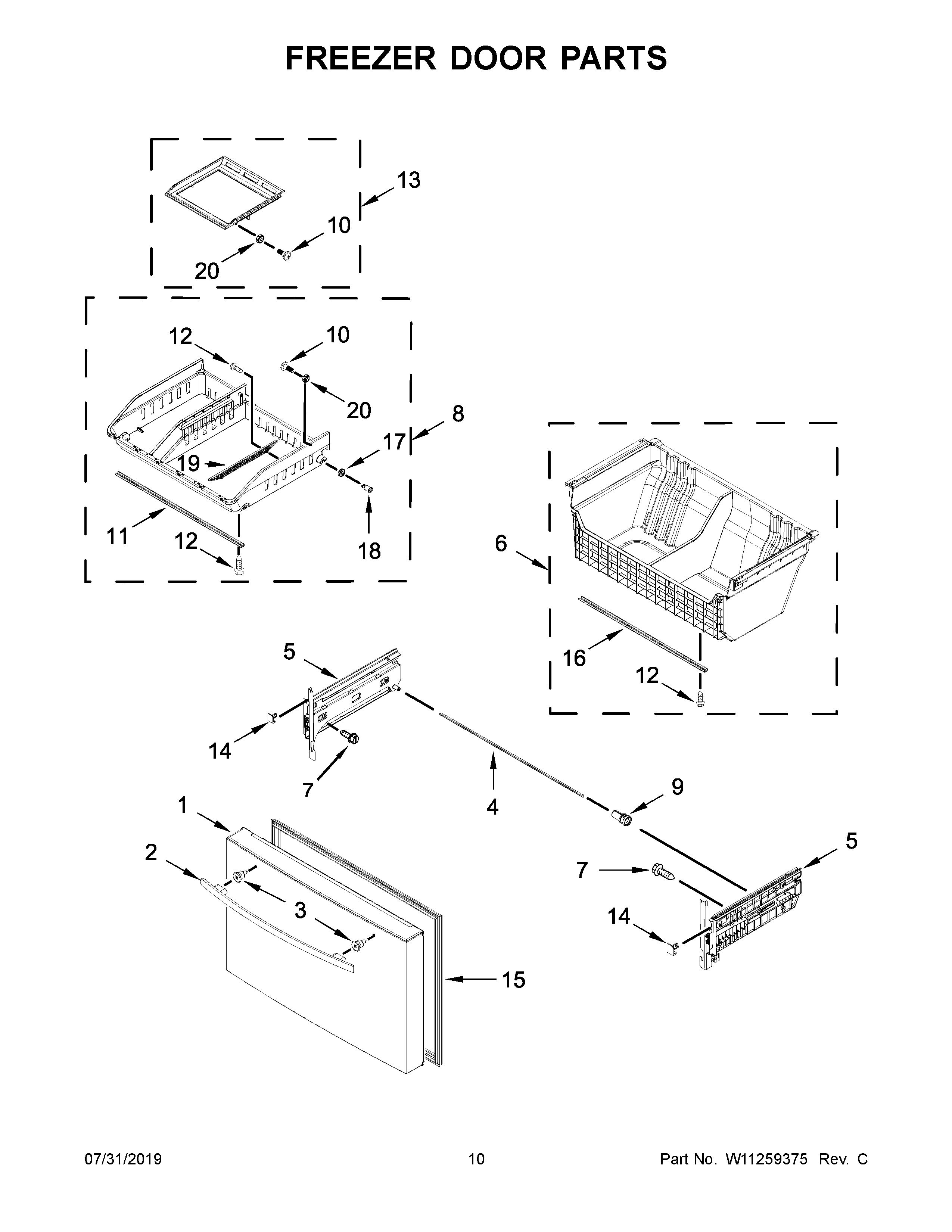

JFFCC72EFS02 06 – FREEZER DOOR PARTS

Products

Position	Product
1	DOOR, FREEZER (INCLUDES DOOR GASKET) (STAINLESS)
2	HANDLE, DOOR (STAINLESS)
3	MAY W10460893
4	SHAFT, RACK
5A	ASSEMBLY, BRACKET (RIGHT HAND)
5	ASSEMBLY, BRACKET (LEFT HAND)
6	ASSEMBLY, BOTTOM PAN
7	SCREW
8	ASSEMBLY, TOP PAN
9	COLLAR, GEAR
10	SCREW
11	SUPPORT, PAN
12	SCREW (STAINLESS)
13	ASSEMBLY, UPPER HALF PAN
14	STOP, PAN (LEFT HAND)
14A	STOP, PAN (RIGHT HAND)
15	GASKET, DOOR (GREY)
16	BAR, SUPPORT
17	ROLLER
18	AXLE, ROLLER
19	RAIL, GUARD
20	ROLLER
