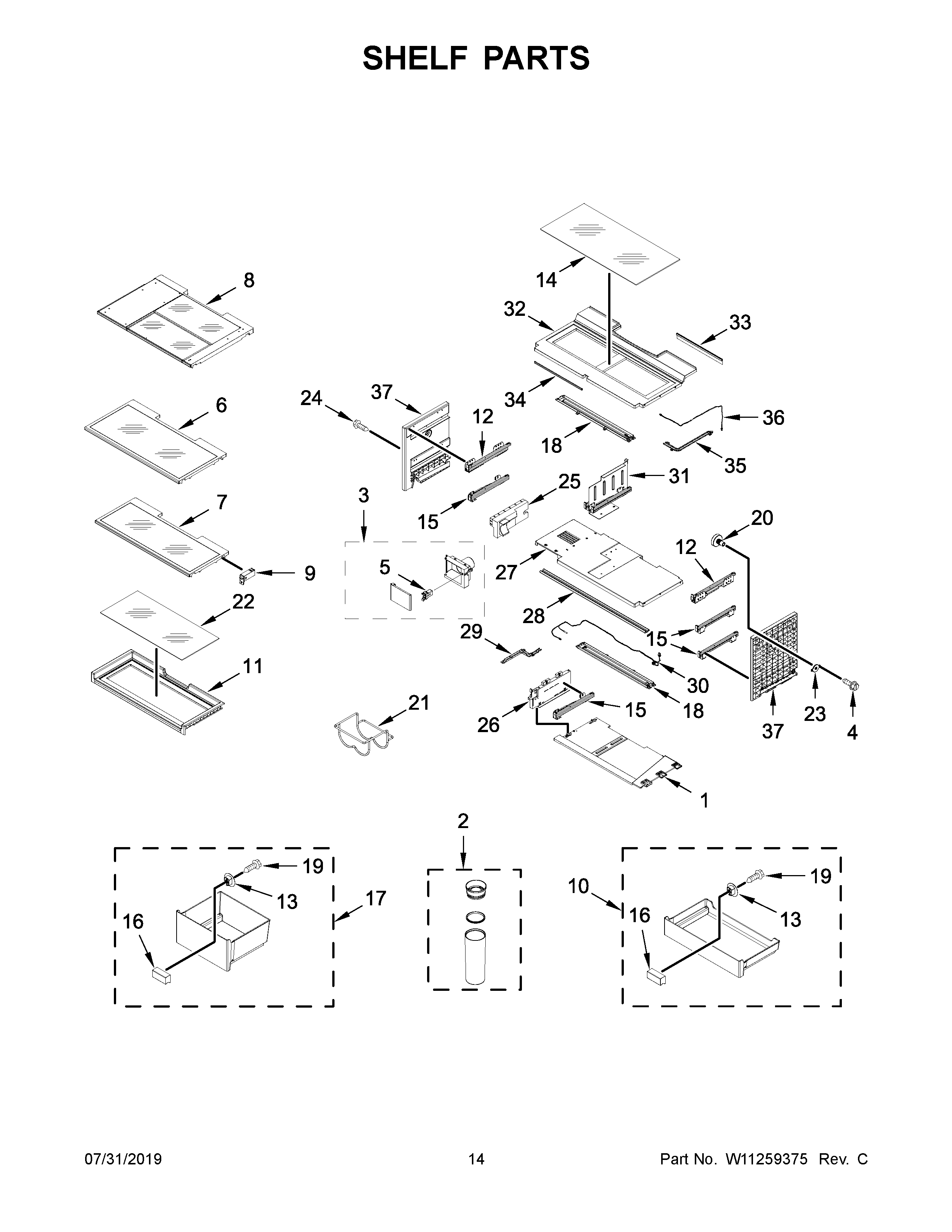

JFFCC72EFS02 08 – SHELF PARTSadmin2025-04-26T09:01:35+00:00JFFCC72EFS02 08 – SHELF PARTS
Products
| Position | Product |
|---|
| 1 | BASE, PANTRY |
| 2 | ASSEMBLY, HERB STORAGE (INCLUDES LID AND GASKET) |
| 3 | MAY W11347068 |
| 4 | SCREW (GREY) |
| 5 | LATCH, PUSH |
| 6 | ASSEMBLY, 15" FULL SHELF |
| 7 | ASSEMBLY, 15" FULL SHELF |
| 8 | ASSEMBLY, TUCK SHELF |
| 9 | ASSEMBLY, BLOCK (FRONT LEFT/BACK RIGHT) |
| 9A | ASSEMBLY, BLOCK (FRONT RIGHT/BACK LEFT) |
| 10 | PAN, PANTRY |
| 11 | ASSEMBLY, PLATTER SHELF |
| 12 | GLIDE, PLATTER (LEFT HAND) |
| 12A | GLIDE, PLATTER (RIGHT HAND) |
| 13 | SPACER, HANDLE |
| 14 | GLASS, CRISPER COVER |
| 15 | GLIDE, CRISPER (LEFT HAND) |
| 15A | GLIDE, CRISPER (RIGHT HAND) |
| 16 | HANDLE |
| 17 | ASSEMBLY, CRISPER PAN |
| 18 | MAY W10921807 |
| 19 | SCREW |
| 20 | KNOB, SIDE SUPPORT |
| 21 | RACK, WINE |
| 22 | GLASS, PLATTER |
| 23 | FLANGE, SIDE SUPPORT |
| 24 | SCREW |
| 25 | INSULATION, FILTER HOUSING |
| 26 | SUPPORT, PANTRY |
| 27 | COVER, PANTRY |
| 28 | BAR, SUPPORT |
| 29 | COVER, WIRING HARNESS |
| 30 | ASSEMBLY, PANTRY WIRE (INCLUDES THERMISTOR) |
| 31 | ASSEMBLY, CENTER SUPPORT |
| 32 | FRAME, CRISPER COVER |
| 33 | GASKET, CRISPER COVER (REAR) |
| 34 | GASKET, CRISPER COVER (FRONT) |
| 35 | COVER, WIRING HARNESS |
| 36 | JUMPER, CRISPER LED |
| 37 | SUPPORT, SIDE (LEFT HAND) |
| 37A | SUPPORT, SIDE (RIGHT HAND) |
