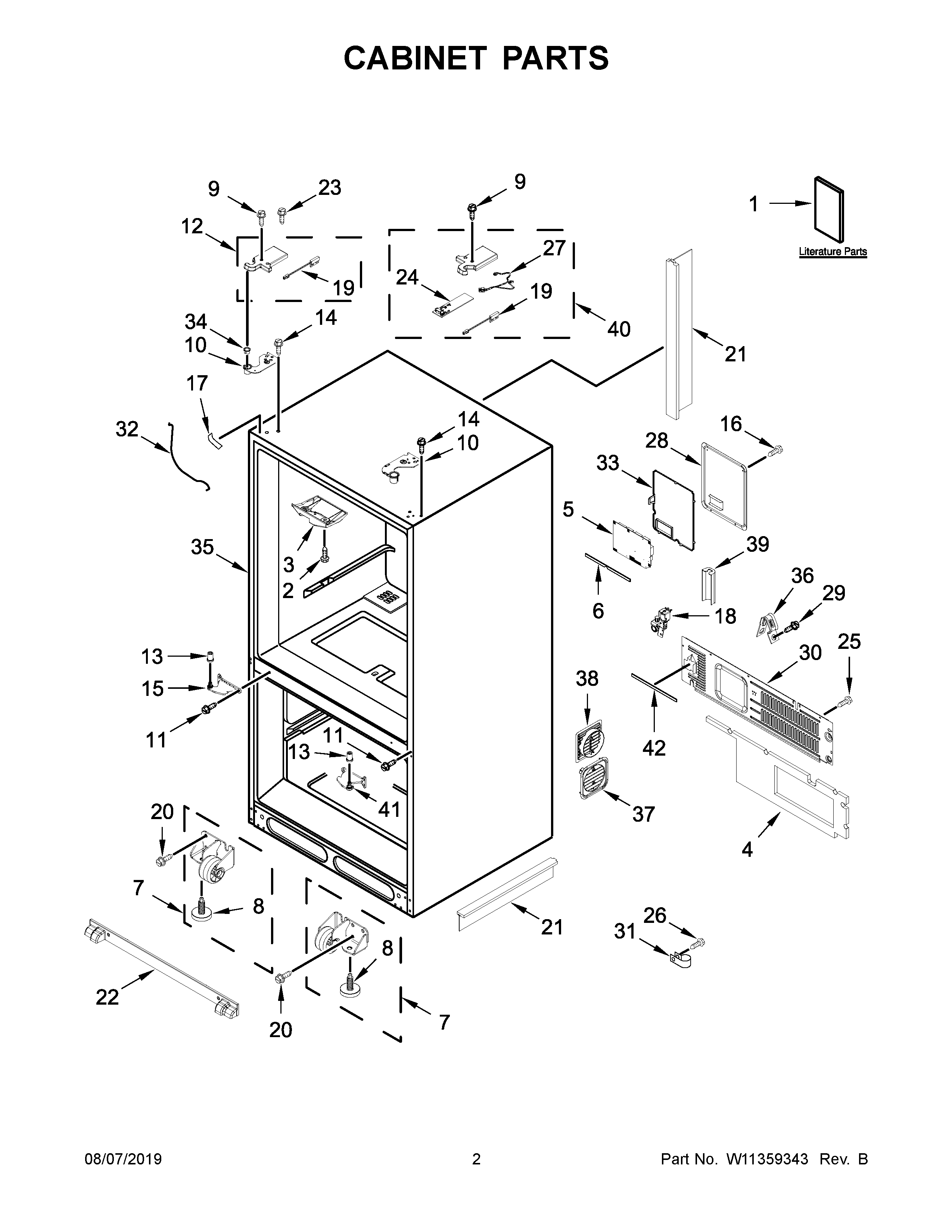

JFFCC72EFS03 02 – CABINET PARTSadmin2025-04-26T09:01:42+00:00JFFCC72EFS03 02 – CABINET PARTS
Products
| Position | Product |
|---|
| 1C | MAY W11309660 |
| 1A | TECH SHEET (FRENCH) |
| 1 | TECH SHEET (ENGLISH) |
| 1B | MAY W11307643 |
| 2 | Screw (4) |
| 3 | BLOCK, PIVOT |
| 4 | PAD, SOUND |
| 5 | CONTROL, ELECTRONIC |
| 6 | GASKET, HV BOX |
| 7A | ASSEMBLY, ROLLER (RIGHT HAND) |
| 7 | ASSEMBLY, ROLLER (LEFT HAND) |
| 8 | BRAKE, ROLLER |
| 9 | Screw (8) |
| 10A | HINGE, TOP (RIGHT HAND) |
| 10 | HINGE, TOP (LEFT HAND) |
| 11 | MAY W10673840 |
| 12 | COVER, HINGE LEFT HAND (INCLUDES FOIL) (GREY) |
| 13 | BUSHING |
| 14 | SCREW |
| 15 | HINGE, CENTER LEFT HAND (GREY) |
| 16 | SCREW |
| 17 | COVER, CORNER (GREY) |
| 18 | VALVE, WATER |
| 19 | SWITCH, REED |
| 20 | MAY W10709365 |
| 21 | DIVIDER, AIR (REAR) |
| 21A | DIVIDER, AIR (BOTTOM) |
| 22 | GRILLE, TOE (GREY) |
| 23 | SCREW |
| 24 | WIFI MODULE |
| 26 | SCREW (10) |
| 27 | ASSEMBLY, JUMPER (WIRE) |
| 28 | COVER, CONTROL BOX |
| 29 | MAY W10141645 |
| 30 | COVER, UNIT |
| 31 | CLAMP, TUBE |
| 32 | TUBE, ICEMAKER WATER (INCLUDES SEAL) |
| 32A | TUBE, DISPENSER WATER (INCLUDES SEAL) |
| 33 | LID, HV |
| 34 | RETAINER, DOOR |
| 35 | LINER (NOT A SERVICEABLE PART) |
| 36 | MAY 549193 |
| 37 | ASSEMBLY, INNER AIR TUNNEL (INCLUDES GASKET) (GREY) |
| 38 | ASSEMBLY, OUTER AIR TUNNEL (INCLUDES GASKET) (GREY) |
| 39 | GUARD-WATER VALVE |
| 40 | COVER, HINGE RIGHT HAND (GREY) |
| 41 | HINGE, CENTER RIGHT HAND (GREY) |
| 42 | GASKET |
