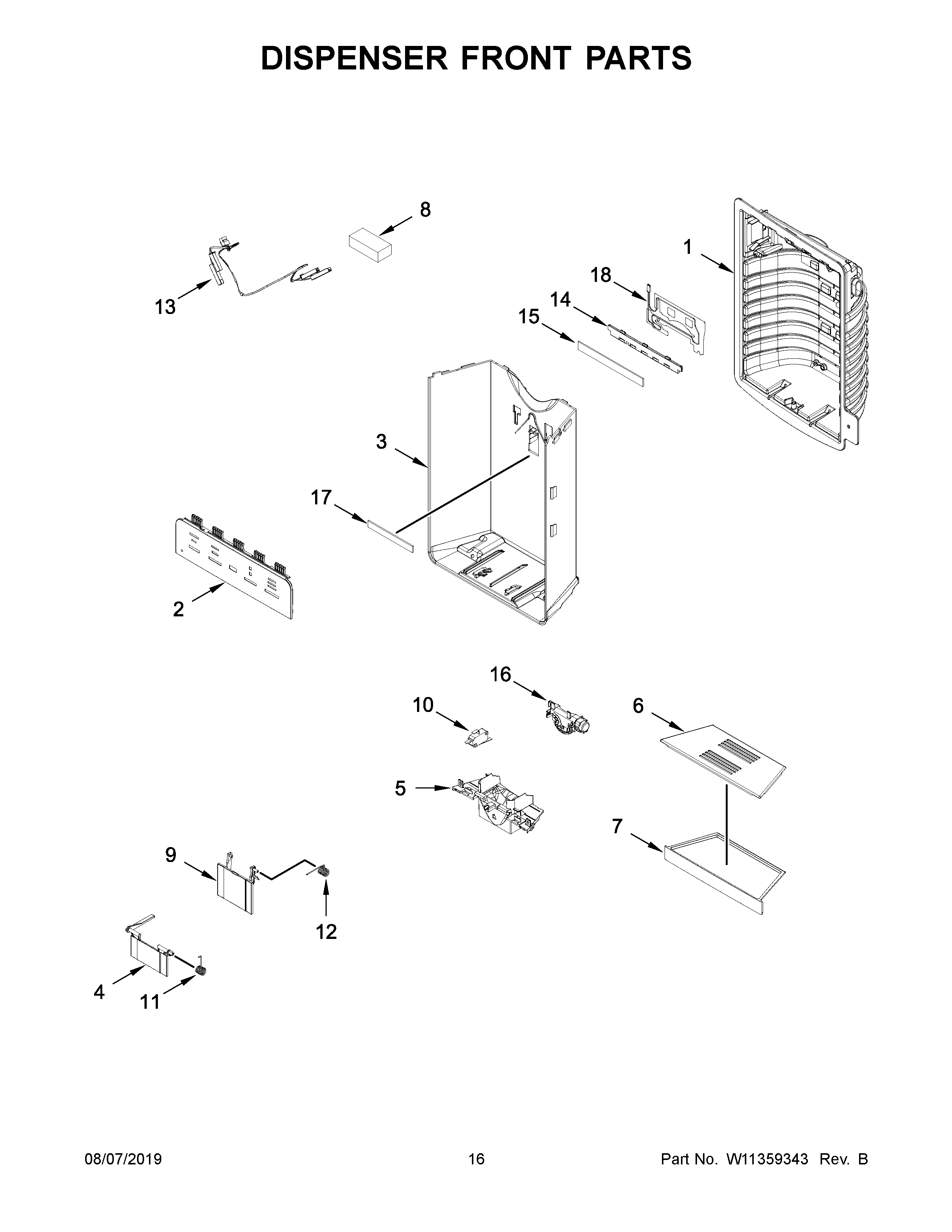

JFFCC72EFS03 09 – DISPENSER FRONT PARTSadmin2025-04-26T09:02:23+00:00JFFCC72EFS03 09 – DISPENSER FRONT PARTS
Products
| Position | Product |
|---|
| 1 | LINER (NOT A SERVICEABLE PART) |
| 2 | MAY W11293316 |
| 3 | WALL, DISPENSER FALSE (GREY) |
| 4 | PADDLE, WATER DISPENSER (CHROME) |
| 5 | SEPERATOR (GREY) |
| 6 | GRATE, DRIP |
| 7 | TRAY, DRIP (GREY) |
| 8 | GASKET, FOAM |
| 9 | PADDLE, ICE DISPENSER (CHROME) |
| 10 | SWITCH, LIMIT |
| 11 | SPRING, TORSION |
| 12 | SPRING, TORSION |
| 13 | ASSEMBLY, PADDLE JUMPER WIRE |
| 14 | BRACKET, USER INTERFACE ADAPTER |
| 15 | GASKET, USER INTERFACE ADAPTER |
| 16 | ASSEMBLY, ICE DOOR MOTOR BRACKET |
| 17 | PAD, SOUND |
| 18 | HEATER, DISPENSER |
