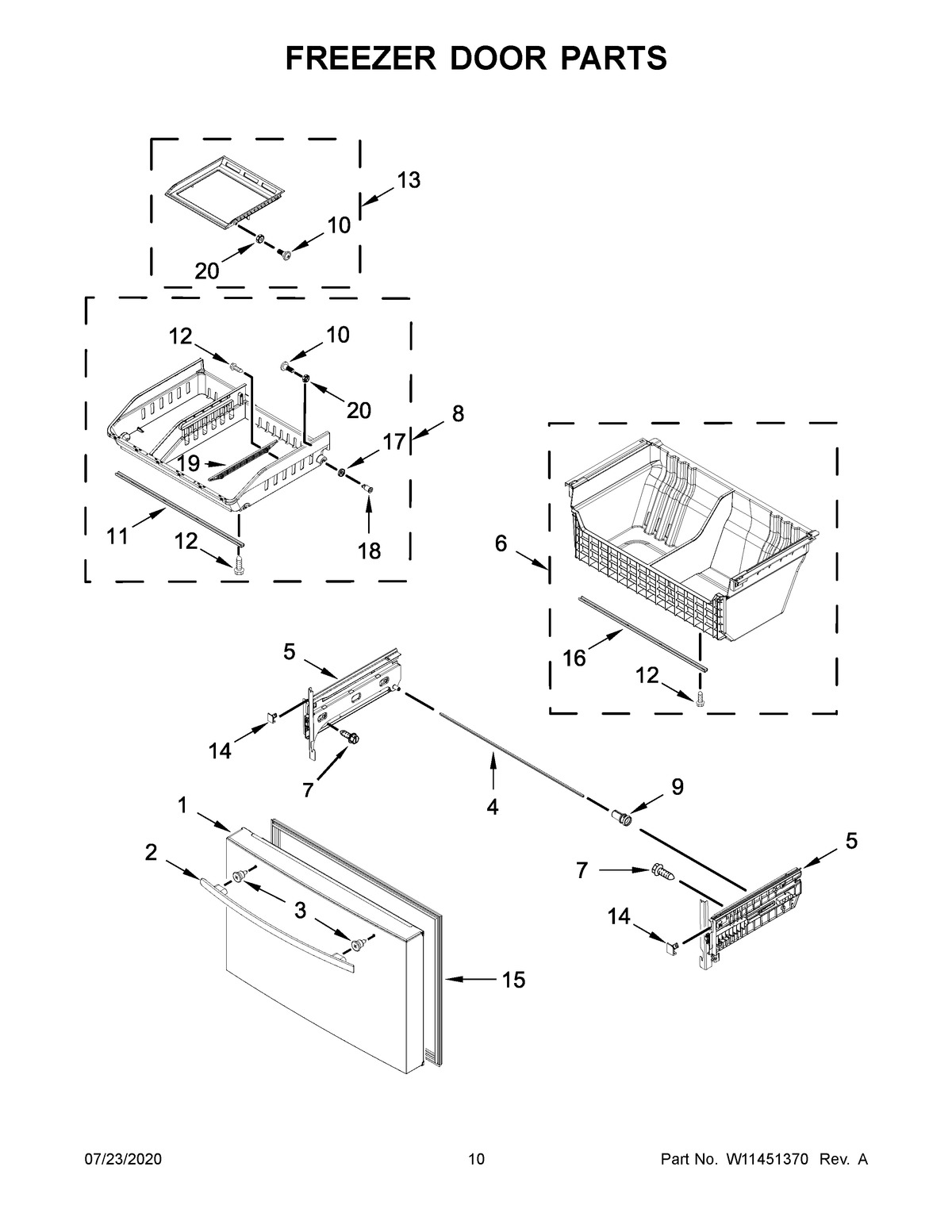

JFFCC72EFS04 06 – FREEZER DOOR PARTS

Products

Position	Product
1	DOOR, FREEZER (INCLUDES DOOR GASKET) (STAINLESS)
2	HANDLE, DOOR (STAINLESS)
3	SCREW
4	SHAFT, RACK
5A	ASSEMBLY, BRACKET (RIGHT HAND)
5	ASSEMBLY, BRACKET (LEFT HAND)
6	ASSEMBLY, BOTTOM PAN
7	SCREW
8	ASSEMBLY, TOP PAN
9	COLLAR, GEAR
10	SCREW
11	SUPPORT, PAN
12	SCREW (STAINLESS)
13	ASSEMBLY, UPPER HALF PAN
14A	STOP, PAN (RIGHT HAND)
14	STOP, PAN (LEFT HAND)
15	GASKET, DOOR (GREY)
16	BAR, SUPPORT
17	ROLLER
18	AXLE, ROLLER
19	RAIL, GUARD
20	ROLLER
