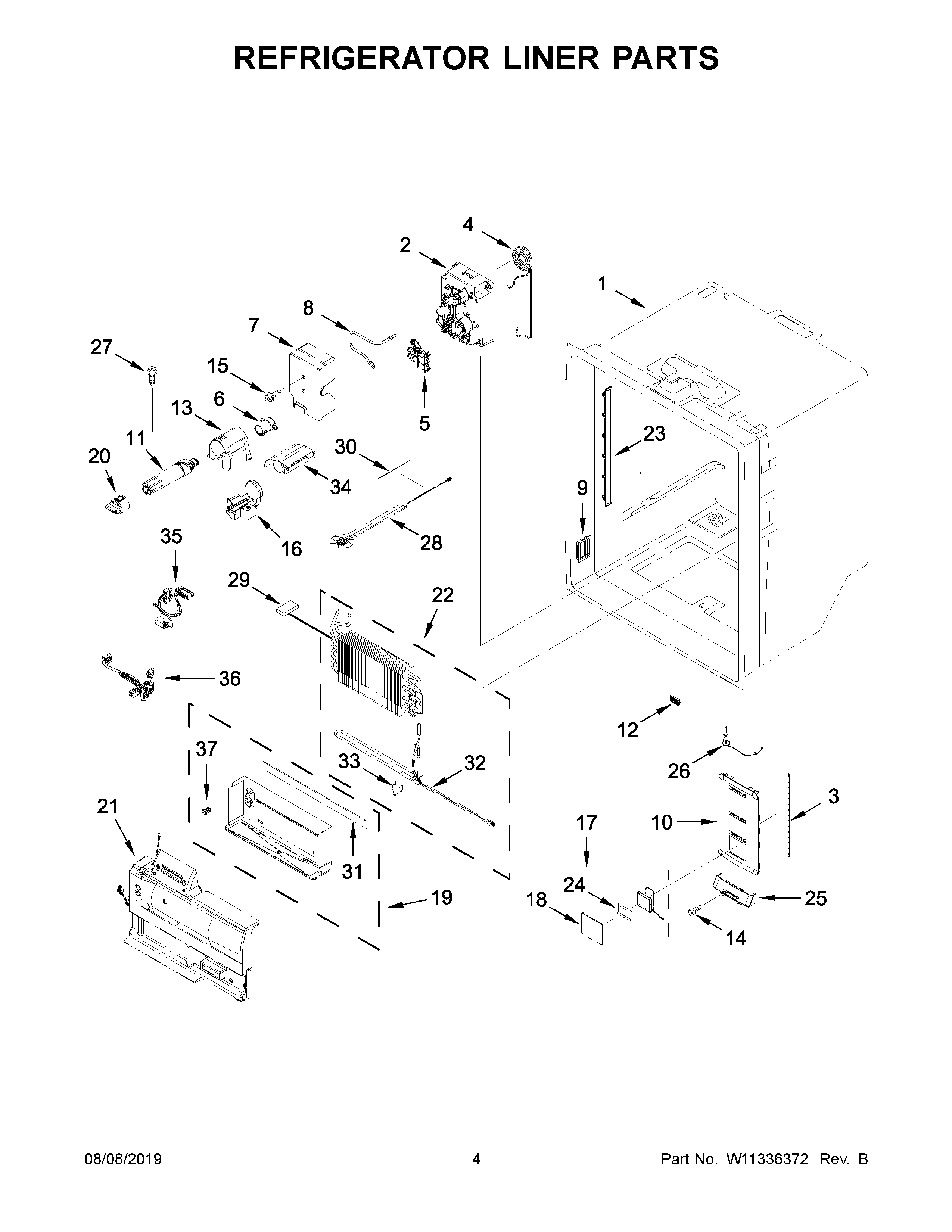

JFFCC72EHL01 03 – REFRIGERATOR LINER PARTS

Products

Position	Product
NI	LINER (NOT A SERVICEABLE PART)
NI	ASSEMBLY, VALVE WIRE
2	HOUSING, WATER TANK
3	STRIP, LED
4	RESERVOIR, WATER
5	VALVE, DUAL WATER
6	HOUSING, WATER FILTER
7	COVER, WATER VALVE
8	TUBE, WATER FILTER
9	COVER, COOLING DUCT
10	MAY W11259419
11	FILTER, WATER
12	FILTER, AIR
13	BRACKET, FILTER
14	SCREW
15	SCREW
16	INSULATION, UNDER FILTER
17	MAY W11302423
18	MAY W11306609
19	ASSEMBLY, HEAT SHIELD
20	CAP, WATER FILTER (GREY)
21	MAY W11318887
22	ASSEMBLY, EVAPORATOR
23	MAY W10921805
24	INSULATOR, FOAM
25	BASE, TOWER COVER
26	HARNESS, AIR TOWER JUMPER
27	Screw (6)
28	HEATER, FILTER
29	GASKET, EVAPORATOR AIR DAM
30	GASKET, SEALING
31	GASKET, HEAT SHIELD
32	HEATER, DEFROST
33	CLIP, EVAPORATOR HEATER
34	MAY W11307147
35	ASSEMBLY, EVAPORATOR JUMPER WIRE
36	ASSEMBLY, MANIFOLD JUMPER WIRE
37	MAY 10623002
