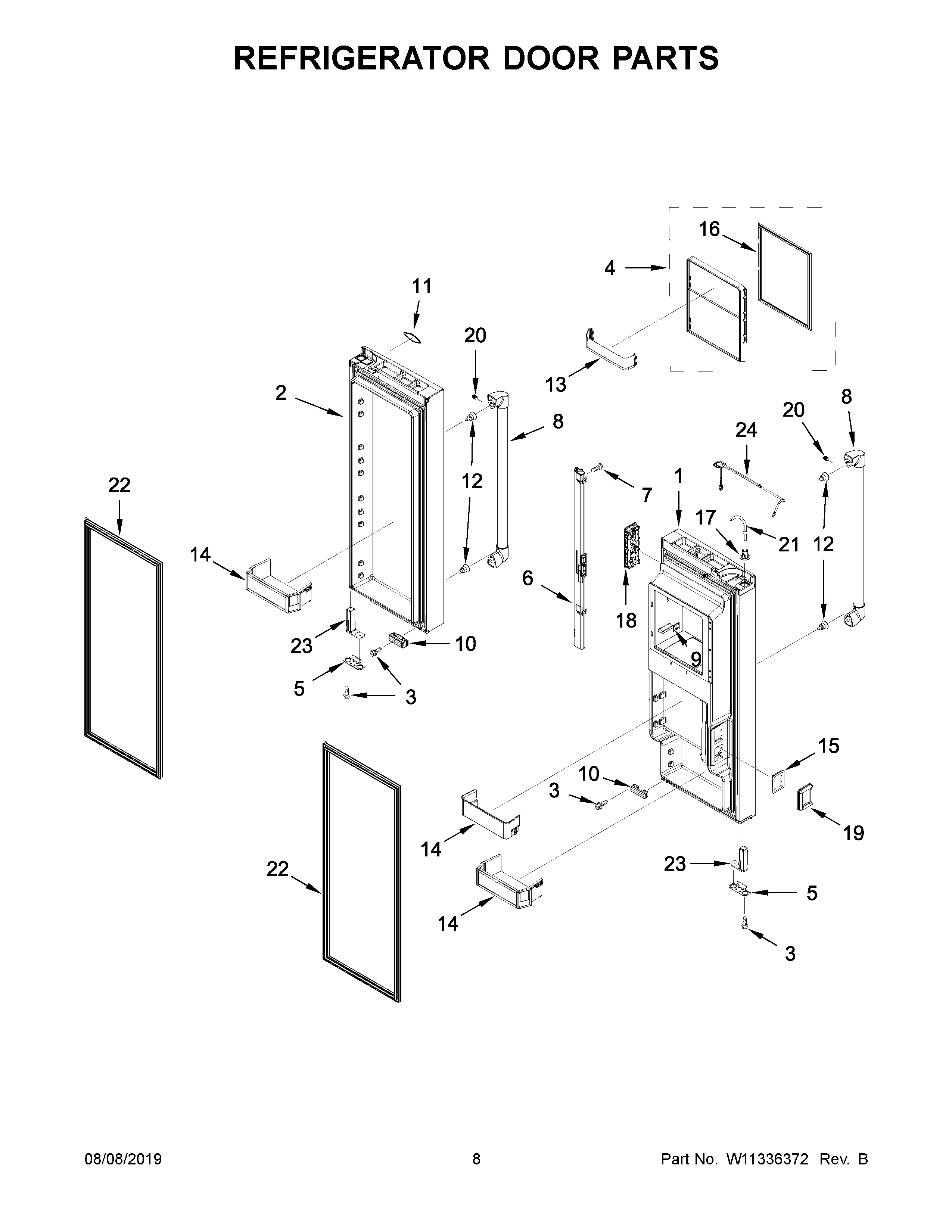

JFFCC72EHL01 05 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1DOOR, REFRIGERATOR LEFT HAND (STAINLESS) (ALSO ORDER ITEM #18)
2DOOR, REFRIGERATOR RIGHT HAND (STAINLESS)
3SCREW
4ASSEMBLY, ICE DOOR
5BRACKET, DOOR STOP
6MULLION, DOOR (GREY)
7MAY 12990204
8MAY W11238822
9SWITCH, ROCKER ARM
10BUMPER, DOOR (GREY)
11ASSEMBLY, BADGE (STAINLESS)
12MAY W10460893
13TRIVET, ICE COMPARTMENT DOOR
14ABIN, DOOR (GALLON)
14BIN, DOOR (MEDIUM)
15BIN, DOOR (RETAINER, DOOR DUCT)
16GASKET, ICE DOOR
17CLIP, TUBE
18ASSEMBLY, USER INTERFACE
19GASKET, COOLING DUCT
20SCREW, SET
21TUBE, WATER
22GASKET, DOOR (GREY)
23CLOSER, DOOR (LEFT HAND)
23ACLOSER, DOOR (RIGHT HAND)
24ASSEMBLY, FILL TUBE (ICEMAKER)
