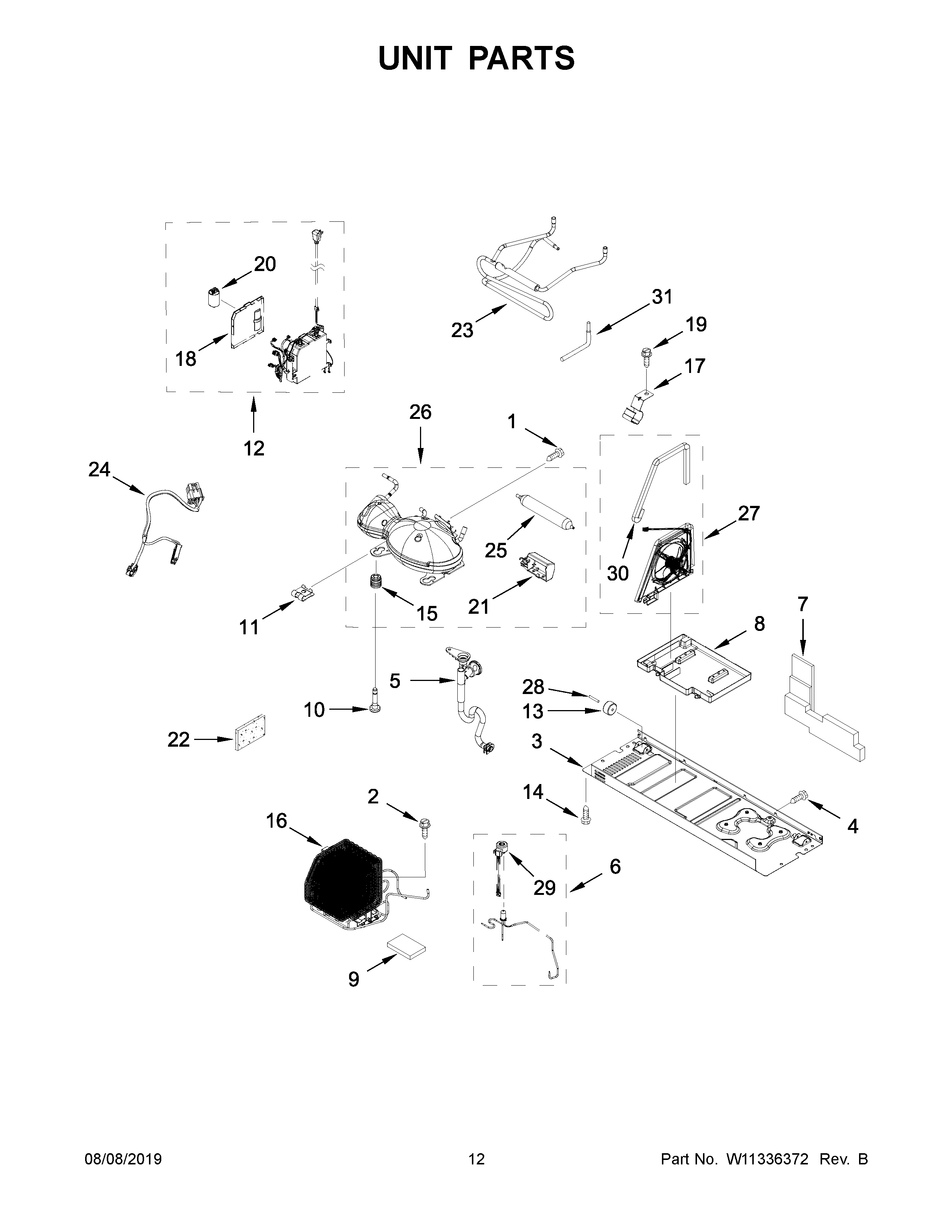

JFFCC72EHL01 07 – UNIT PARTS

Products

Position	Product
NI	Valve, Access (3/4``)
NI	LINER (NOT A SERVICEABLE PART)
NI	MAY 876764
NI	VALVE, ACCESS (1/4``)
NI	Valve, Access (5/16``)
NI	VALVE, ACCESS (3/8``)
NI	Valve, Access (5/8``)
1	SCREW 8-32 X 1/2
2	SCREW
3	BASEPLATE
4	SCREW (10)
5	ASSEMBLY, DRAIN EXTENSION
6	ASSEMBLY, 3 WAY VALVE
7	PAD, SOUND
8	TRAY, EVAPORATOR
9	GROMMET, CONDENSER
10	BOLT
11	CLIP, RETAINING
12	MAY W11317283
13	ROLLER
14	MAY 12992101
15	GROMMET, COMPRESSOR
16	MAY W11199416
17	BRACKET, VALVE
18	MAY W11198954
19	MAY W10141645
20	FILTER, EMI
21	COVER, TERMINAL
22	SEALER, INSULATION
23	MAY W11199420
24	HARNESS, UNIT (CONDENSER FAN)
25	DRIER (SERVICE DRIER WITHOUT DYE)
26	MAY W11393142
27	ASSEMBLY, CONDENSER FAN
28	Axle, Roller (2)
29	COIL, 3 WAY VALVE
30	GASKET, CONDENSER FAN
31	MAY W10735062
