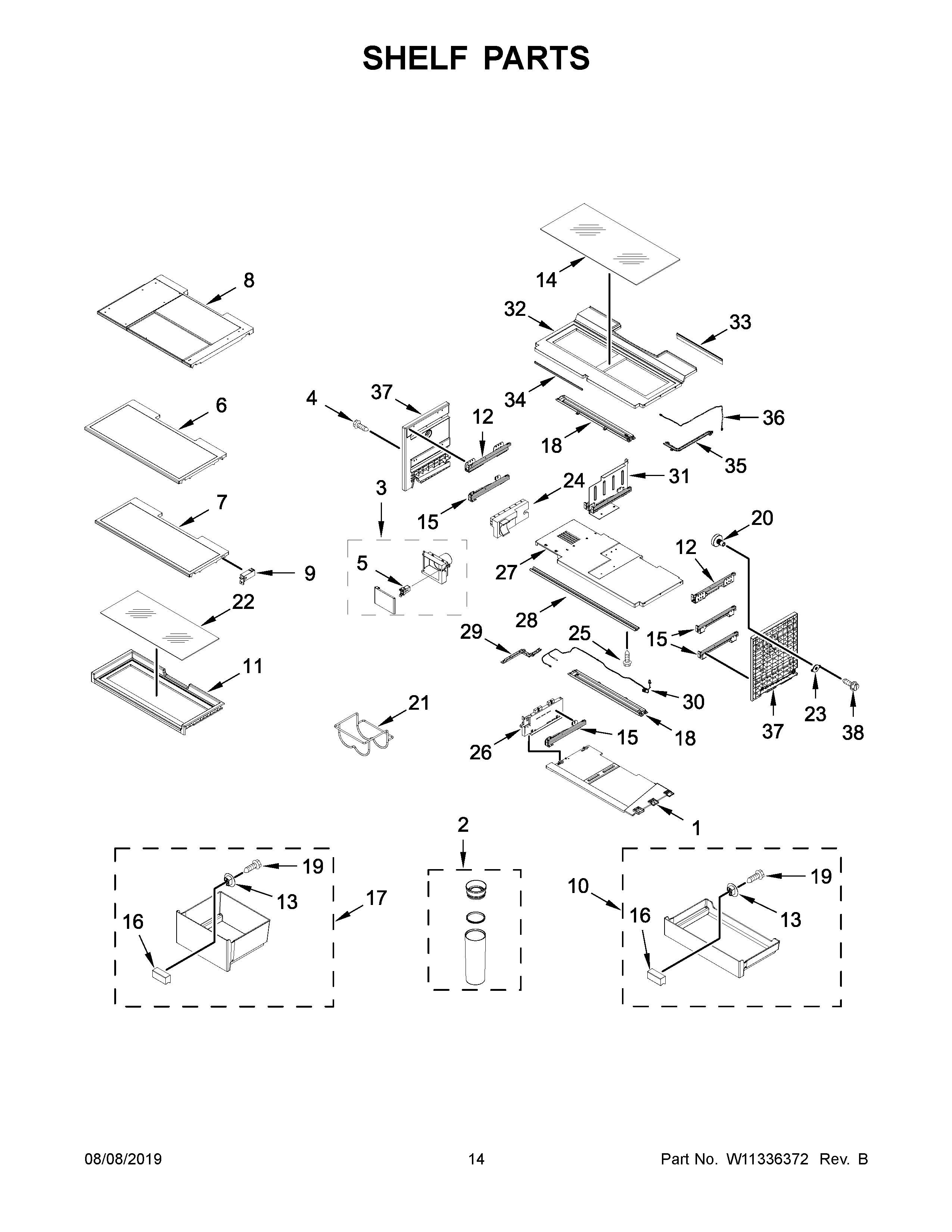

JFFCC72EHL01 08 – SHELF PARTS

Products

Position	Product
1	BASE, PANTRY
2	ASSEMBLY, HERB STORAGE (INCLUDES LID AND GASKET)
3	MAY W11347068
4	SCREW
5	LATCH, PUSH
6	ASSEMBLY, 15" FULL SHELF
7	ASSEMBLY, 15" FULL SHELF
8	ASSEMBLY, TUCK SHELF
9	ASSEMBLY, BLOCK (FRONT LEFT/BACK RIGHT)
9A	ASSEMBLY, BLOCK (FRONT RIGHT/BACK LEFT)
10	PAN, PANTRY
11	ASSEMBLY, PLATTER SHELF
12	GLIDE, PLATTER (LEFT HAND)
12A	GLIDE, PLATTER (RIGHT HAND)
13	SPACER, HANDLE
14	GLASS, CRISPER COVER
15A	GLIDE, CRISPER (RIGHT HAND)
15	GLIDE, CRISPER (LEFT HAND)
16	HANDLE
17	ASSEMBLY, CRISPER PAN
18	MAY W10921807
19	SCREW
20	KNOB, SIDE SUPPORT
21	RACK, WINE
22	GLASS, PLATTER
23	FLANGE, SIDE SUPPORT
24	INSULATION, FILTER HOUSING
25	SCREW
26	SUPPORT, PANTRY
27	COVER, PANTRY
28	BAR, SUPPORT
29	COVER, WIRING HARNESS
30	ASSEMBLY, PANTRY WIRE (INCLUDES THERMISTOR)
31	ASSEMBLY, CENTER SUPPORT
32	FRAME, CRISPER COVER
33	GASKET, CRISPER COVER (REAR)
34	GASKET, CRISPER COVER (FRONT)
35	COVER, WIRING HARNESS
36	JUMPER, CRISPER LED
37	SUPPORT, SIDE (LEFT HAND)
37A	SUPPORT, SIDE (RIGHT HAND)
38	SCREW (GREY)
