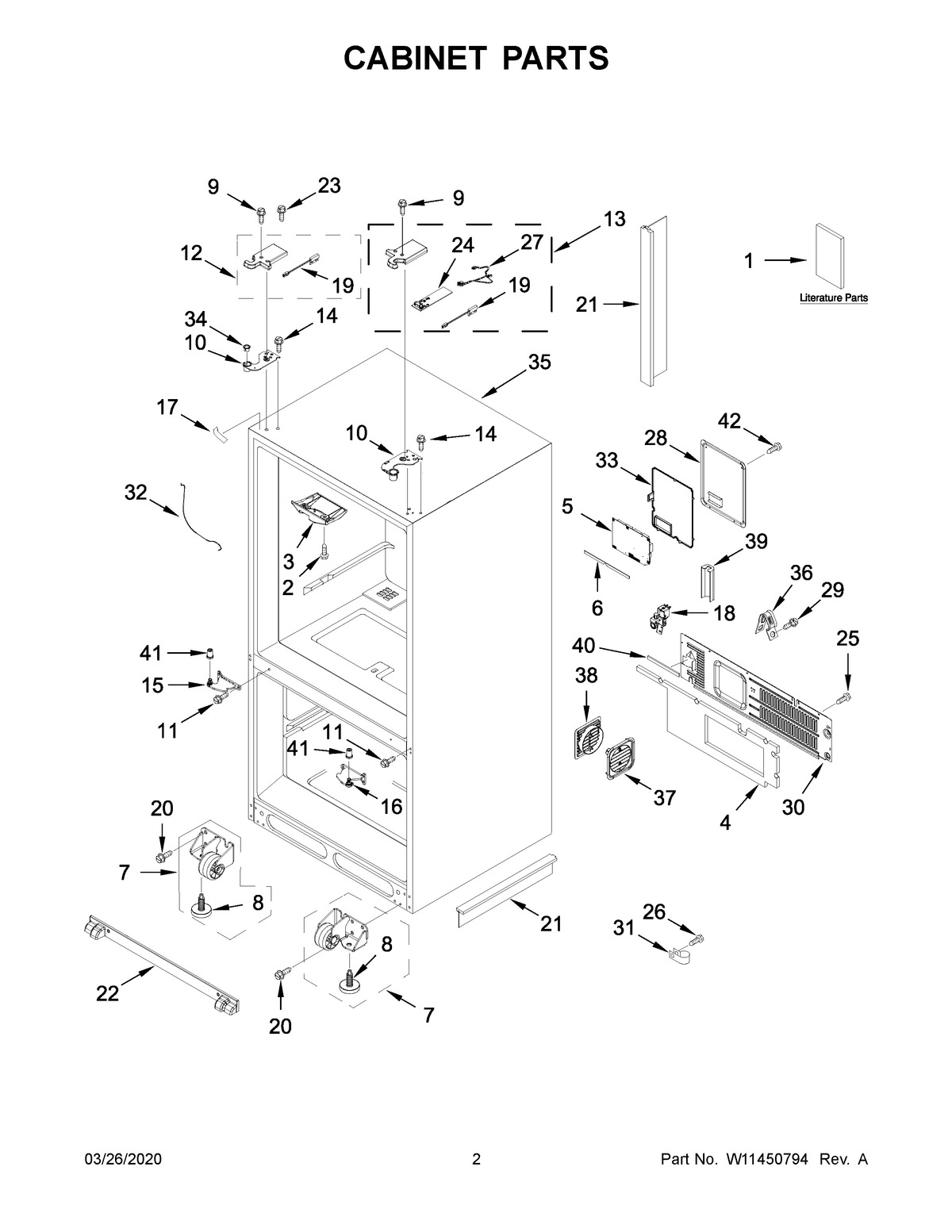

JFFCC72EHL02 02 – CABINET PARTS

Products

Position	Product
1A	MAY W11309660
1C	TECH SHEET (FRENCH)
1B	TECH SHEET (ENGLISH)
1	MAY W11307643
2	Screw (4)
3	BLOCK, PIVOT
4	PAD, SOUND
5	CONTROL, ELECTRONIC
6	GASKET, HV BOX
7A	ASSEMBLY, ROLLER (RIGHT HAND)
7	ASSEMBLY, ROLLER (LEFT HAND)
8	BRAKE, ROLLER
9	Screw (8)
10A	HINGE, TOP (LEFT HAND)
10	HINGE, TOP (RIGHT HAND)
11	MAY W10673840
12	COVER, HINGE LEFT HAND (INCLUDES FOIL) (GREY)
13	COVER, HINGE RIGHT HAND (GREY)
14	SCREW
15	HINGE, CENTER LEFT HAND (GREY)
16	HINGE, CENTER RIGHT HAND (GREY)
17	COVER, CORNER (GREY)
18	VALVE, WATER
19	SWITCH, REED
20	MAY W10709365
21A	DIVIDER, AIR (BOTTOM)
21	DIVIDER, AIR (REAR)
22	GRILLE, TOE (GREY)
23	SCREW
24	WIFI MODULE
26	SCREW (10)
27	ASSEMBLY, JUMPER (WIRE)
28	COVER, CONTROL BOX
29	MAY W10141645
30	COVER, UNIT
31	CLAMP, TUBE
32A	TUBE, DISPENSER WATER (INCLUDES SEAL)
32	TUBE, ICEMAKER WATER (INCLUDES SEAL)
33	LID, HV
34	RETAINER, DOOR
35	LINER (NOT A SERVICEABLE PART)
36	MAY 549193
37	ASSEMBLY, INNER AIR TUNNEL (INCLUDES GASKET) (GREY)
38	ASSEMBLY, OUTER AIR TUNNEL (INCLUDES GASKET) (GREY)
39	GUARD-WATER VALVE
40	GASKET
41	BUSHING
42	SCREW
