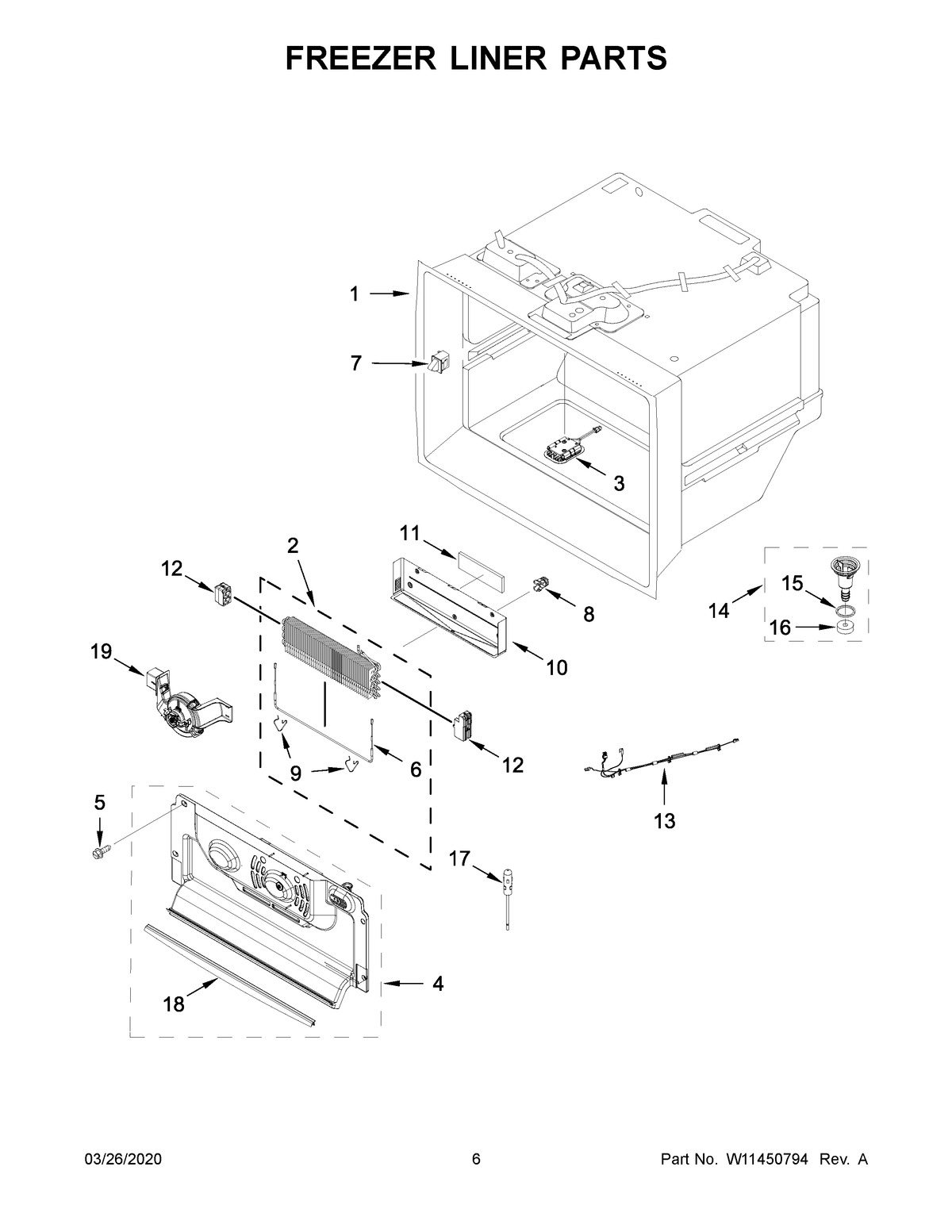

JFFCC72EHL02 04 – FREEZER LINER PARTS

Products

PositionProduct
1LINER (NOT A SERVICEABLE PART)
2ASSEMBLY, EVAPORATOR
3ASSEMBLY, LED LIGHT MODULE
4ASSEMBLY, EVAPORATOR COVER (INCLUDES FAN MOTOR AND WIRE ASSEMBLY)
5SCREW (10)
6HEATER, DEFROST
7MAY W11044241
8MAY 10623002
9CLIP, DEFROST HEATER
10SHIELD, HEAT
11GASKET, DRIP TRAY REAR
12DAM, AIR (LEFT HAND)
12ADAM, AIR (RIGHT HAND)
13ASSEMBLY, EVAPORATOR HEATER WIRE (INCLUDES THERMISTOR)
14ASSEMBLY, DRAIN FUNNEL
15MAY M0500703
16Gasket
17THERMISTOR
18SEAL, CRISP FRONT
19ASSEMBLY, ICEBOX FAN
