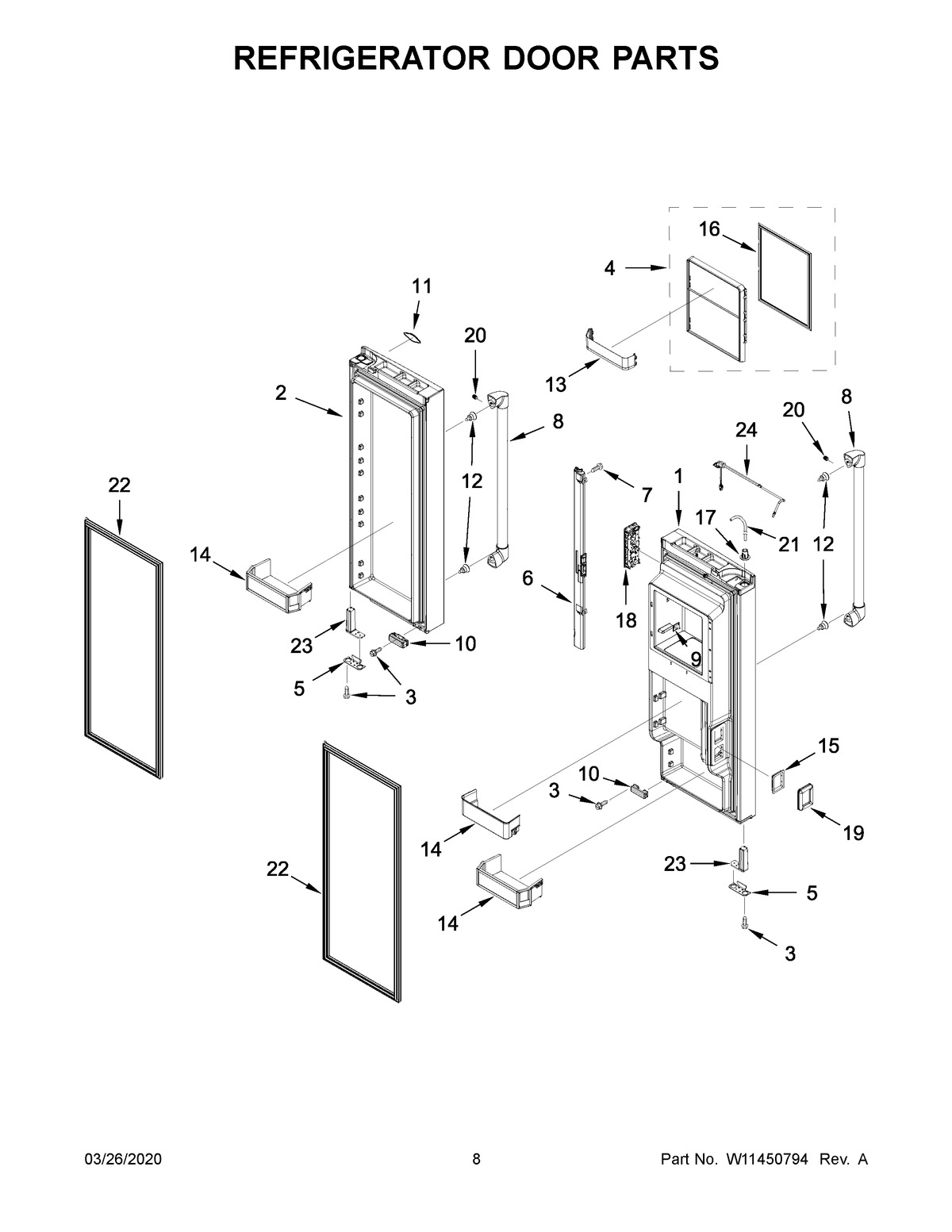

JFFCC72EHL02 05 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	DOOR, REFRIGERATOR LEFT HAND (STAINLESS (ALSO ORDER ITEM #18))
2	DOOR, REFRIGERATOR RIGHT HAND (STAINLESS)
3	SCREW
4	ASSEMBLY, ICE DOOR
5	BRACKET, DOOR STOP
6	MULLION, DOOR (GREY)
7	MAY 12990204
8	MAY W11238822
9	SWITCH, ROCKER ARM
10	BUMPER, DOOR (GREY)
11	ASSEMBLY, BADGE (STAINLESS)
12	SCREW
13	TRIVET, ICE COMPARTMENT DOOR
14	BIN, DOOR (MEDIUM)
14A	BIN, DOOR (GALLON)
15	BIN, DOOR (RETAINER, DOOR DUCT)
16	GASKET, ICE DOOR
17	CLIP, TUBE
18	ASSEMBLY, USER INTERFACE
19	GASKET, COOLING DUCT
20	SCREW, SET
21	TUBE, WATER
22	GASKET, DOOR (GREY)
23	CLOSER, DOOR (LEFT HAND)
23A	CLOSER, DOOR (RIGHT HAND)
24	ASSEMBLY, FILL TUBE (ICEMAKER)
