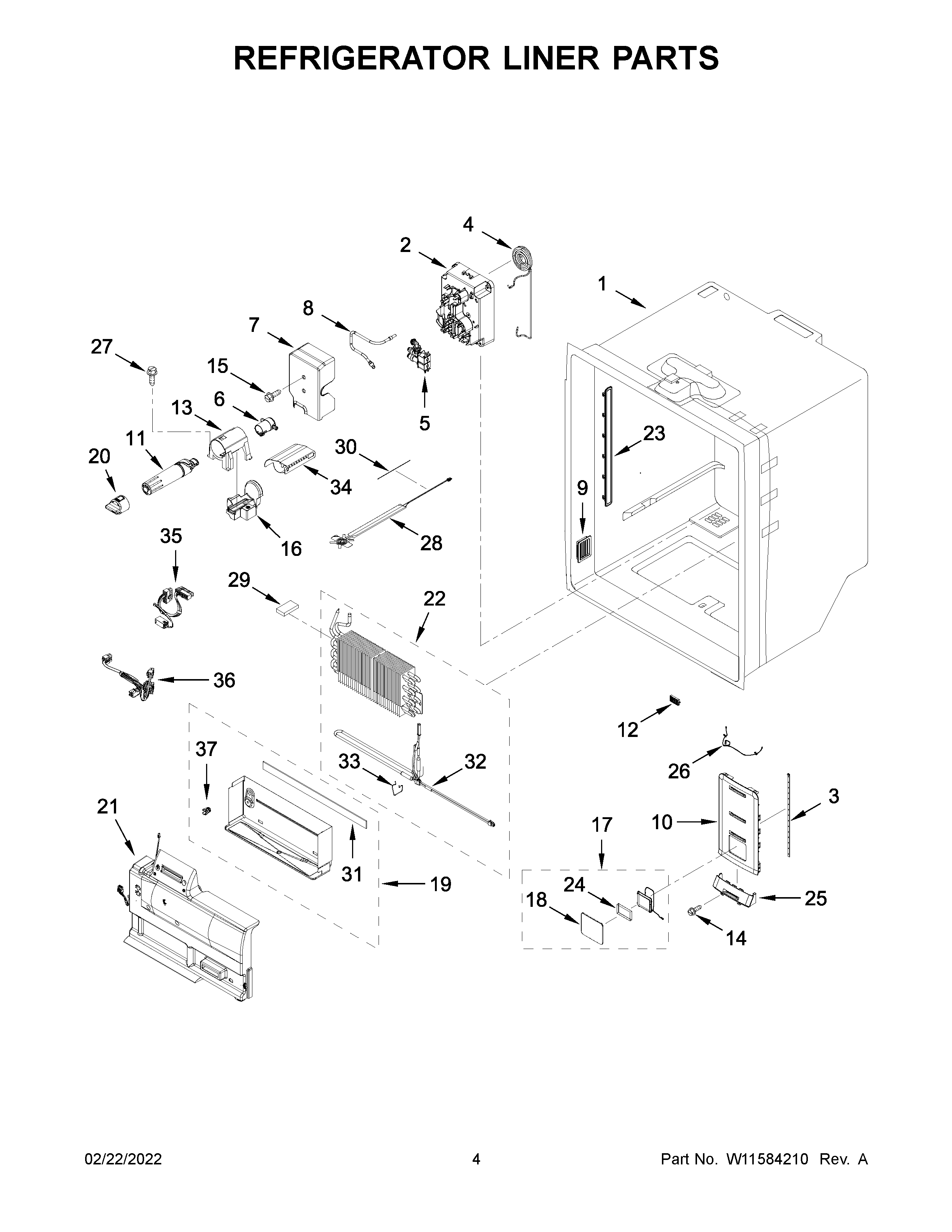

JFFCC72EHL03 03 – REFRIGERATOR LINER PARTS

JFFCC72EHL03 03 – REFRIGERATOR LINER PARTS

Written by

in

JFFCC72EHL03 03 – REFRIGERATOR LINER PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	WPL W11440889
2	W10708473 Whirlpool Refrigerator Housing
3	W10890848 Whirlpool Module
4	W11451365 Whirlpool Refrigerator Reservoir
5	W11567408 Whirlpool Refrigerator Valve
6	W11451366 Whirlpool Refrigerator Housing
7	W10900012 Whirlpool Cover
8	W11727946 Whirlpool Water Tube
9	W10815961 Whirlpool Refrigerator Cover
10	W11259419 Whirlpool Refrigerator Air Tower
11	EDR2RXD1 Whirlpool Everydrop® Water Filter 2 Refrigerator
12	W10311524 Whirlpool FreshFlow Refrigerator Air Filter
13	W11189600 Whirlpool Refrigerator Bracket
14	W10119266 Whirlpool Screw
15	WP67006908 Whirlpool Refrigerator Screw
16	W11348541 Whirlpool Insulation
17	W11302423 Whirlpool Electronic Control Board
18	W11306609 Whirlpool Cover Assembly
19	W11090564 Whirlpool Refrigerator Shield
20	W11679634 Whirlpool Filter Cap
21	W11610998 Whirlpool Evaporator Cover
22A	W11504450 Whirlpool Refrigerator Coupler
22B	COUPLER
22	W11567406 Whirlpool Evaporator Assembly
23	W11649968 Whirlpool Module
24	W10673897 Whirlpool Refrigerator Insulation
25	W11024146 Whirlpool Air Tower
26	W10848895 Whirlpool Refrigerator Wire Harness
27	WP489474 Whirlpool Refrigerator Screw
28	W11024084 Whirlpool Refrigerator Heater
29	W10818463 Whirlpool Refrigerator Gasket
30	W10910632 Whirlpool Refrigerator Sleeve
31	W11159756 Whirlpool Refrigerator Gasket
32	W11567407 Whirlpool Refrigerator Heater
33	CLIP, EVAPORATOR HEATER
34	W11307147 Whirlpool Refrigerator Filter Cover
35	W10911358 Whirlpool Refrigerator Wire Harness
36	W11396537 Whirlpool Refrigerator Wire Harness
37	CLIP, EVAP (2)
