JFFCC72EHL03 04 – FREEZER LINER PARTS

JFFCC72EHL03 04 – FREEZER LINER PARTS

Written by

in

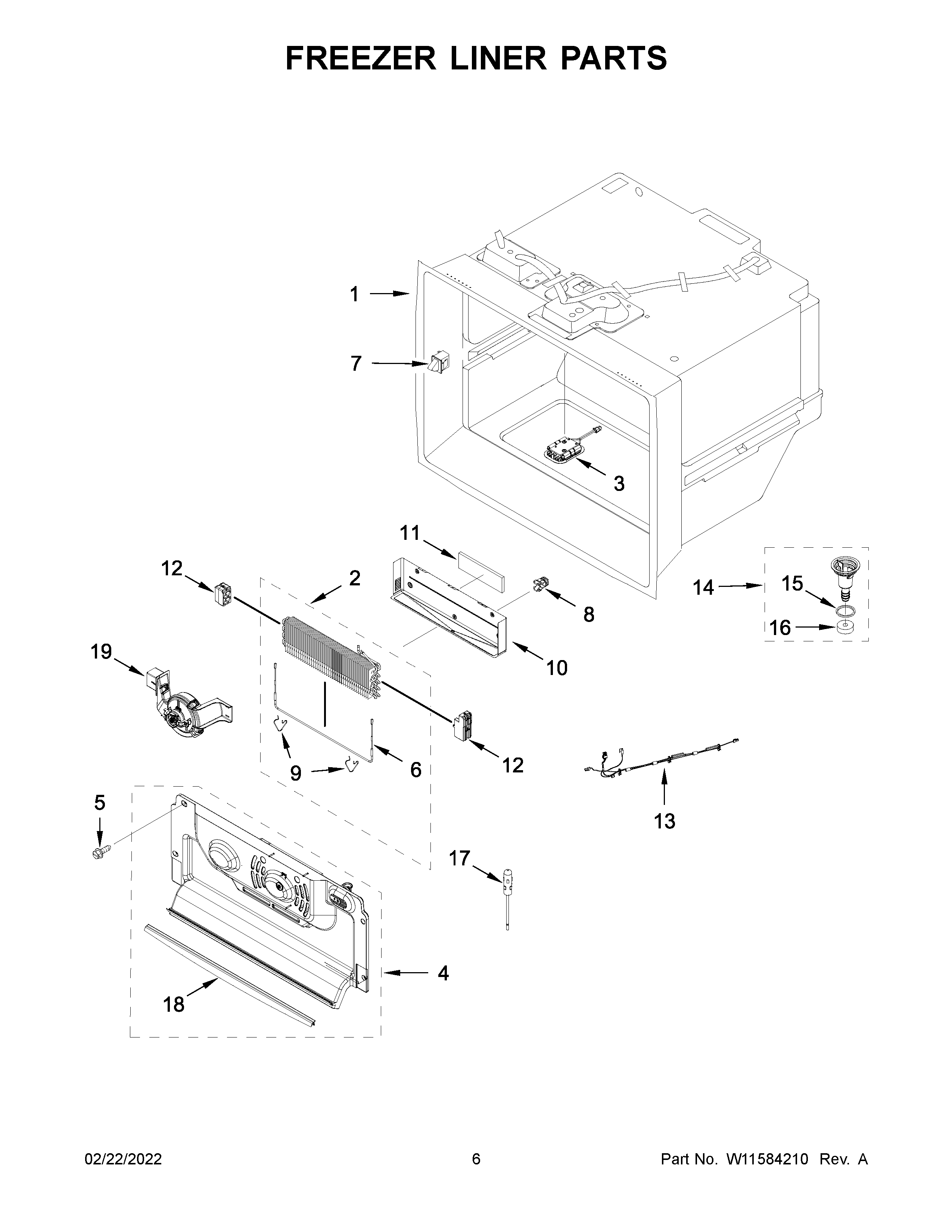

JFFCC72EHL03 04 – FREEZER LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2BW11506620 Whirlpool Refrigerator Coupler
2W11565768 Whirlpool Evaporator
3MODULE
4W11394920 Whirlpool Refrigerator Evaporator Cover
567006425 Whirlpool Refrigerator Screw
6W11384694 Whirlpool Heater
7W11291139 Whirlpool Switch
8CLIP, EVAP (2)
9CLIP, DEFROST HEATER
10W11483266 Whirlpool Shield
11GASKET
12AW10668198 Whirlpool Refrigerator Evaporator Block
12DAM, AIR (LEFT HAND)
13W11715973 Whirlpool Wire Harness
14W10503218 Whirlpool Refrigerator Funnel
15WPM0500703 Whirlpool Refrigerator O-Ring Seal
16WPB8381501 Whirlpool Refrigerator Door Gasket
17THERMISTOR
18W10770923 Whirlpool Refrigerator Gasket
19W11407678 Whirlpool Refrigerator Fan
