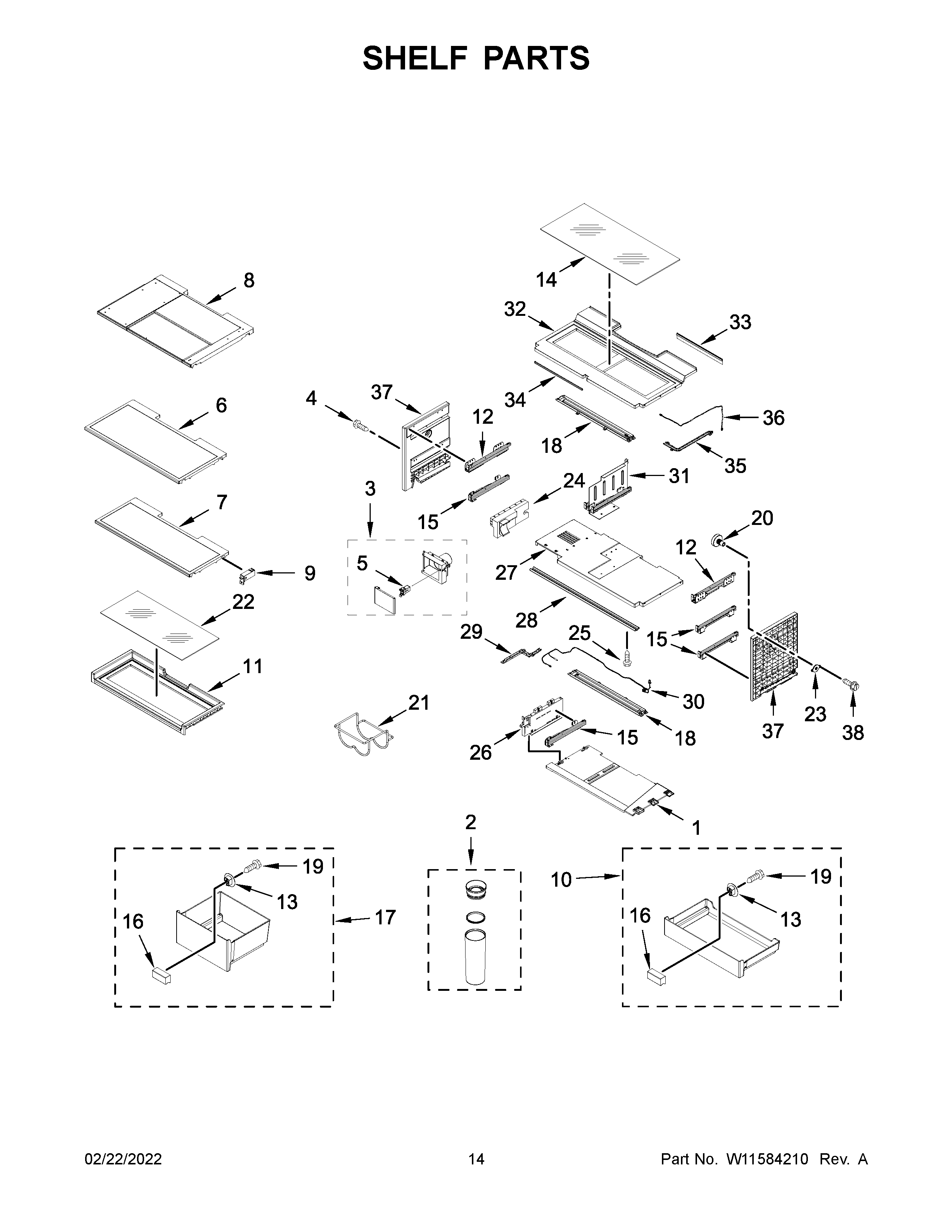

JFFCC72EHL03 08 – SHELF PARTS

Products

Position	Product
1	W11086554 Whirlpool Refrigerator Base
2	W10882409 Whirlpool Refrigerator Herb Tender
3	W11483207 Whirlpool Refrigerator Housing
5	WP2223877 Whirlpool Door Hook
6	W10906768 Whirlpool Refrigerator Glass Shelf
7	W11262315 Whirlpool Refrigerator Glass Shelf
8	W10906770 Whirlpool Refrigerator Glass Shelf
9	W10817923 Whirlpool Refrigerator Shelf Stud
9A	W10817924 Whirlpool Refrigerator Shelf Stud
10	W10794366 Whirlpool Utility Pan
11	W11289961 Whirlpool Frame
12	W10816004 Whirlpool Refrigerator Glide
12A	W10814864 Whirlpool Refrigerator Glide
13	W10663641 Whirlpool Refrigerator Spacer
14	W10887837 Whirlpool Refrigerator Glass Shelf
15	W10816002 Whirlpool Refrigerator Glide
15A	W10814859 Whirlpool Refrigerator Glide
16	HANDLE
17	W10794361 Whirlpool Refrigerator Crisper Pan
18	ASSEMBLY, LIGHT
19	SCREW
20	W10840921 Whirlpool Refrigerator Support
21	W10837214 Whirlpool Wine Rack
22	GLASS, PLATTER
23	FLANGE, SIDE SUPPORT
24	W11084829 Whirlpool Refrigerator Insulation
25	W10847999 Whirlpool Refrigerator Screw
26	SUPPORT, PANTRY
27	W11086555 Whirlpool Refrigerator Cover
28	W10814884 Whirlpool Support
29	COVER, WIRING HARNESS
30	W11744510 Whirlpool Wire Harness
31	W10794337 Whirlpool Refrigerator Support
32	W11086556 Whirlpool Refrigerator Frame
33	W10794336 Whirlpool Refrigerator Gasket
34	W10794242 Whirlpool Gasket Assembly
35	W10854845 Whirlpool Appliance Cover
36	W10835866 Whirlpool Wire Harness
37	SUPPORT, SIDE (LEFT HAND)
37A	W10794320 Whirlpool Support
38	SCREW (GREY)
