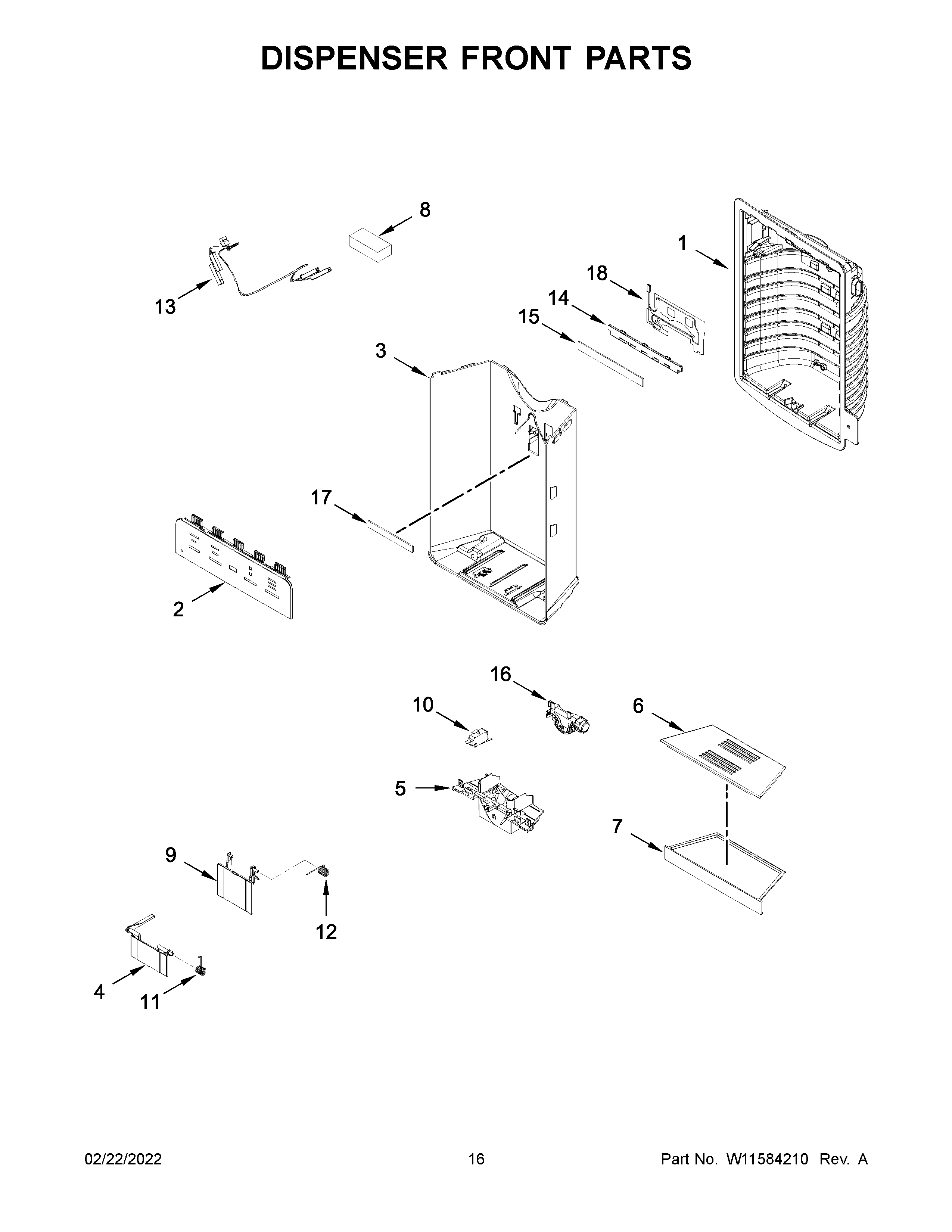

JFFCC72EHL03 09 – DISPENSER FRONT PARTS

JFFCC72EHL03 09 – DISPENSER FRONT PARTS

Written by

in

JFFCC72EHL03 09 – DISPENSER FRONT PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2W11585970-includeCORE Whirlpool W11585970 Refrigerator UI Panel with Core
3W10792144 Whirlpool Refrigerator Shield
4W11679631 Whirlpool Pad
5W11048097 Whirlpool Refrigerator Ice Door
6W10848267 Whirlpool Refrigerator Grille
7W10905360 Whirlpool Refrigerator Drip Tray
8W10882291 Whirlpool Refrigerator Gasket
9W10792149 Whirlpool Refrigerator Shelf Pad
10W11087492 Whirlpool Refrigerator Water Dispenser Switch
11W10672578 Whirlpool Refrigerator Spring
12W11109505 Whirlpool Refrigerator Spring
13W10704135 Whirlpool Refrigerator Wire Harness
14W10757499 Whirlpool Refrigerator Bracket
15W10696713 Whirlpool Refrigerator Door Gasket
16W11189145 Whirlpool Refrigerator Ice Door
17W10663699 Whirlpool Refrigerator Gasket
18W10752689 Whirlpool Refrigerator Heater
