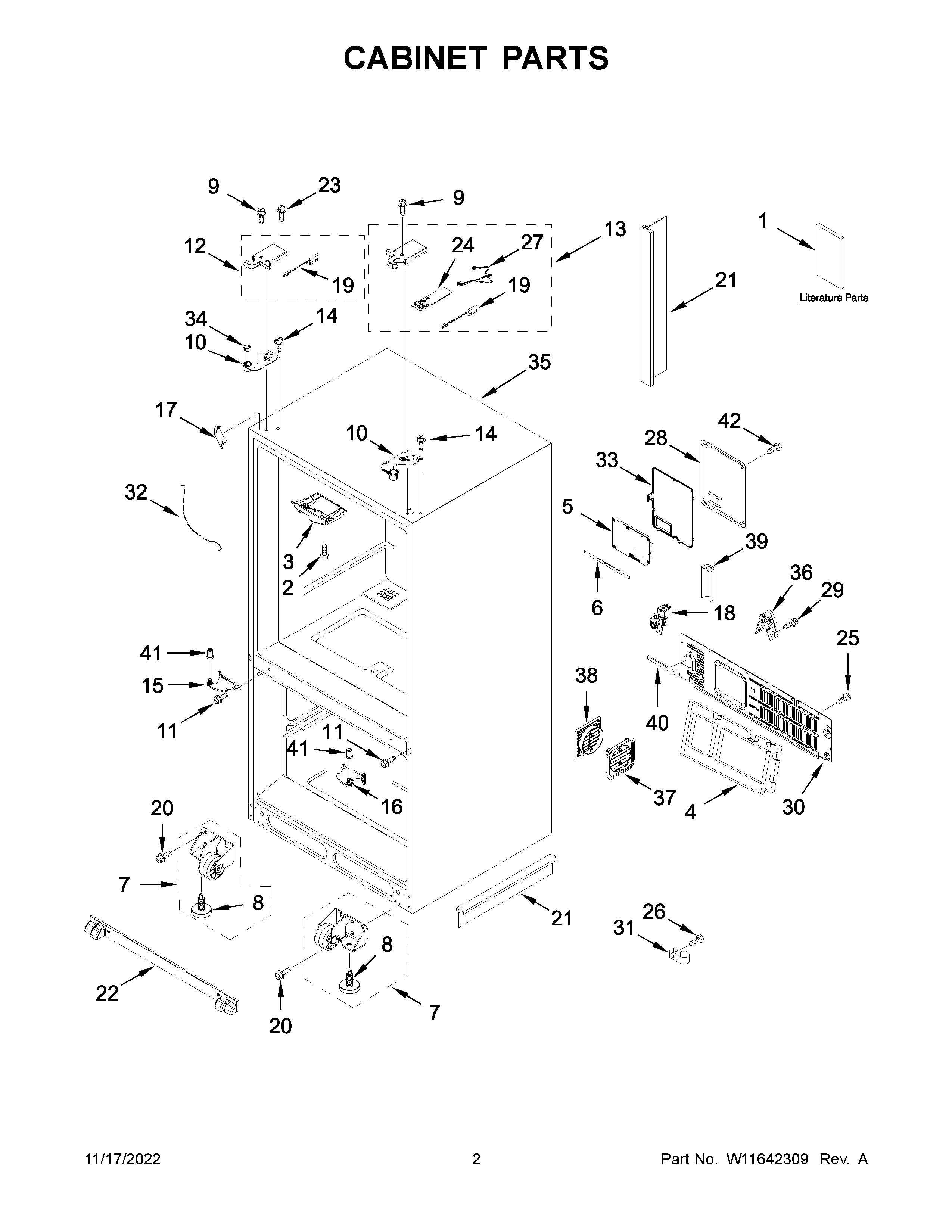

JFFCC72EHL04 02 – CABINET PARTS

JFFCC72EHL04 02 – CABINET PARTS

Written by

in

JFFCC72EHL04 02 – CABINET PARTS

Products

PositionProduct
1TECH SHEET, OWNERS MANUAL
1AENERGY GUIDE
1BTECH SHEET (ENGLISH)
1CTECH SHEET (FRENCH)
2W10854958 Whirlpool Refrigerator Screw
3W10840311 Whirlpool Pivot Block
4W11688554 Whirlpool Insulation
5W11664342-includeCORE Whirlpool W11664342 Electronic Control Board with Core
6W10415341 Whirlpool Refrigerator Gasket
7ROLLER-CAB
7AROLLER-CAB
8W10846099 Whirlpool Refrigerator Leveler
9WP98165 Whirlpool Screw
10W11032620 Whirlpool Refrigerator Door Hinge
10AW11032616 Whirlpool Refrigerator Door Hinge
11W11573362 Whirlpool Screw Assembly
12W11574772 Whirlpool Cover
13W11649816 Whirlpool Cover
14W11126052 Whirlpool Screw Assembly
15W10816322 Whirlpool Refrigerator Door Hinge
16W10816323 Whirlpool Refrigerator Door Hinge
17W10868482 Whirlpool Cover
18W11567335 Whirlpool Refrigerator Valve
19SWITCH, REED
2067006564 Whirlpool Refrigerator Screw
21ADIVIDER, AIR (REAR (SHORT))
21BW10878920 Whirlpool Refrigerator Divider
21DIVIDER, AIR (REAR)
22W10887787 Whirlpool Refrigerator Front Grille
23W11214483 Whirlpool Refrigerator Screw
24W11111702 Whirlpool Electronic Control Board
2667006425 Whirlpool Refrigerator Screw
27ASSEMBLY, HINGE WIRE
28W10754144 Whirlpool Refrigerator Cover
29SCREW
30W11502635 Whirlpool Back Cover
31W11456069 Whirlpool Refrigerator Clamp
32W11518273 Whirlpool Tube
32AW11391304 Whirlpool Refrigerator Water Tube
33W10768379 Whirlpool Refrigerator Cover
34W10705239 Whirlpool Refrigerator Grommet
35549193 Whirlpool Refrigerator Power Clamp
36CABINET (NOT A SERVICEABLE PART)
37WPL W10838745
38WPL W10838744
39W10208592 Whirlpool Refrigerator Valve Cover
40WPL W11243631
41W11223833 Whirlpool Refrigerator Hinge Bushing
42W11686675 Whirlpool Screw
