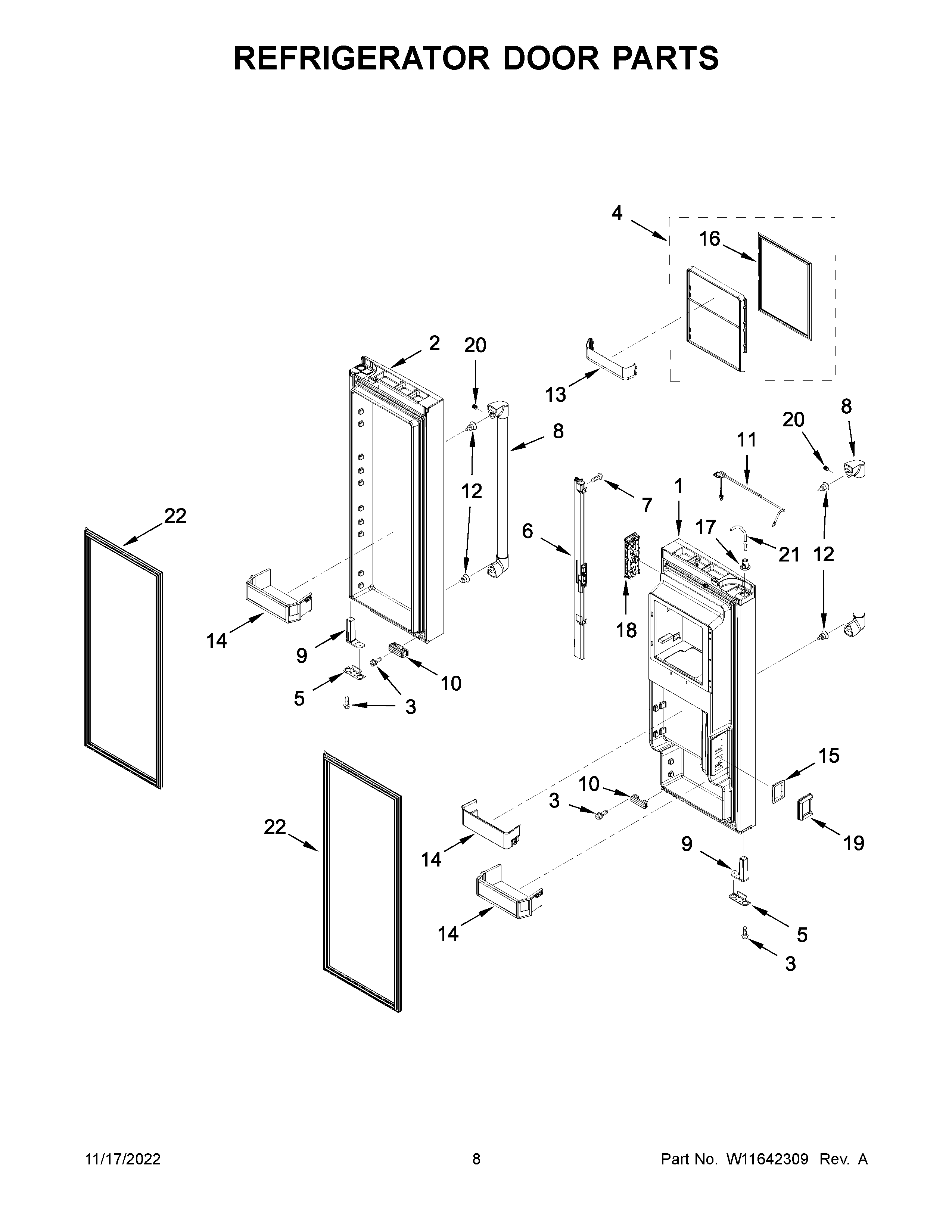

JFFCC72EHL04 05 – REFRIGERATOR DOOR PARTS

JFFCC72EHL04 05 – REFRIGERATOR DOOR PARTS

Written by

in

JFFCC72EHL04 05 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1W11610988 Whirlpool Door Assembly
2W10849511 Whirlpool Refrigerator Door Assembly
4W11594926 Whirlpool Ice Door
5W11243377 Whirlpool Refrigerator Door Stop
6W11649966 Whirlpool Mullion Rail
7W11311945 Whirlpool Refrigerator Screw
8W11254134 Whirlpool Refrigerator Handle
9AW11188796 Whirlpool Refrigerator Closer
9W11163783 Whirlpool Refrigerator Closer
10W10798308 Whirlpool Refrigerator Door Bumper
11CABINET (NOT A SERVICEABLE PART)
12W11449276 Whirlpool Handle Support
13W10887799 Whirlpool Trivet
14AW10793381 Whirlpool Refrigerator Cantilever Bin
14W10816355 Whirlpool Refrigerator Cantilever Bin
15W10834283 Whirlpool Refrigerator Retainer
16W11714865 Whirlpool Gasket
17W11315303 Whirlpool Refrigerator Clip
18W11585971 Whirlpool Refrigerator UI Panel + Core
19W10828417 Whirlpool Refrigerator Gasket
20W10907991 Whirlpool Screw
21W11518276 Whirlpool Refrigerator Water Tube
22W10917313 Whirlpool Refrigerator Door Gasket
