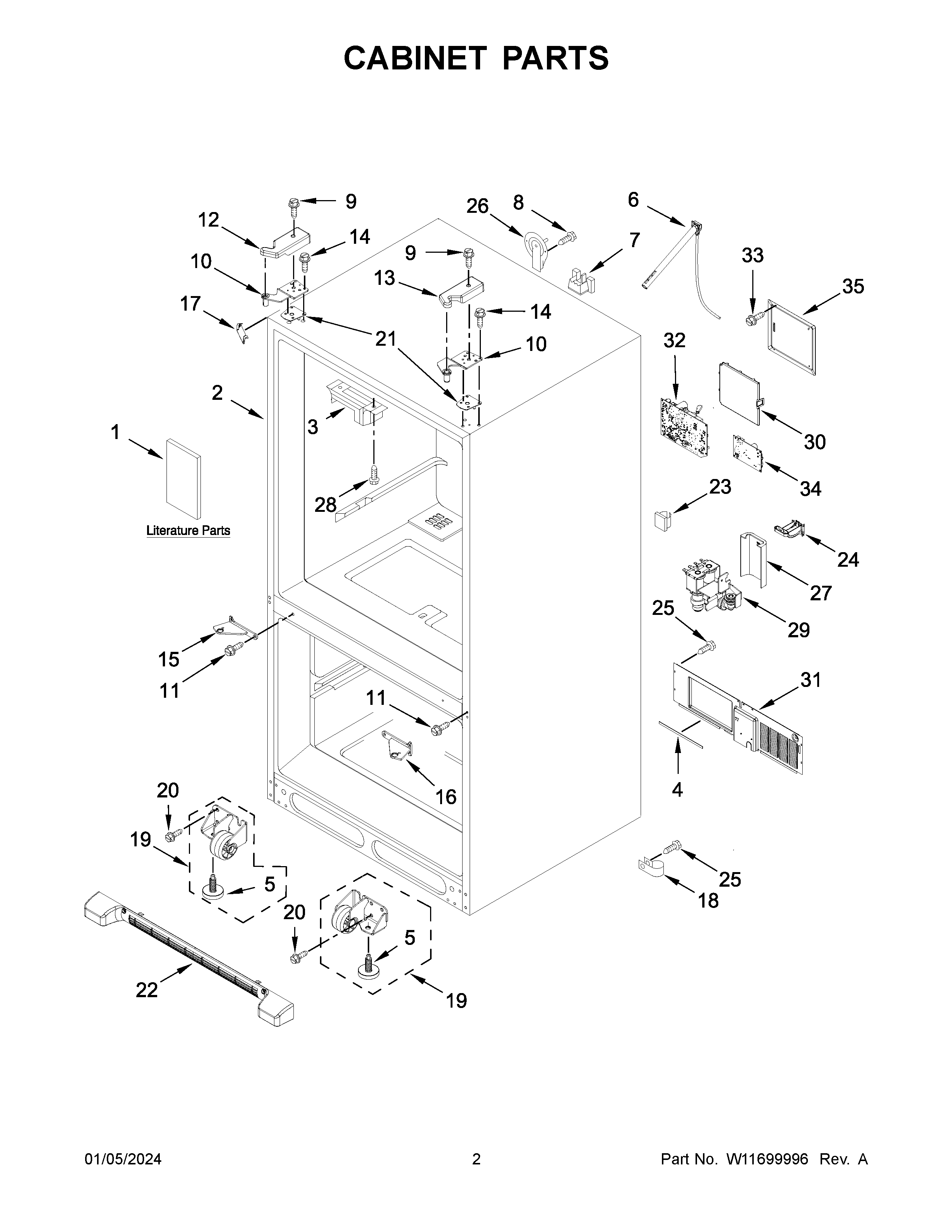

JFFCF72DKM00 02 – CABINET PARTS

JFFCF72DKM00 02 – CABINET PARTS

Written by

in

JFFCF72DKM00 02 – CABINET PARTS

Products

PositionProduct
1BENERGY GUIDE
1AUSE AND CARE GUIDE
1TECH SHEET
2CABINET (NOT A SERVICABLE PART)
3W11024160 Whirlpool Refrigerator Breaker Trim
4W11534848 Whirlpool Gasket
5WPW10141622 Whirlpool Leveler
6W11181718 Whirlpool Refrigerator Water Tube
7W11686793 Whirlpool Block
8WP98165 Whirlpool Screw
912992603 Whirlpool Refrigerator Screw
10W10892768 Whirlpool Refrigerator Door Hinge
10AW10210891 Whirlpool Refrigerator Door Hinge
11W11573362 Whirlpool Screw Assembly
12W11039391 Whirlpool Cover Assembly
13WPW10120103 Whirlpool Refrigerator Cover
14WP489349 Whirlpool Refrigerator Screw
15W10861742 Whirlpool Refrigerator Door Hinge
16HINGE-DOOR
17WP12587703AP Whirlpool Refrigerator Filler
18W11456069 Whirlpool Refrigerator Clamp
19WPW10515763 Whirlpool Refrigerator Cabinet Roller
19AWPW10515762 Whirlpool Refrigerator Cabinet Roller
2067006564 Whirlpool Refrigerator Screw
21A12999502 Whirlpool Refrigerator Hinge Shim
2112999501 Whirlpool Refrigerator Hinge Shim
22WPW10534155 Whirlpool Refrigerator Kickplate Grille Gray
23WPM0104106 Whirlpool Refrigerator Clip
24W10528513 Whirlpool Tube Clamp
25SCREW
2612726003 Whirlpool Refrigerator Water Cover
27W10208593 Whirlpool Refrigerator Valve Cover
28W11693756 Whirlpool Screw Assembly
29W11524655 Whirlpool Refrigerator Valve
30W10296541 Whirlpool Refrigerator Wire Cover
31WPW10211855 Whirlpool Refrigerator Back Cover
32WPW10120827 Whirlpool Dryer Electronic Control Board + Core
33W11686675 Whirlpool Screw
34WPW10356039-includeCORE Whirlpool WPW10356039 Refrigerator Electronic Control Board + Core
3512961602 Whirlpool Refrigerator Wire Cover
