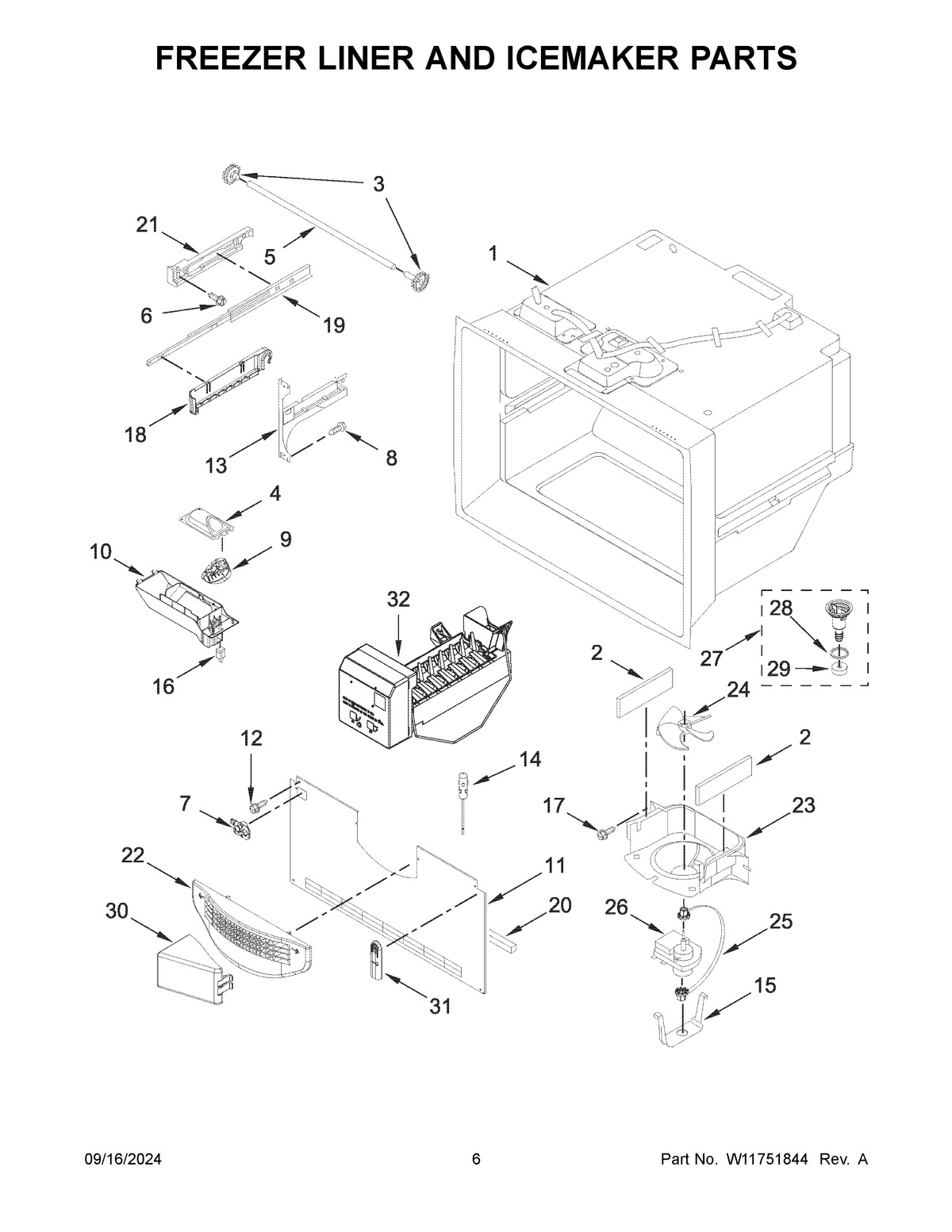

JFFCF72DKM01 04 – FREEZER LINER AND ICEMAKER PARTS

Products

Position	Product
NI	W10196195 Whirlpool Refrigerator Wire Harness
NI	FOLLOWING PARTS NOT ILLUSTRATED
1	LINER (NOT A SEVICEABLE PART)
2	W10856123 Whirlpool Refrigerator Gasket
3	12002497 Whirlpool Refrigerator Drawer Gear Kit
4	W11702858 Whirlpool Housing
5	W11028221 Whirlpool Refrigerator Shaft
6	WP489474 Whirlpool Refrigerator Screw
7	GUIDE, FILL TUBE
9	MODULE
10	W11712699 Whirlpool Housing
11	COVER, EVAPORATOR
12	67006425 Whirlpool Refrigerator Screw
13A	WPW10330995 Whirlpool Refrigerator Bracket
13	WPW10330994 Whirlpool Refrigerator Bracket
14	W10316760 Whirlpool Thermistor Kit
15	CLIP, EVAPORATOR MOTOR
16	W11396033 Whirlpool Refrigerator Rocker Switch
17	WP98165 Whirlpool Screw
18A	W10119849 Whirlpool Refrigerator Bracket Assembly
18	W10119848 Whirlpool Refrigerator Bracket
19	W11658403 Whirlpool Slide
20	W11159728 Whirlpool Refrigerator Gasket
21	WPW10544403 Whirlpool Refrigerator Bracket
21A	WPW10544404 Whirlpool Refrigerator Bracket
22	WPW10175909 Whirlpool Grille Assembly
23	WPW10167023 Whirlpool Refrigerator Shroud
24	WP2169142 Whirlpool Fan Blade
25	W10121318 Whirlpool Refrigerator Grommet
26	WPW10128551 Whirlpool Evaporator Fan Motor
27	W10815413 Whirlpool Refrigerator Funnel
28	WPM0500703 Whirlpool Refrigerator O-Ring Seal
29	WPB8381501 Whirlpool Refrigerator Door Gasket
30	W10157765 Whirlpool Refrigerator Deflector
31	WP67003924 Whirlpool Refrigerator Cover
32	W11692158 Whirlpool Ice Maker Assembly
