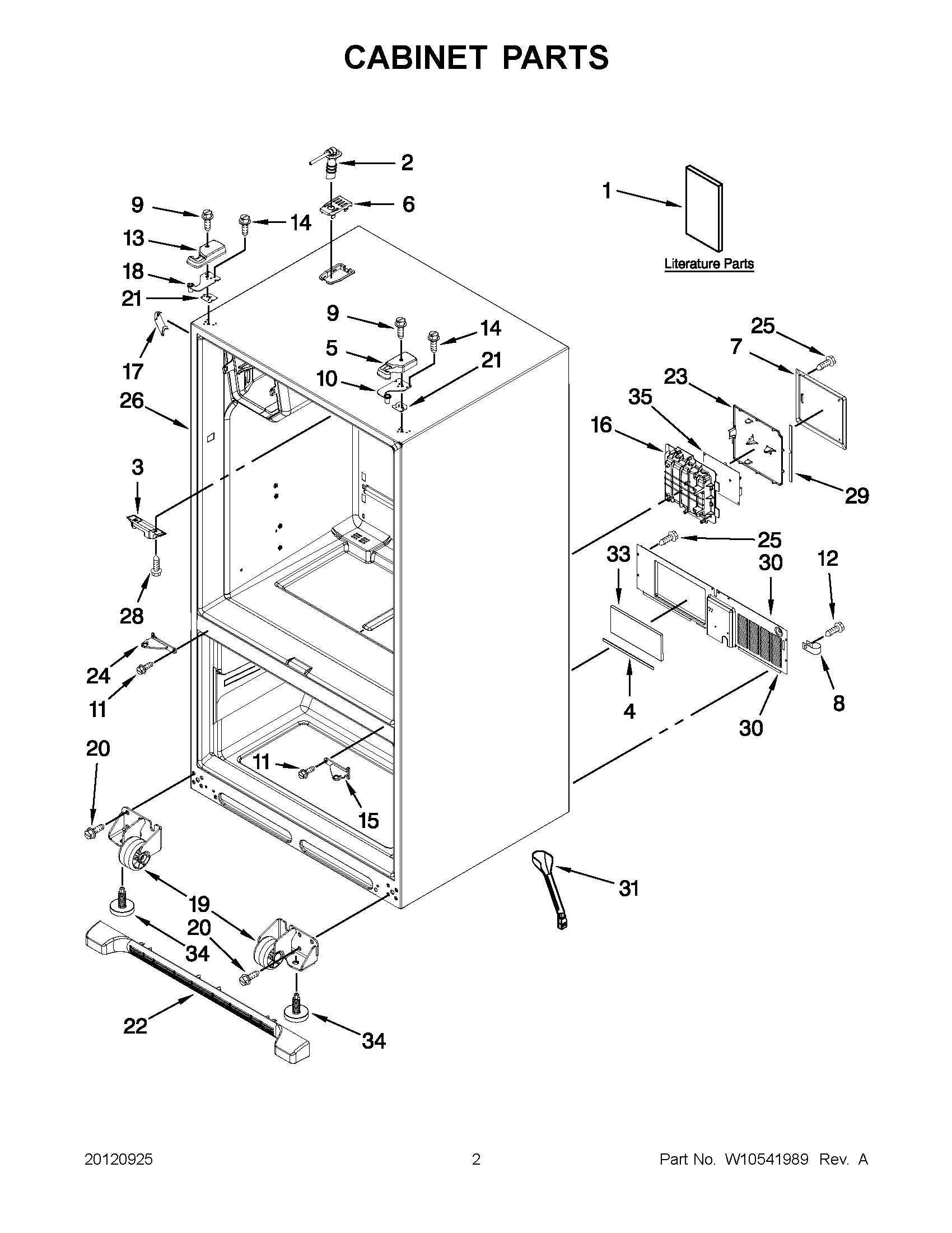

JFI2089AEP12 01 – CABINET PARTS

Products

Position	Product
1	MAY W10476808
1	MAY W10329369
1	MAY W10202395
2	Tube W/Waterline, Fill-IM
3	Block, Pivot
4	MAY B5759655
5	MAY 12962302B
6	MAY 12981401B
7	MAY 12961602
8	CLAMP, TUBE
9	MAY 12992602
10	MAY 12963205ED
11	MAY W10339086
12	SCREW (10)
13	COVER, TOP HINGE LEFT HAND (INCLUDES FOIL) (BLACK)
14	SCREW (6)
15	HINGE, CENTER (BLACK, RIGHT )
16	MAY 12957601
17	COVER, CORNER (BLACK)
18	MAY 12963204ED
19	ROLLER ASSEMBLY (RIGHT HAND)
19	ROLLER ASSEMBLY (LEFT HAND)
20	Screw (8)
21	MAY 12999501
21	MAY 12999502
22	GRILLE ASSEMBLY (INCLUDES CLIPS) (BLACK)
23	MAY W10296536
24	HINGE, CENTER (BLACK, LEFT)
25	SCREW
26	LINER (NOT A SERVICEABLE PART)
28	Screw (4)
29	GASKET-HV BOX
30	MAY W10270394
31	TUBE-DRAIN
33	Insulation, Sound
34	Brake, Foot
35	MAY W10312695
