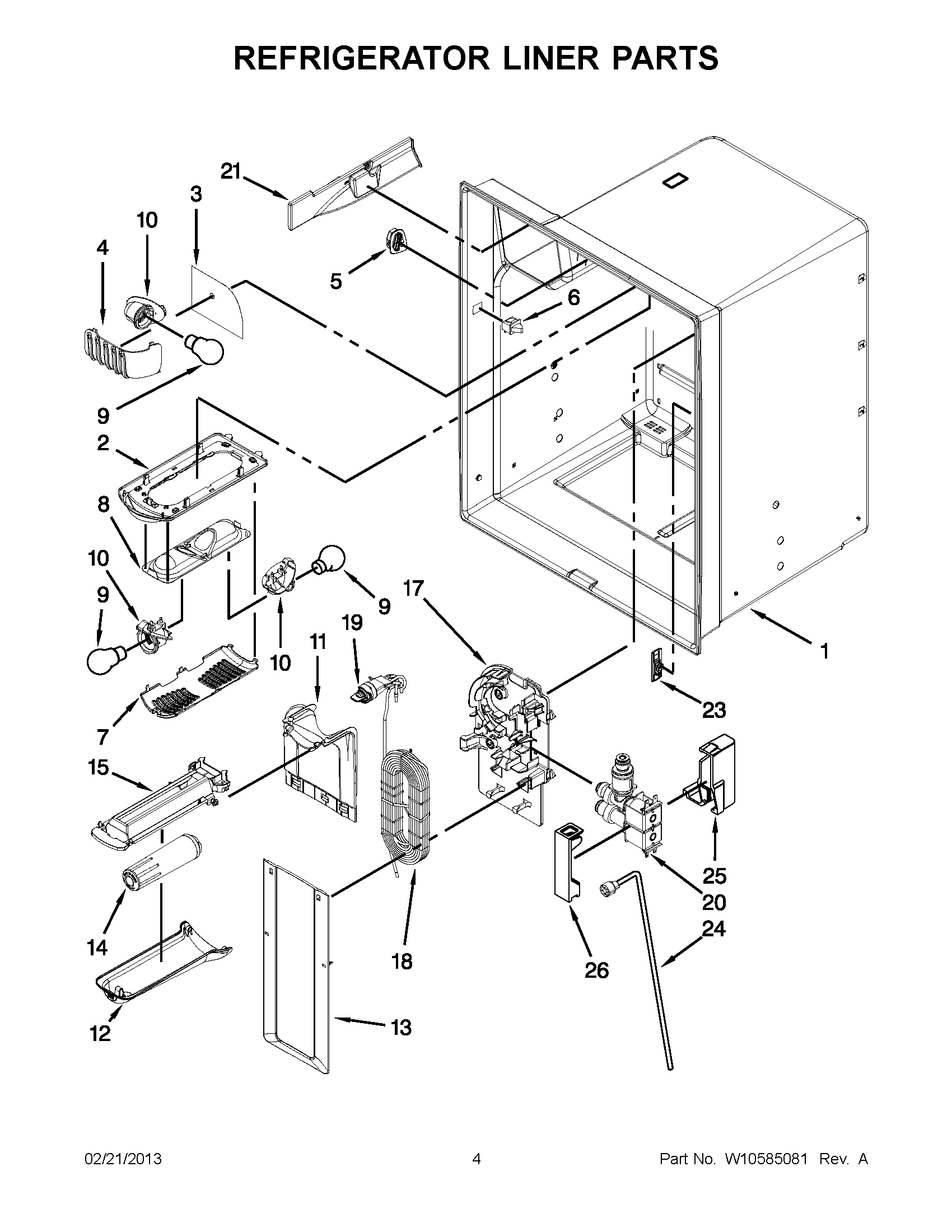

JFI2089AEP13 02 – REFRIGERATOR LINER PARTS

JFI2089AEP13 02 – REFRIGERATOR LINER PARTS

Written by

in

JFI2089AEP13 02 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1LINER (NOT A SERVICEABLE PART)
2MODULE, LIGHT
3MAY 12691605
4MAY 12921801
5ASSEMBLY, AIR GRILLE
6SWITCH, LIGHT
7MAY 12905902
8MAY W10443023
9BULB, LIGHT
10Socket, Light
11Cover, Water Tank (Upper)
12Lid, Water Filter
13COVER, WATER TANK(LOWER)
14MAY W10336197
15MAY 12955901
17BRACKET, WATER TANK AND VALVE
18MAY W10463663
19MAY 12664501SP
20MAY W10312696
21MAY 13033601
23MAY 12987301
24WATERLINE
25MAY W10118193
26MAY W10118194
