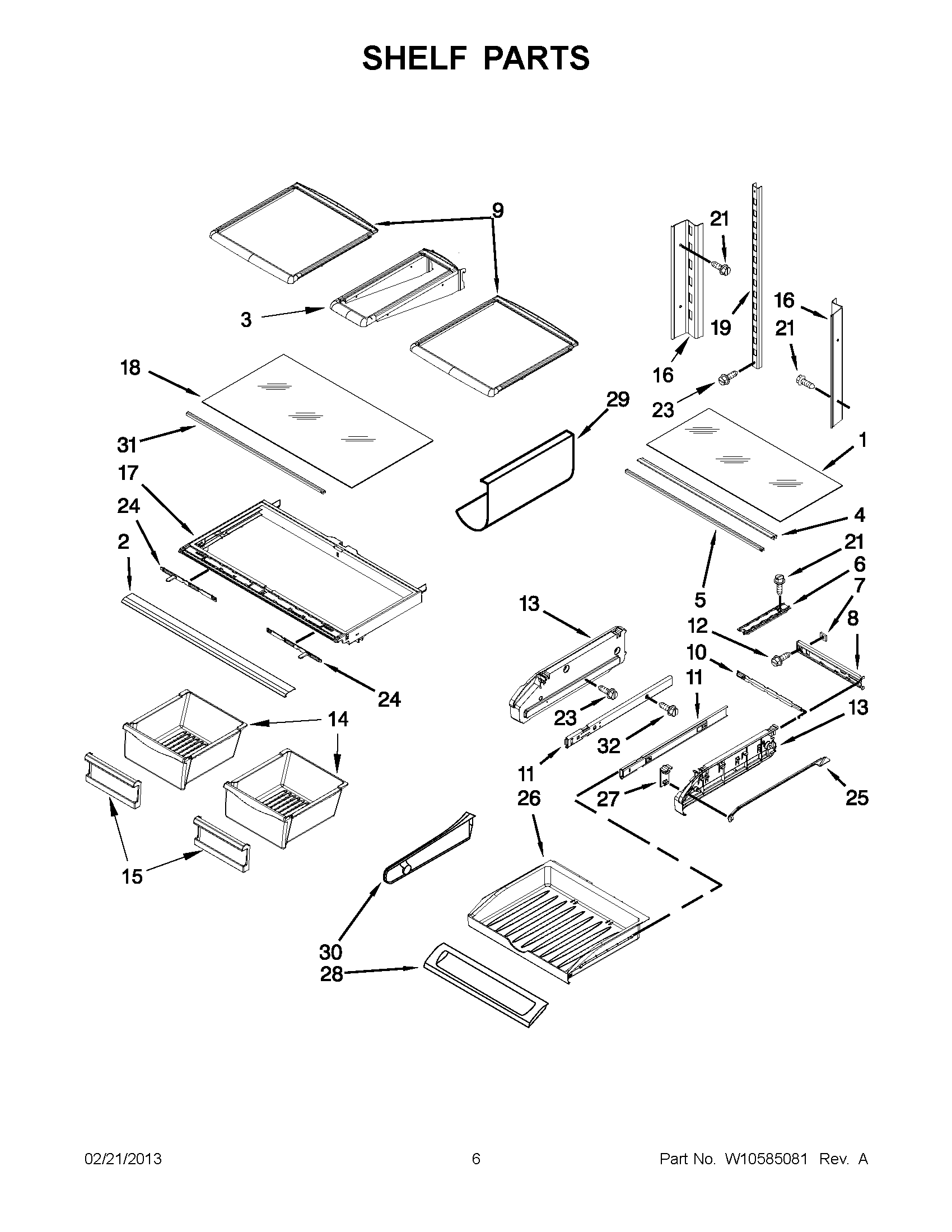

JFI2089AEP13 03 – SHELF PARTSadmin2025-04-26T09:01:49+00:00JFI2089AEP13 03 – SHELF PARTS
Products
| Position | Product |
|---|
| 1 | MAY 12204829 |
| 2 | MAY W10231478 |
| 3 | SHELF, MINI |
| 4 | SUPPORT, GLASS |
| 5 | MAY 12227305WH |
| 6 | TRACK, PANTRY |
| 7 | MAY 12656901 |
| 8 | MAY 12656202 |
| 9 | MAY 12463912 |
| 10 | SLIDE, TEMPERATURE |
| 11 | MAY W10235370 |
| 13 | ENDCAP, PANTRY (RIGHT) |
| 13 | Endcap, Pantry (Left) |
| 14 | Pan, Crisper (2) |
| 15 | HANDLE, CRISPER PAN |
| 16 | LADDER, SIDE LH |
| 16 | MAY W10251967 |
| 17 | MAY 12531202SP |
| 18 | Glass, Crisper Cover |
| 19 | MAY W10273464 |
| 21 | MAY 12990513 |
| 23 | SCREW (2) |
| 24 | MAY 12530805SP |
| 25 | ROD, TEMPERATURE CONTROL |
| 26 | MAY 12655702 |
| 27 | KNOB, TEMP CONTROL |
| 28 | DOOR, PANTRY DRAWER |
| 29 | RACK, BOTTLE |
| 30 | DIVIDER, PANTRY DRAWER |
| 31 | Brace, Crisper |
| 32 | MAY 12990504 |
