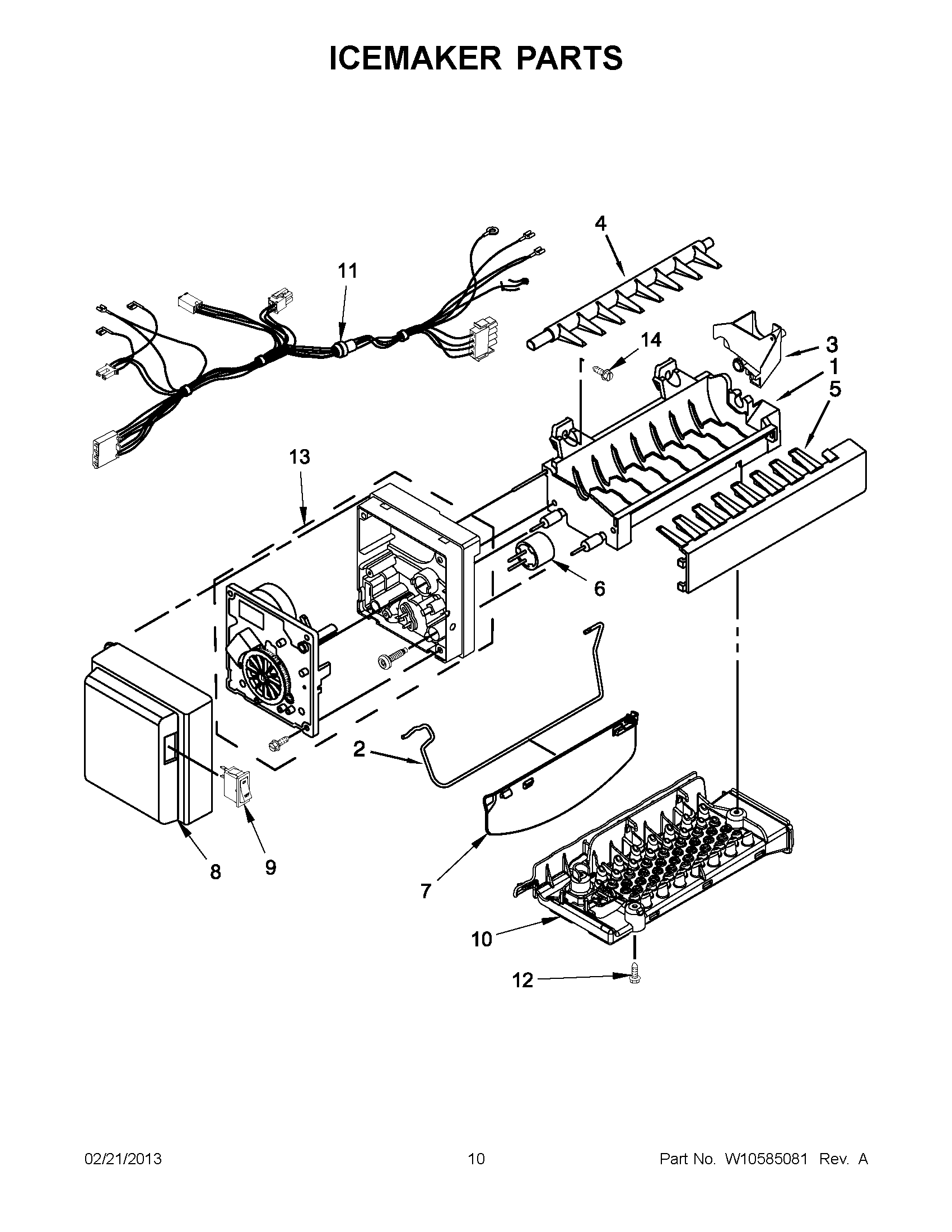

JFI2089AEP13 05 – ICEMAKER PARTS

Written by

Products

Position	Product
1	ASSEMBLY, MOLD AND HEATER
2	MAY W10175514
3	MAY W10327050
4	MAY W10318914
5	ICE STRIPPER
6	MAY W10290336
7	MAY W10351019
8	MAY W10121444
9	MAY 2313326
10	IMPINGER ASSY.
11	MAY W10312698
12	SCREW (10)
13	Module Assembly (Includes Items 23 and 24)
14	MAY W10068250
100	MAY W10300024
