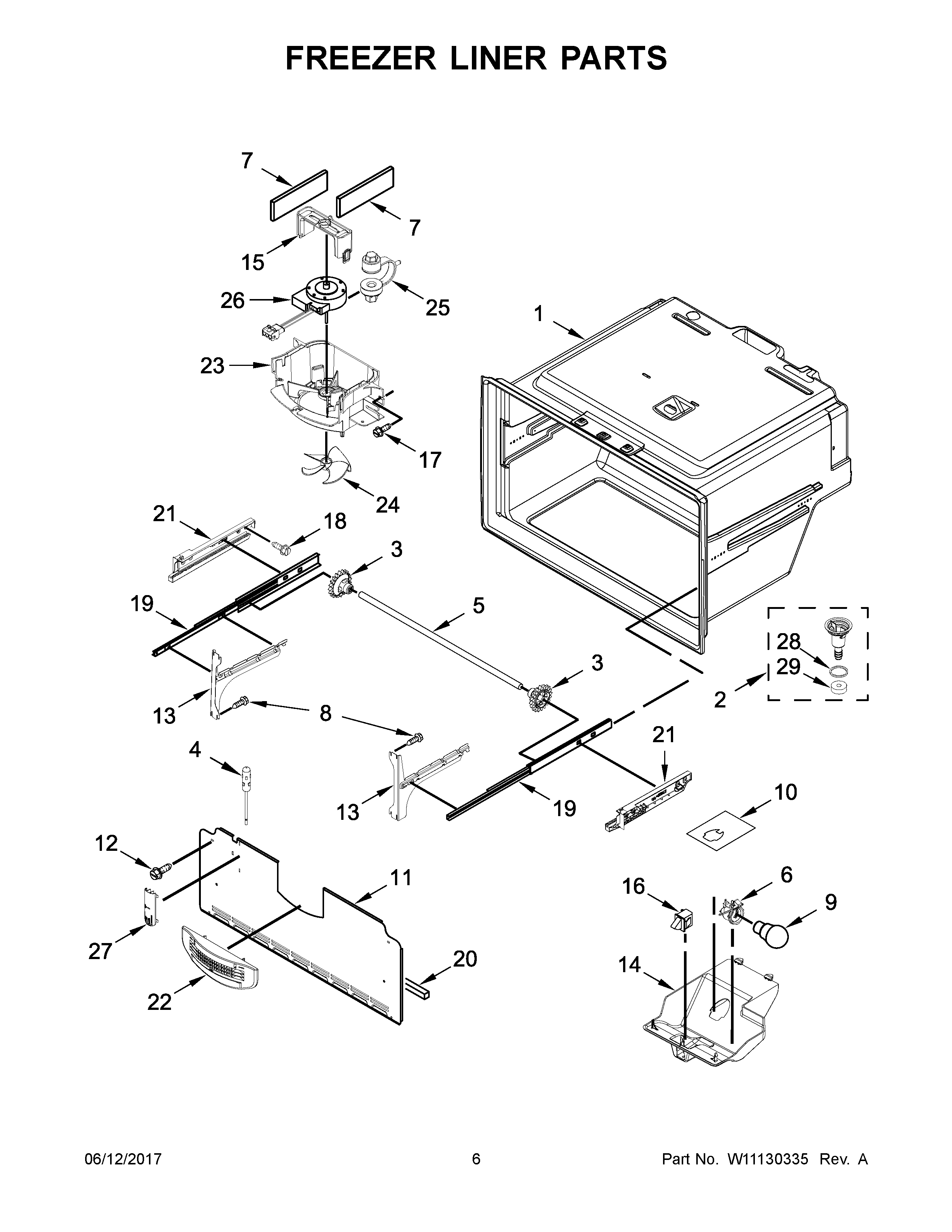

JFI2089AEP14 04 – FREEZER LINER PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	MAY W10662407
3	12002497 Whirlpool Refrigerator Drawer Gear Kit
4	THERMISTOR
5	MAY W10802332
6	W11447232 Whirlpool Refrigerator Socket
7	Gasket, Bottom
8	Screw (8)
9	BULB, LIGHT
10	FOIL-FZ LIGHT
11	COVER, EVAP
12	SCREW (10)
13	BRACKET, DOOR (LEFT)
13A	BRACKET, DOOR (RIGHT)
14	MODULE, FREEZER LIGHT
15	MAY 12956601
16	MAY 12466111SP
17	MAY 12990504
18	Screw (6)
19	Slide, Drawer (2)
20	GASKET, BOTTOM
21	ADAPTER (LEFT HAND)
21A	ADAPTER (RIGHT HAND)
22	MAY 12959901
23	Shroud, Evap Fan
24	Blade, Fan (Evaporator)
25	Grommet, Fan Motor (2)
26	MAY W10257096
27	MAY 12815301
28	MAY M0500703
29	Gasket
