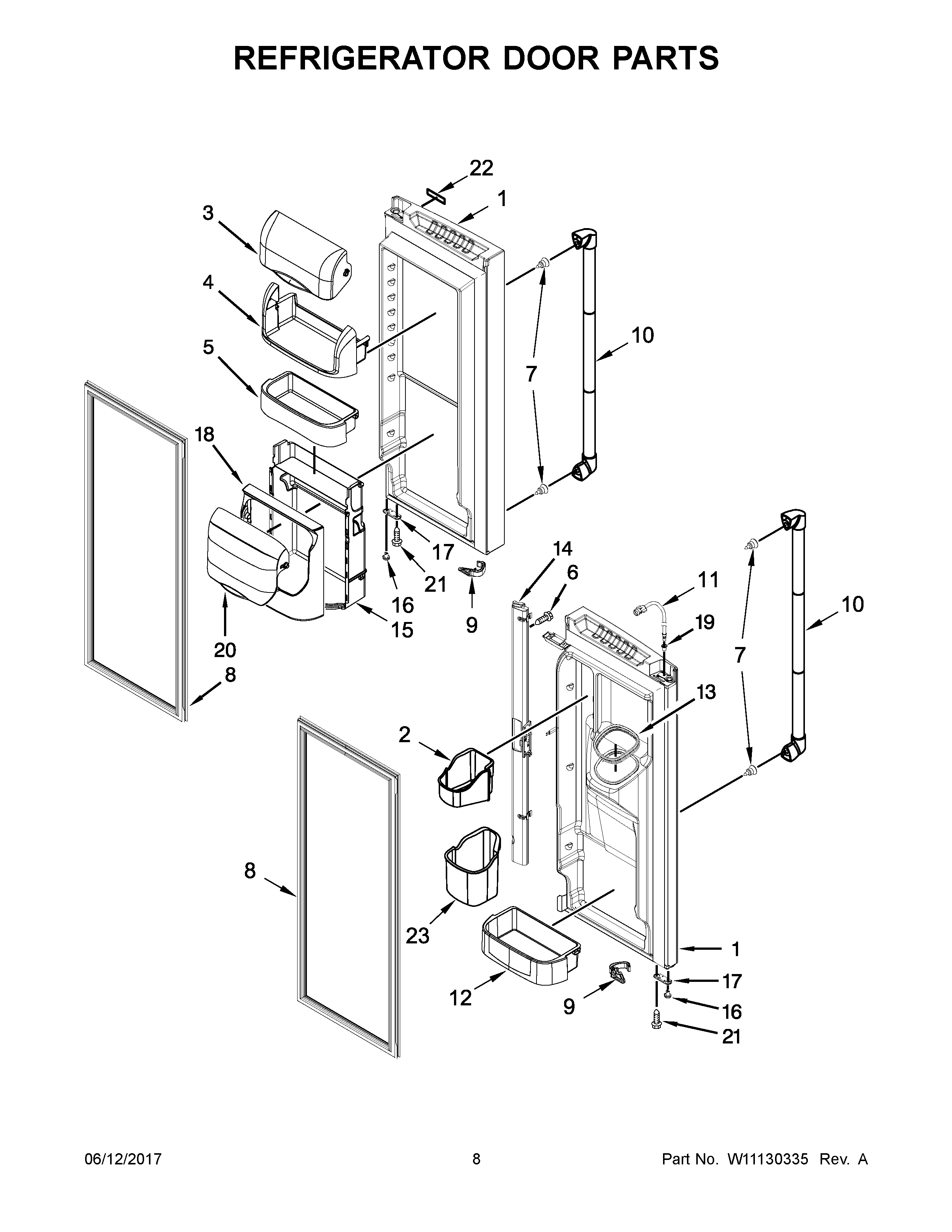

JFI2089AEP14 05 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1A	DOOR, REFRIGERATOR RIGHT HAND (STAINLESS)
1	DOOR, REFRIGERATOR LEFT HAND (STAINLESS)
2	Bin, Upper Door
3	MAY 12804701SP
4	MAY 12369502SP
5	MAY 12945801SP
6	MAY 12990204
7	MAY W10460893
8	GASKET, DOOR (BLACK)
9A	LATCH, DOOR CLOSER RIGHT HAND (BLACK)
9	LATCH, DOOR CLOSER LEFT HAND (BLACK)
10	MAY W10605388
11	MAY W10275942
12	Bin, Shelf (Gallon)
13	MAY W10287601
14	MAY 12722813B
15	MAY 12945601SP
16	MAY 12028505B
17	MAY 12968202B
18	MAY 12945501SP
19	MAY 12996601
20	MAY 12945701SP
21	Screw (8)
22	W11636815 Whirlpool Nameplate
23	Bin, Lower Door
