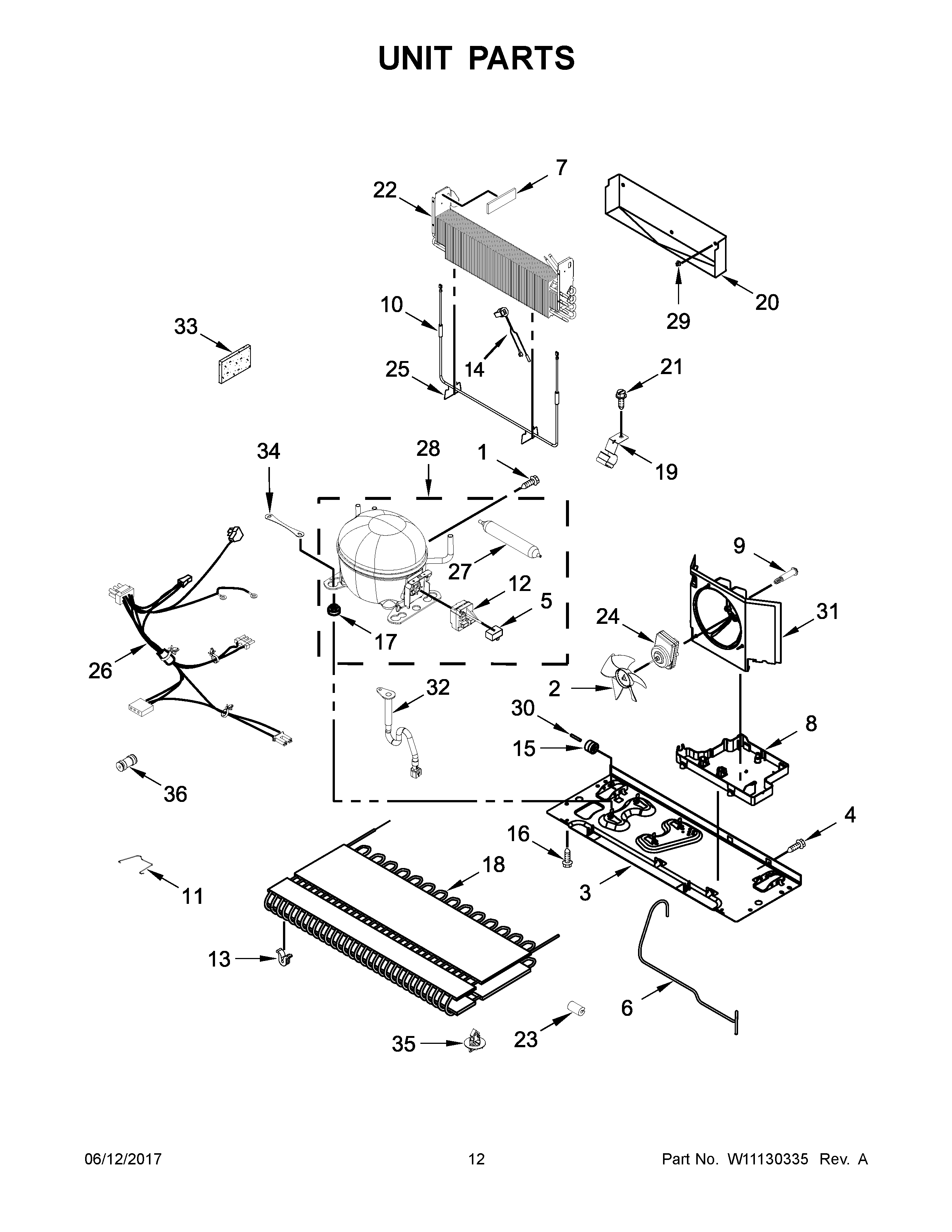

JFI2089AEP14 07 – UNIT PARTS

Products

Position	Product
NI	VALVE, ACCESS (3/8“)
NI	Valve, Access (3/4“)
NI	Valve, Access (5/8“)
NI	Valve, Access (1/2“)
NI	Valve, Access (5/16“)
NI	VALVE, ACCESS (1/4“)
NI	MAY 876764
NI	LINER (NOT A SERVICEABLE PART)
1	MAY 12992301
2	MAY 12825803
3	MAY W10480111
4	SCREW (10)
5	MAY W10350564
6	TUBE, DISCHARGE
7	Gasket, Bottom
8	MAY W10655368
9	MAY W10622701
10	MAY 12729123
11	MAY W10216075
12	DEVICE, START
13	GROMMET, COND (4)
14	MAY 12639311SP
15	Roller (2)
16	MAY 12992101
17	GROMMET, COMPRESSOR
18	MAY W10346415
19	MAY W10281329
20	MAY W10292803
21	MAY 12990701
22	MAY W10313899
23	GROMMET, CONDENSER
24	MOTOR, CONDENSER FAN
25	W11673433 Whirlpool Clip
26	HARNESS, UNIT (INCLUDES POWER CORD)
27	Drier
28	COMPRESSOR
29	MAY 10623002
30	Axle, Roller (2)
31	SHROUD
32	EXTENSION, DRAIN TUBE
33	SEALER, INSULATION
34	MAY W10236396
35	MAY W10815863
36	CONNECTOR, WATER
