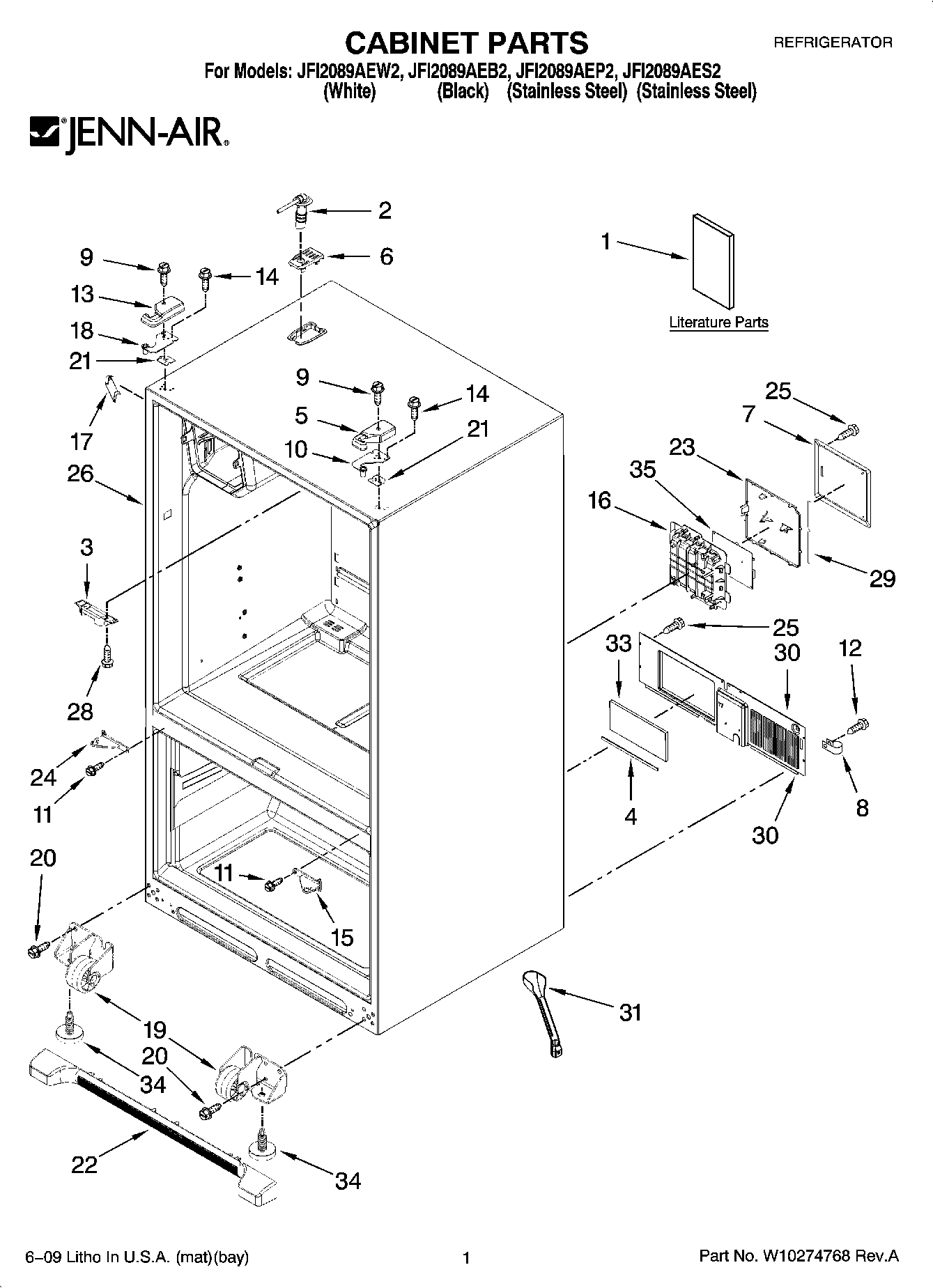

JFI2089AEP2 01 – CABINET PARTS

Products

Position	Product
1	MAY 12828144SP
1	MAY W10202395
1	MAY W10238851
2	Tube W/Waterline, Fill-IM
3	Block, Pivot
4	Gasket
5	MAY 12962302B
5	MAY 12962302W
6	MAY 12981401B
6	MAY 12981401W
7	MAY 12961602
8	W10833902 Whirlpool Refrigerator Clamp
9	MAY 12992602
10	MAY 12963205ED
11	SCREW (6)
12	SCREW (10)
13	MAY 12962301B
13	MAY 12962301W
14	SCREW (6)
15	HINGE, CENTER (BLACK, RIGHT )
15	Hinge, Center (RT) (White)
16	MAY 12957601
17	Cover, Corner (2) (White)
17	COVER, CORNER (BLACK)
18	MAY 12963204ED
19	ROLLER ASSEMBLY (LEFT SIDE)
19	ROLLER ASSEMBLY (RIGHT SIDE)
20	Screw (8)
21	MAY 12999502
21	MAY 12999501
22	GRILLE ASSEMBLY (INCLUDES CLIPS) (BLACK)
22	MAY W10244559
23	MAY 12957701
24	Hinge, Center (LT) (White)
24	HINGE, CENTER (BLACK, LEFT)
25	SCREW
28	Screw (4)
29	GASKET-HV BOX
30	MAY W10211858
31	MAY W10210988
33	Insulation, Sound
34	Brake, Foot
35	MAY W10213583
