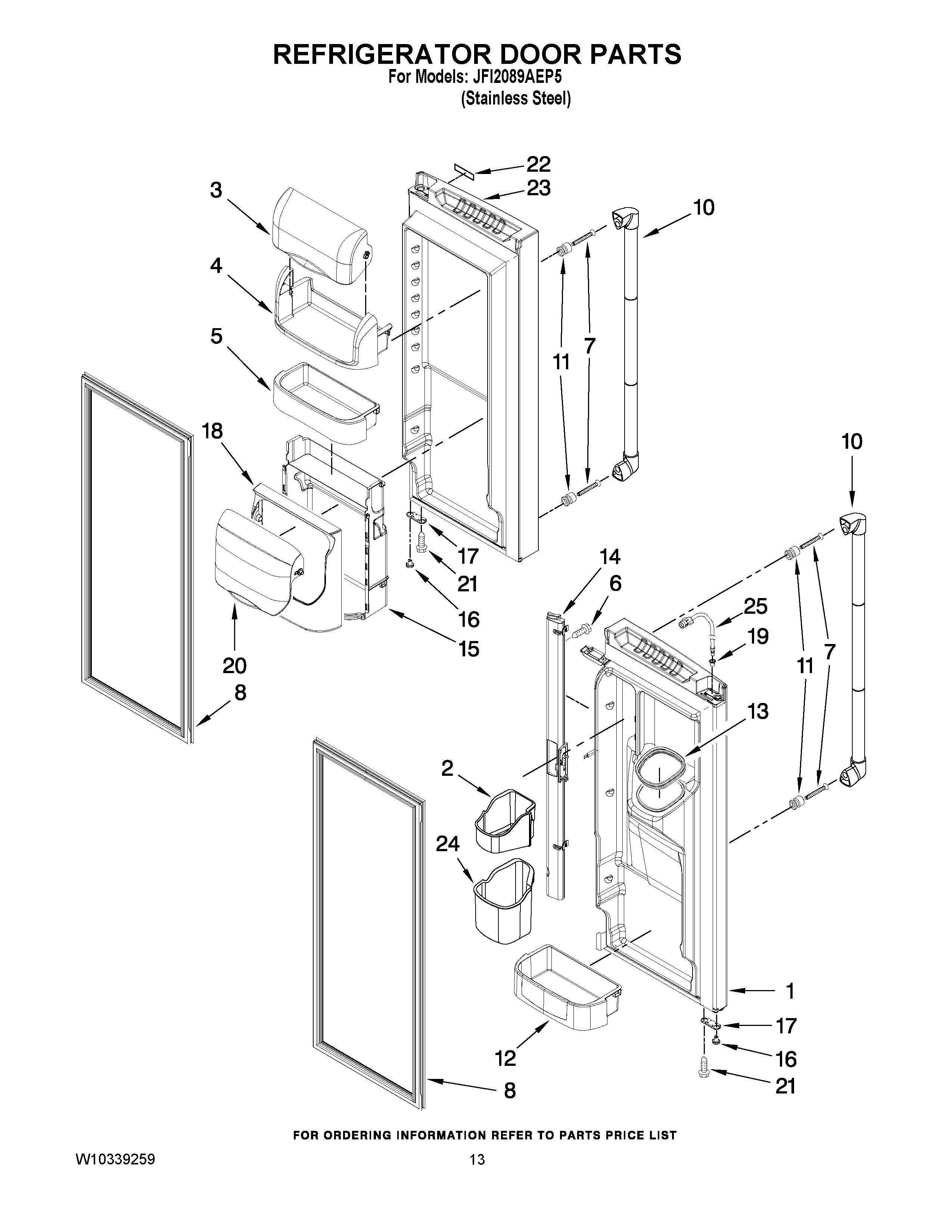

JFI2089AEP5 07 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	MAY 13107820SQ
2	Bin, Upper Door
3	MAY 12804701SP
4	MAY 12369502SP
5	MAY 12945801SP
6	MAY 12990204
7	Screw, Handle
8	MAY W10163898
10	Handle, Door (Stainless)
11	MAY 13001201
12	Bin, Shelf (Gallon)
13	MAY W10287601
14	MAY 12722813B
15	MAY 12945601SP
16	MAY 12028505B
17	MAY 12968202B
18	MAY 12945501SP
19	MAY 12996601
20	MAY 12945701SP
21	Screw (8)
22	W11636815 Whirlpool Nameplate
23	MAY 13107818SQ
24	Bin, Lower Door
25	12962106 Whirlpool Refrigerator Waterline Door
