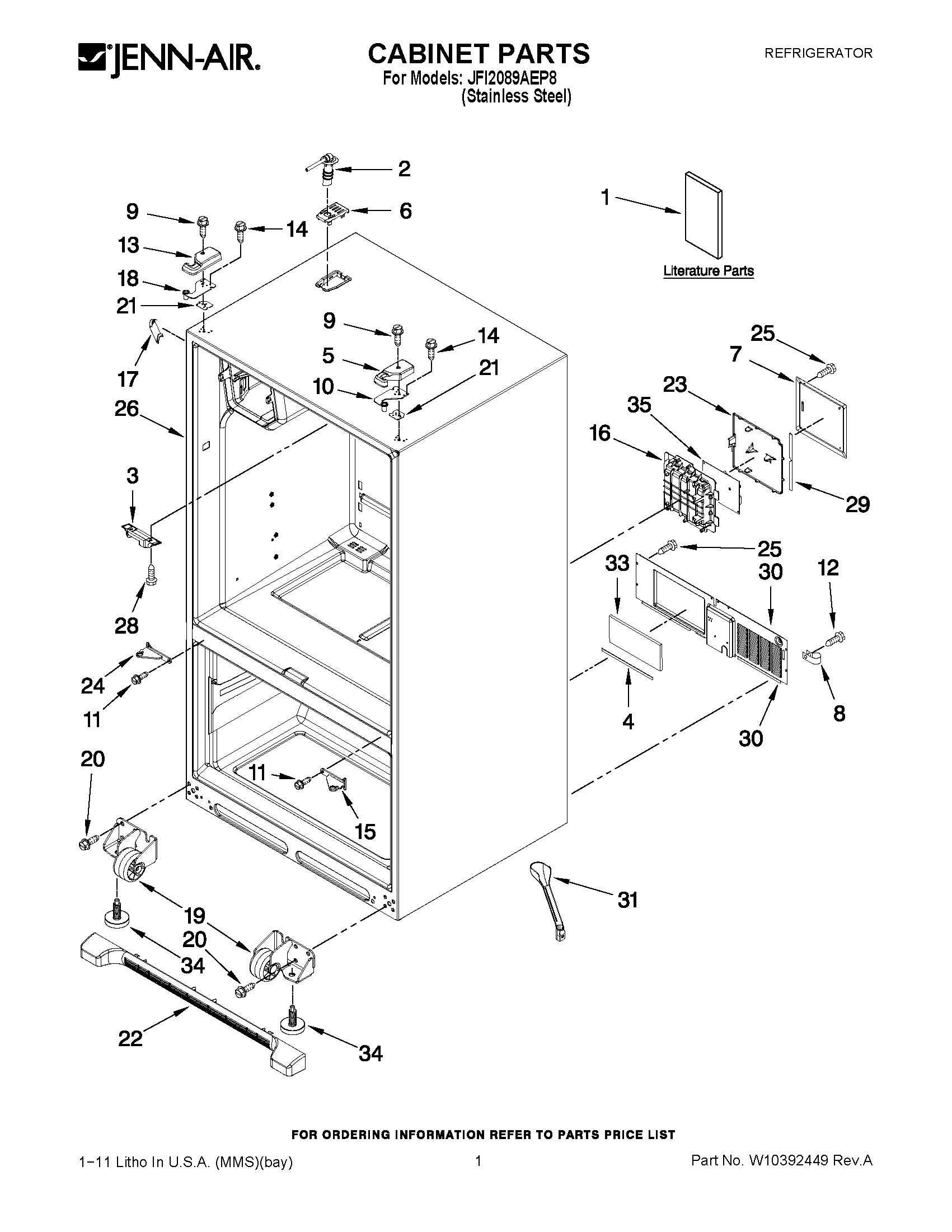

JFI2089AEP8 01 – CABINET PARTSadmin2025-04-26T09:02:04+00:00JFI2089AEP8 01 – CABINET PARTS
Products
| Position | Product |
|---|
| 1 | MAY W10341190 |
| 1 | MAY W10202395 |
| 1 | MAY W10329369 |
| 2 | Tube W/Waterline, Fill-IM |
| 3 | Block, Pivot |
| 4 | MAY B5759655 |
| 5 | MAY 12962302B |
| 6 | MAY 12981401B |
| 7 | MAY 12961602 |
| 8 | CLAMP, TUBE |
| 9 | MAY 12992602 |
| 10 | MAY 12963205ED |
| 11 | SCREW (6) |
| 12 | SCREW (10) |
| 13 | COVER, TOP HINGE LEFT HAND (INCLUDES FOIL) (BLACK) |
| 14 | SCREW (6) |
| 15 | HINGE, CENTER (BLACK, RIGHT ) |
| 16 | MAY 12957601 |
| 17 | COVER, CORNER (BLACK) |
| 18 | MAY 12963204ED |
| 19 | ROLLER ASSY. (FRONT) (LEFT) |
| 19 | ROLLER ASSY. (FRONT) (RIGHT) |
| 20 | Screw (8) |
| 21 | MAY 12999501 |
| 21 | MAY 12999502 |
| 22 | GRILLE ASSEMBLY (INCLUDES CLIPS) (BLACK) |
| 23 | MAY 12957701 |
| 24 | HINGE, CENTER (BLACK, LEFT) |
| 25 | SCREW |
| 26 | LINER (NOT A SERVICEABLE PART) |
| 28 | Screw (4) |
| 29 | GASKET-HV BOX |
| 30 | MAY W10270394 |
| 31 | MAY W10210988 |
| 33 | Insulation, Sound |
| 34 | Brake, Foot |
| 35 | MAY W10312695 |
