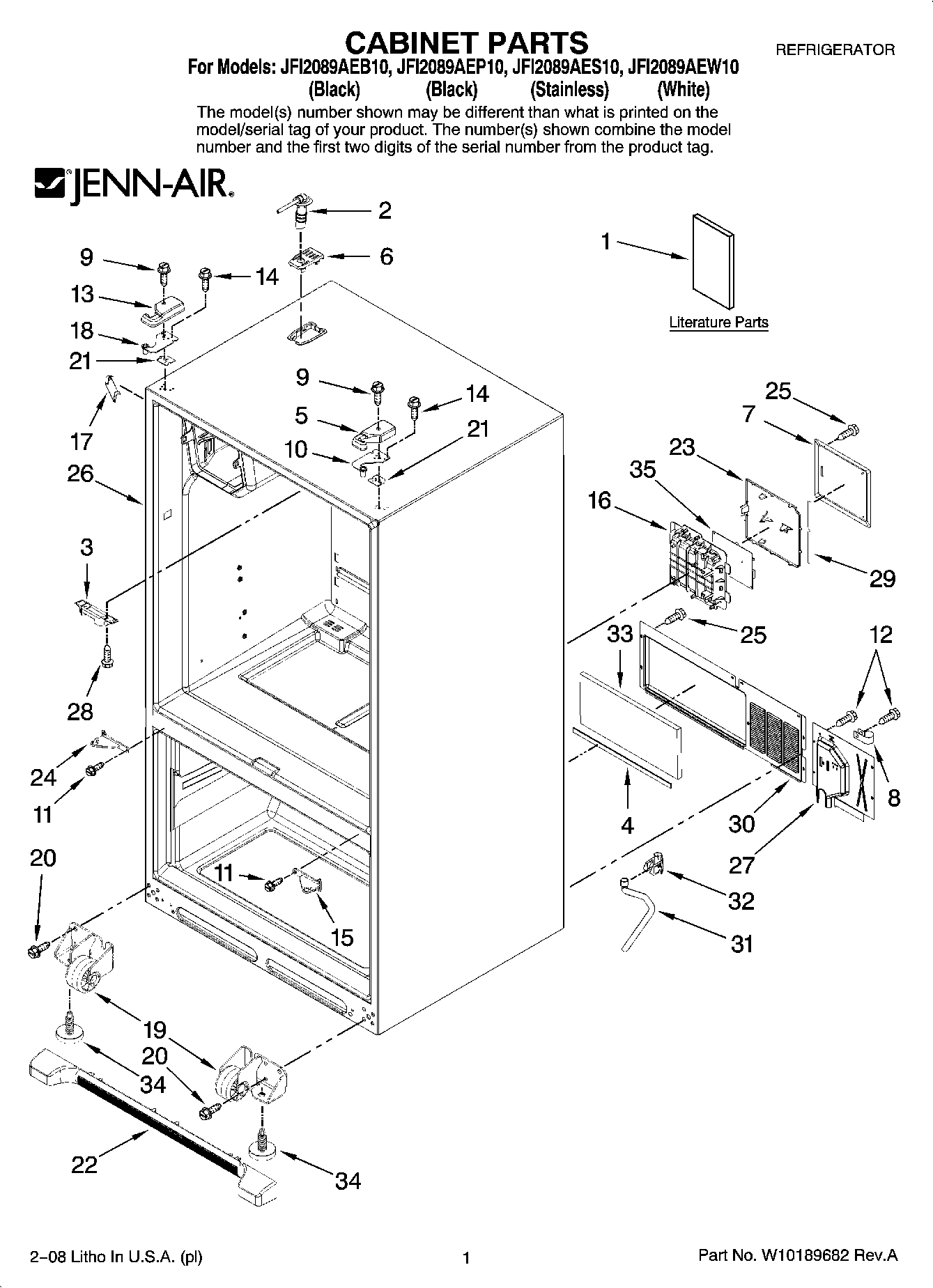

JFI2089AES10 01 – CABINET PARTS

JFI2089AES10 01 – CABINET PARTS

Written by

in

JFI2089AES10 01 – CABINET PARTS

Products

PositionProduct
1MAY 16026312
1MAY W10189629
1MAY W10189628
1MAY 67003826
2TUBE-WATER
3WP67003405 Whirlpool Pivot Block
4Gasket
567005958 Whirlpool Refrigerator Top Hinge Cover (RT-WHT)
5WP67005956 Whirlpool Refrigerator Cover
6MAY 67006320
6MAY 67006321
7MAY 67006427
8W10833902 Whirlpool Refrigerator Clamp
9WP8281196 Whirlpool Screw
10W11592374 Whirlpool Refrigerator Top Door Hinge
11WP67006380 Whirlpool Screw
12Screw (10)
13WPW10337634 Whirlpool Refrigerator Cover
13W10337647 Whirlpool Refrigerator Cover
14WP489349 Whirlpool Refrigerator Screw
15MAY 67006379
15W10918168 Whirlpool Refrigerator Door Hinge
16WP67006390 Whirlpool Refrigerator High Voltage Box
1767003485 Whirlpool Refrigerator Corner Cover (Black)
1767003484 Whirlpool Refrigerator White Corner Cover
18MAY 67005950
19ROLLER ASSY.(FRONT) (LEFT)
19ROLLER ASSY.(FRONT) (RIGHT)
20MAY 67006564
2112999502 Whirlpool Refrigerator Hinge Shim
2112999501 Whirlpool Refrigerator Hinge Shim
22Grille Assembly (Includes Clips) (Black)
22MAY W10131133
2367006428 Whirlpool Refrigerator LID, HV Control
2467006442 Whirlpool Refrigerator Center Hinge (LT-BLK)
24W10918113 Whirlpool Refrigerator Door Hinge
25SCREW
27MAY 67006426
28SCREW
29MAY 67006429
30BACK, MACH COMP
31MAY W10164397
3267001067 Whirlpool Refrigerator Drain Tube Clip
3367003796 Whirlpool Refrigerator Fiber Acoustic
34Brake, Foot
35MAY W10164420
