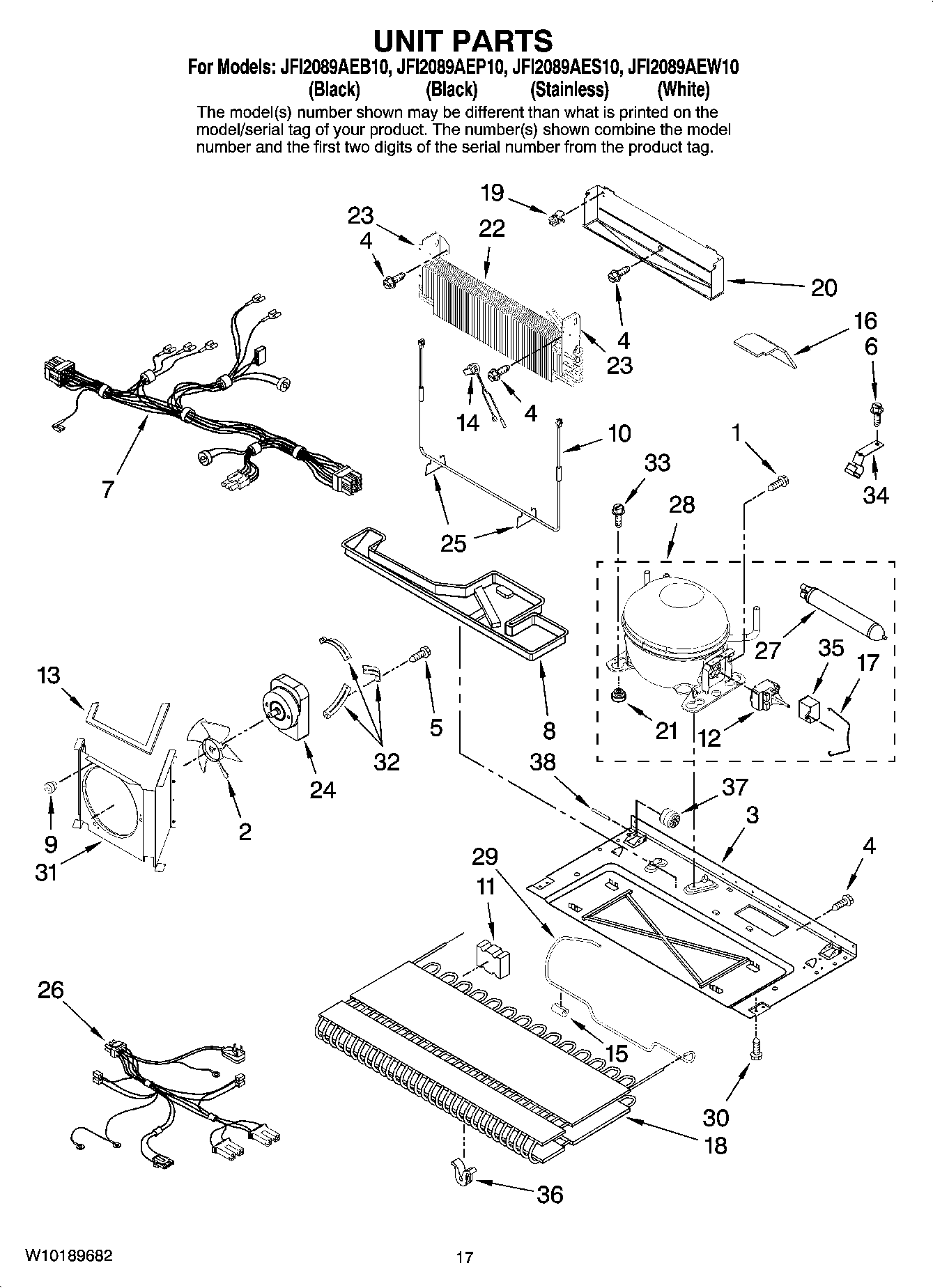

JFI2089AES10 10 – UNIT PARTS, OPTIONAL PARTS (NOT INCLUDED)

JFI2089AES10 10 – UNIT PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

JFI2089AES10 10 – UNIT PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
NI	PAINT, SPRAY (WHITE PRIMER)
NI	PAINT, PRESSURIZED SPRAY (12 OZ.) (BLACK)
NI	MAY 479502
NI	MAY 503695
NI	MAY 505587
NI	MAY 542638
NI	Valve, Access (3/4“)
NI	MAY 542639
NI	MAY 606755
NI	MAY 833938
NI	MAY 876029
NI	MAY 876305
NI	MAY 876370
NI	MAY 978941
NI	MAY 876764
NI	Valve, Access (5/8“)
NI	Valve, Access (5/16“)
NI	VALVE, ACCESS (3/8“)
NI	SEALER, GUM (4 FEET)
NI	Valve, Access (1/2“)
NI	MAY 1117510
NI	4392899 Whirlpool Biscuit Touch-Up Paint
NI	4392901 Whirlpool Biscuit Spray Paint
NI	VALVE, ACCESS (1/4“)
NI	PAINT, TOUCH-UP (1/2OZ. BLACK)
NI	PAINT, TOUCH-UP (1/2OZ. WHITE)
NI	MISCELLANEOUS, ICE CONTAINER (COMPLETE)
NI	PAINT, PRESSURIZED SPRAY (12OZ. WHITE)
NI	Refinishing Material (Enamel, Black (1 Qt. Uncut))
NI	CLEANER, STAINLESS STEEL
NI	PAINT, BULK (1 QT. WHITE (UNCUT))
1	MAY 67006433
2	MAY W10162928
3	MAY 67005889
4	Screw (10)
5	WP67004954 Whirlpool Refrigerator Screw
6	SCREW
7	Harness, Evap Heater
8	WP12579803 Whirlpool Refrigerator Drain Pan
9	GROMMET, BRACKET
10	MAY W10162932
11	MAY 67005491
12	START DEVICE, COMBINATION (START RELAY AND OVERLOAD FOR PRODUCTION COMPRESSOR ONLY) (SERVICE)
13	WP854334 Whirlpool Air Conditioner Sealing Strip
14	MAY 67006387
15	67005680 Whirlpool Refrigerator Condenser Grommet
16	PAD-ACOUSTIC
17	MAY 2255199
18	WP67006131 Whirlpool Refrigerator Condenser
19	MAY 10623002
20	MAY 67002490
21	MAY W10169124
22	MAY W10184230
23	MAY W10162962
23	MAY W10162951
24	MAY 67004432
25	W11673433 Whirlpool Clip
26	MAY 13060202
27	Drier
28	Compressor (Includes items 11,12,17,27,29)
29	MAY W10134293
30	Screw (4)
31	Shroud, Condenser
32	MAY 67004953
33	MAY 67006432
34	MAY 10547003
35	Capacitator (Production)
36	GROMMET, COND (4)
37	WP67005149 Whirlpool Roller
38	67006434 Whirlpool Axle Pin
