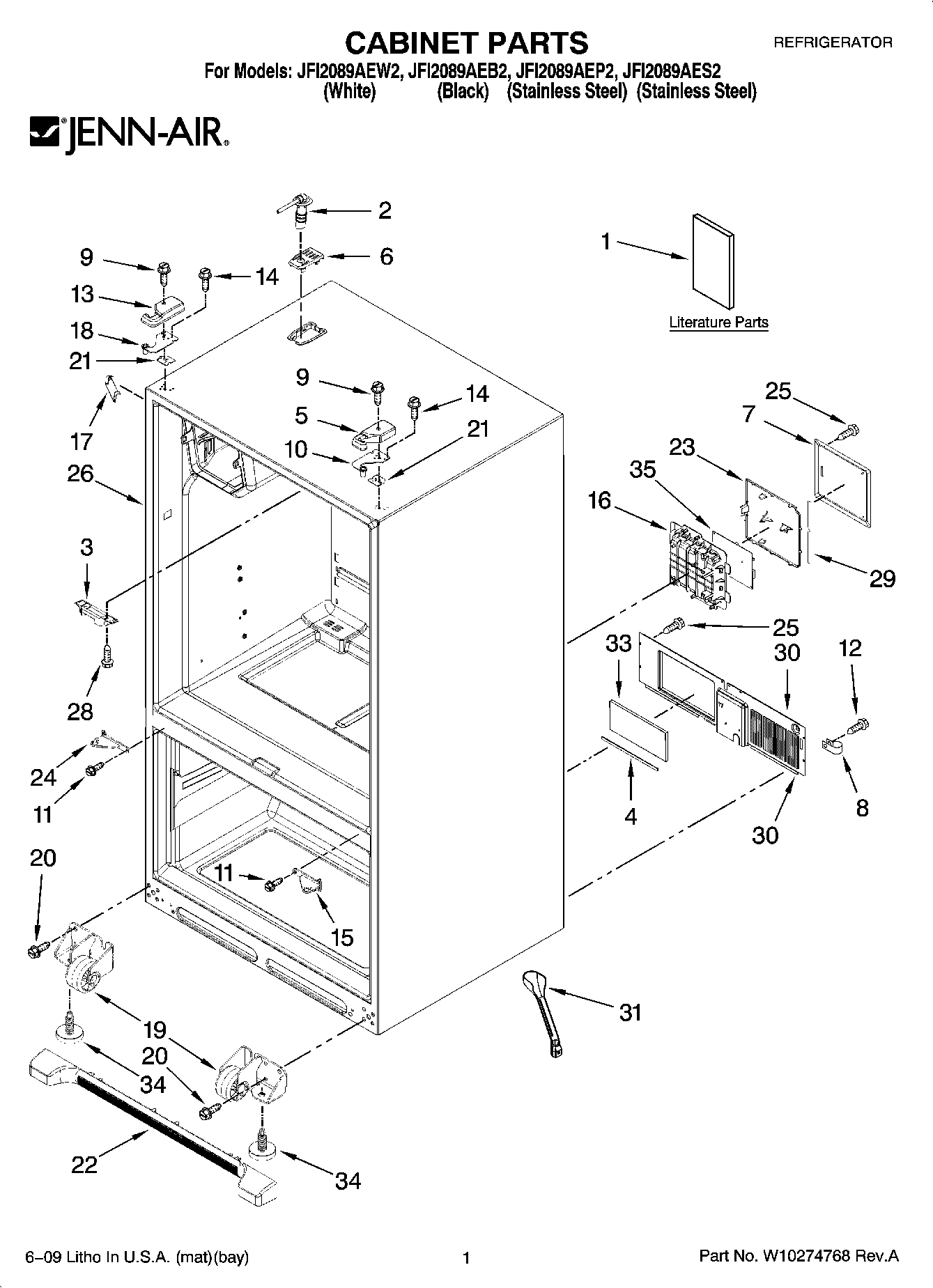

JFI2089AES2 01 – CABINET PARTSadmin2025-04-26T09:00:51+00:00JFI2089AES2 01 – CABINET PARTS
Products
| Position | Product |
|---|
| 1 | MAY 12828144SP |
| 1 | MAY W10202395 |
| 1 | MAY W10238851 |
| 2 | Tube W/Waterline, Fill-IM |
| 3 | Block, Pivot |
| 4 | Gasket |
| 5 | MAY 12962302B |
| 5 | MAY 12962302W |
| 6 | MAY 12981401B |
| 6 | MAY 12981401W |
| 7 | MAY 12961602 |
| 8 | W10833902 Whirlpool Refrigerator Clamp |
| 9 | MAY 12992602 |
| 10 | MAY 12963205ED |
| 11 | SCREW (6) |
| 12 | SCREW (10) |
| 13 | MAY 12962301B |
| 13 | MAY 12962301W |
| 14 | SCREW (6) |
| 15 | HINGE, CENTER (BLACK, RIGHT ) |
| 15 | Hinge, Center (RT) (White) |
| 16 | MAY 12957601 |
| 17 | Cover, Corner (2) (White) |
| 17 | COVER, CORNER (BLACK) |
| 18 | MAY 12963204ED |
| 19 | ROLLER ASSEMBLY (LEFT SIDE) |
| 19 | ROLLER ASSEMBLY (RIGHT SIDE) |
| 20 | Screw (8) |
| 21 | MAY 12999502 |
| 21 | MAY 12999501 |
| 22 | GRILLE ASSEMBLY (INCLUDES CLIPS) (BLACK) |
| 22 | MAY W10244559 |
| 23 | MAY 12957701 |
| 24 | Hinge, Center (LT) (White) |
| 24 | HINGE, CENTER (BLACK, LEFT) |
| 25 | SCREW |
| 28 | Screw (4) |
| 29 | GASKET-HV BOX |
| 30 | MAY W10211858 |
| 31 | MAY W10210988 |
| 33 | Insulation, Sound |
| 34 | Brake, Foot |
| 35 | MAY W10213583 |
