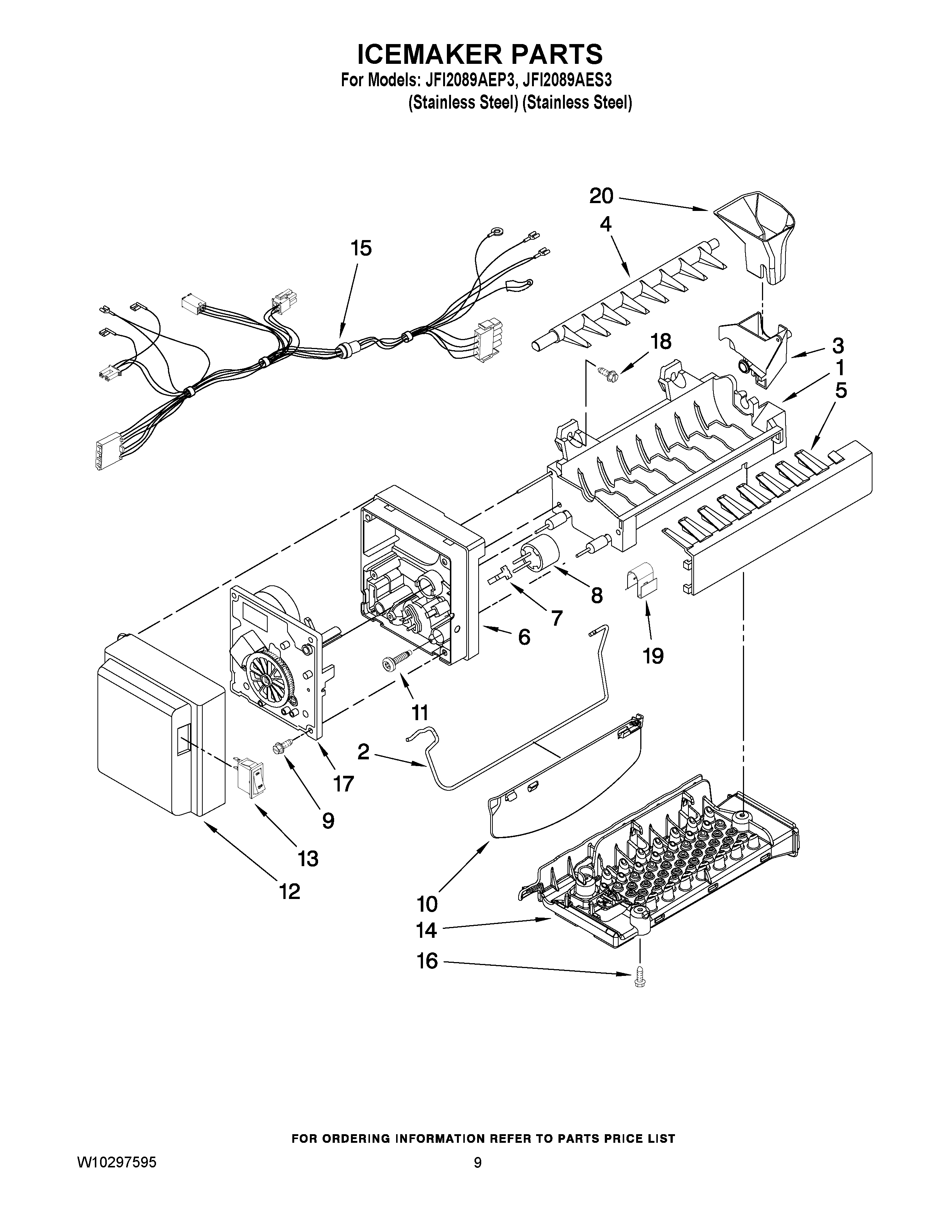

JFI2089AES3 05 – ICEMAKER PARTS

Products

Position	Product
NI	MAY 10244904SP
1	MAY W10122527
2	MAY W10175514
3	Cup, Fill
4	MAY 627843
5	MAY 2182124
6	MAY 2194712
7	MAY 2315522
8	Thermostat (Also Order 542369 Cement Alumilastic)
10	MAY W10121440
11	MAY 8533917
12	MAY W10121444
13	MAY 2313326
14	MAY W10121269
15	MAY W10123395
16	SCREW (10)
17	MODULE ASSEMBLY (INCLUDES ITEM 24)
18	MAY 489276
19	Clip
20	MAY W10121434
100	MAY W10190981
