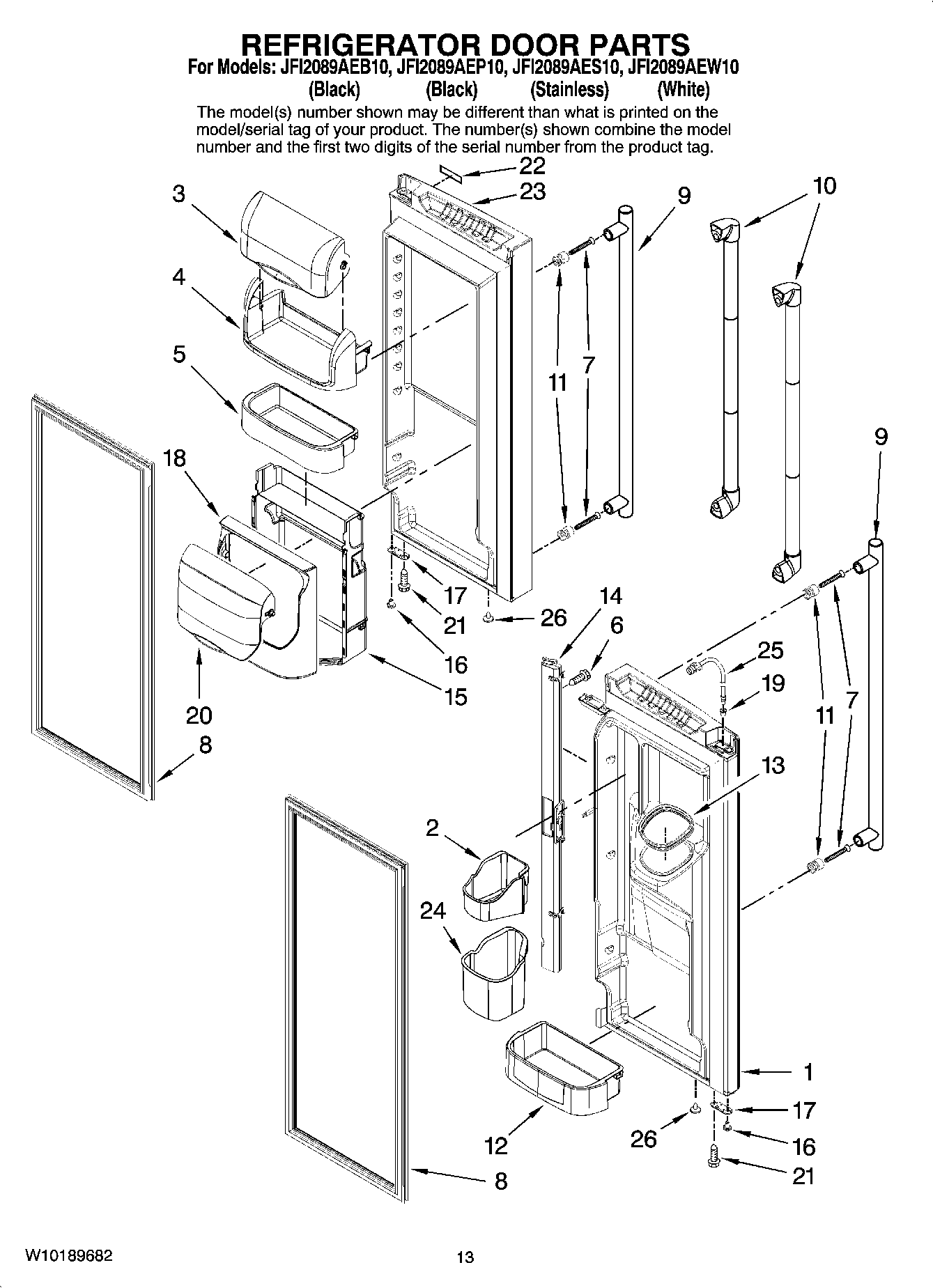

JFI2089AEW10 07 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	MAY W10187650
1	MAY W10187649
1	MAY W10187647
2	Bin, Upper Door
3	WP67003637 Whirlpool Dairy Door
4	WP67001279 Whirlpool Refrigerator Dairy Tray
5	WP67006313 Whirlpool Refrigerator Chiller Bucket
6	MAY 67006786
7	SCREW, HANDLE
8	MAY W10162891
8	MAY W10162893
9	Handle, Door (Stainless)
10	WP12859109 Whirlpool Door Handle
11	MAY 67006109
12	MAY W10187434
13	WPW10287601 Whirlpool Seal
14	MAY W10164404
14	MAY W10164405
16	WP67003639 Whirlpool Refrigerator Closer
16	WP67003638 Whirlpool Closing Cam
17	MAY 12968202W
17	W11708403 Whirlpool Door Stop
18	W11266639 Whirlpool Refrigerator Chiller
19	12996601 Whirlpool Refrigerator Bushing Clip
20	DOOR-CHILL
21	Screw (8)
22	W11636815 Whirlpool Nameplate
22	12848704 Whirlpool Refrigerator Nameplate
23	MAY W10187646
23	MAY W10187643
23	MAY W10187645
24	Bin, Lower Door
25	12962106 Whirlpool Refrigerator Waterline Door
26	10712401 Whirlpool Refrigerator Vent Plug (White)
26	67004838 Whirlpool Refrigerator Button Vent Plug
