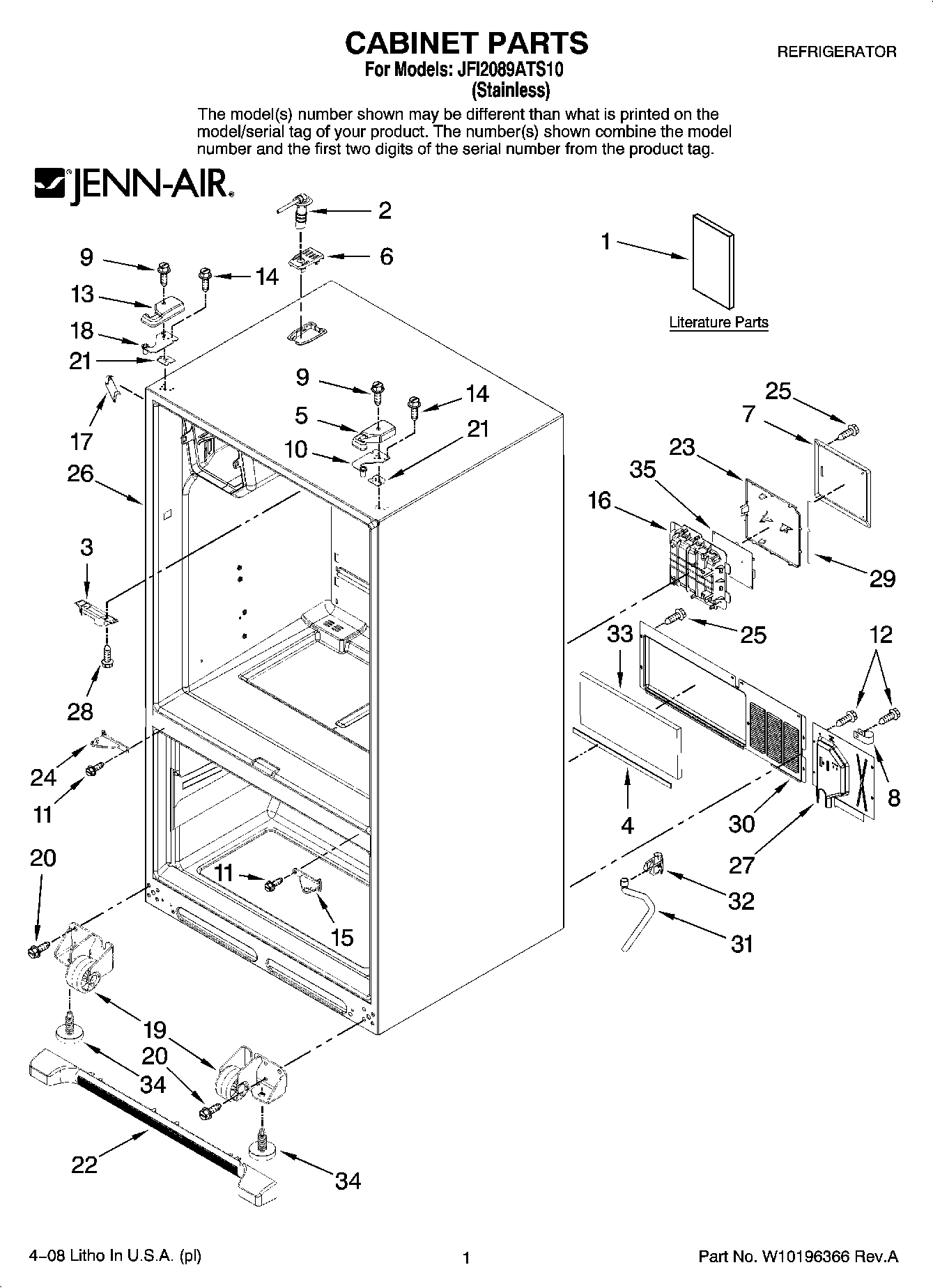

JFI2089ATS10 01 – CABINET PARTS

Products

PositionProduct
1MAY W10184475
1MAY W10189629
1MAY W10189628
1MAY 16026312
2TUBE-WATER
3WP67003405 Whirlpool Pivot Block
4Gasket
5WP67005956 Whirlpool Refrigerator Cover
6MAY 67006320
7MAY 67006427
8W10833902 Whirlpool Refrigerator Clamp
9WP8281196 Whirlpool Screw
10W11592374 Whirlpool Refrigerator Top Door Hinge
11WP67006380 Whirlpool Screw
12Screw (10)
13W10337647 Whirlpool Refrigerator Cover
14WP489349 Whirlpool Refrigerator Screw
15W10918168 Whirlpool Refrigerator Door Hinge
16WP67006390 Whirlpool Refrigerator High Voltage Box
1767003485 Whirlpool Refrigerator Corner Cover (Black)
18MAY 67005950
19ROLLER ASSY.(FRONT) (LEFT)
19ROLLER ASSY.(FRONT) (RIGHT)
20MAY 67006564
2112999502 Whirlpool Refrigerator Hinge Shim
2112999501 Whirlpool Refrigerator Hinge Shim
22Grille Assembly (Includes Clips) (Black)
2367006428 Whirlpool Refrigerator LID, HV Control
2467006442 Whirlpool Refrigerator Center Hinge (LT-BLK)
25SCREW
27MAY 67006426
28SCREW
29MAY 67006429
30BACK, MACH COMP
31MAY W10164397
3267001067 Whirlpool Refrigerator Drain Tube Clip
3367003796 Whirlpool Refrigerator Fiber Acoustic
34Brake, Foot
35MAY W10191108
