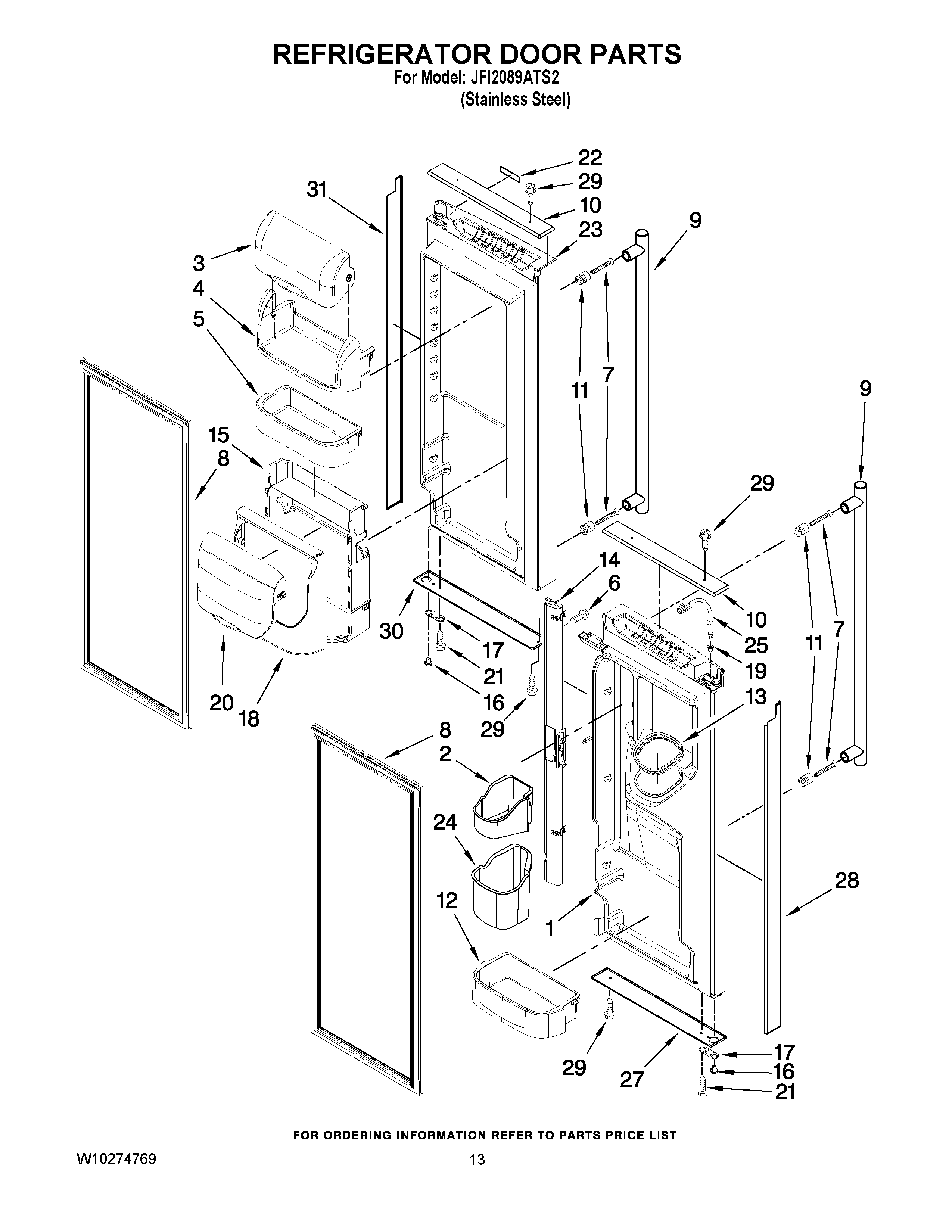

JFI2089ATS2 07 – REFRIGERATOR DOOR PARTS

JFI2089ATS2 07 – REFRIGERATOR DOOR PARTS

Written by

in

JFI2089ATS2 07 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1MAY 12978014BQ
2Bin, Upper Door
3MAY 12804701SP
4MAY 12369502SP
5MAY 12945801SP
6MAY 12990204
7Screw, Handle
8MAY W10163898
9HANDLE (STAINLESS STEEL)
10MAY 13004501S
11MAY 12945201
12Bin, Shelf (Gallon)
13MAY 12999902
14MAY 12722813BKV
15MAY 12945601SP
16MAY 12028505B
17MAY 12968202B
18MAY 12945501SP
19MAY 12996601
20MAY 12945701SP
21Screw (8)
2212848704 Whirlpool Refrigerator Nameplate
23MAY 12978013BQ
24Bin, Lower Door
2512962106 Whirlpool Refrigerator Waterline Door
27MAY 13004504S
28MAY 13004601S
29Screw (4)
30MAY 13004505S
31MAY 13004602S
