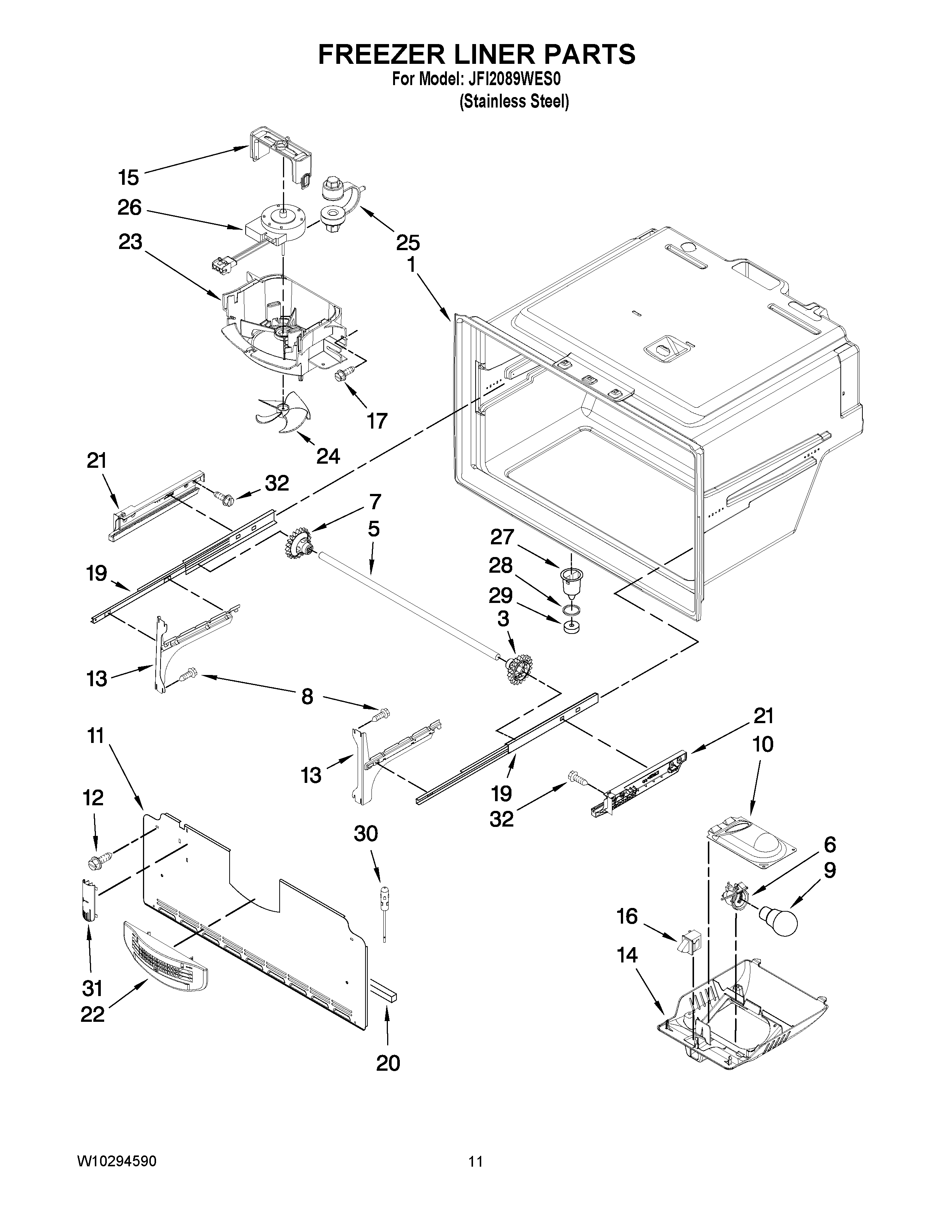

JFI2089WES0 06 – FREEZER LINER PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
5	SHAFT
6	W11447232 Whirlpool Refrigerator Socket
7	12002497 Whirlpool Refrigerator Drawer Gear Kit
8	Screw (8)
9	MAY W10194422
10	MAY 12476401SP
11	MAY 12935801
12	SCREW (10)
13	MAY W10119064
13	MAY W10119295
14	MAY 13027902SP
15	MAY 12956601
16	MAY 12466111SP
17	MAY 12990504
19	Slide, Drawer (2)
20	Gasket, Bottom
21	MAY 13042306
21	MAY 13042305
22	MAY 12959901
23	Shroud, Evap Fan
24	Blade, Fan (Evaporator)
25	Grommet, Fan Motor (2)
26	MAY W10162809
27	MAY D7753903
28	MAY M0500703
29	Gasket
30	12002355 Whirlpool Refrigerator Thermistor Kit
31	MAY 12815301
32	Screw (6)
