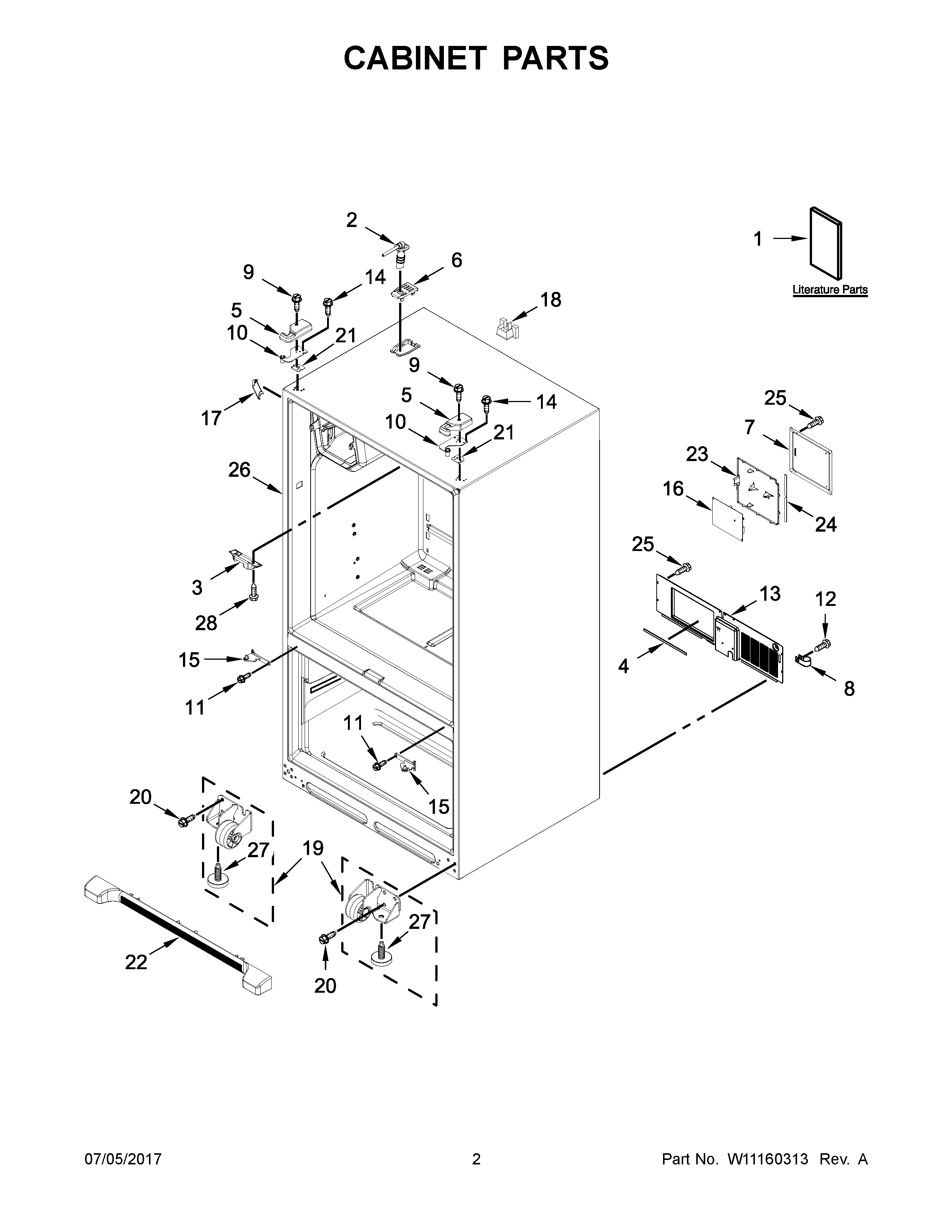

JFI2089WES10 02 – CABINET PARTS

Products

Position	Product
1A	MAY W10329369
1	TECH SHEET
1B	MAY W11112939
2	Tube W/Waterline, Fill-IM
3	Block, Pivot
4	MAY B5759655
5A	MAY 12962302B
5	COVER, TOP HINGE LEFT HAND (INCLUDES FOIL) (BLACK)
6	MAY 12981401B
7	MAY 12961602
8	CLAMP, TUBE
9	MAY 12992602
10A	MAY 12963205ED
10	MAY 12963204ED
11	MAY W10673840
12	SCREW (10)
13	MAY W10270394
14	SCREW (6)
15A	HINGE, CENTER RIGHT HAND (BLACK)
15	HINGE, CENTER LEFT HAND (BLACK)
16	MAY W10312695
17	COVER, CORNER (BLACK)
18	MAY W10658542
19	ROLLER ASSEMBLY (LEFT HAND)
19A	ROLLER ASSEMBLY (RIGHT HAND)
20	MAY W10709365
21A	MAY 12999502
21	MAY 12999501
22	GRILLE, TOE (BLACK)
23	MAY W10296536
24	GASKET-HV BOX
25	SCREW
26	LINER (NOT A SERVICEABLE PART)
27	Brake, Foot
28	Screw (4)
