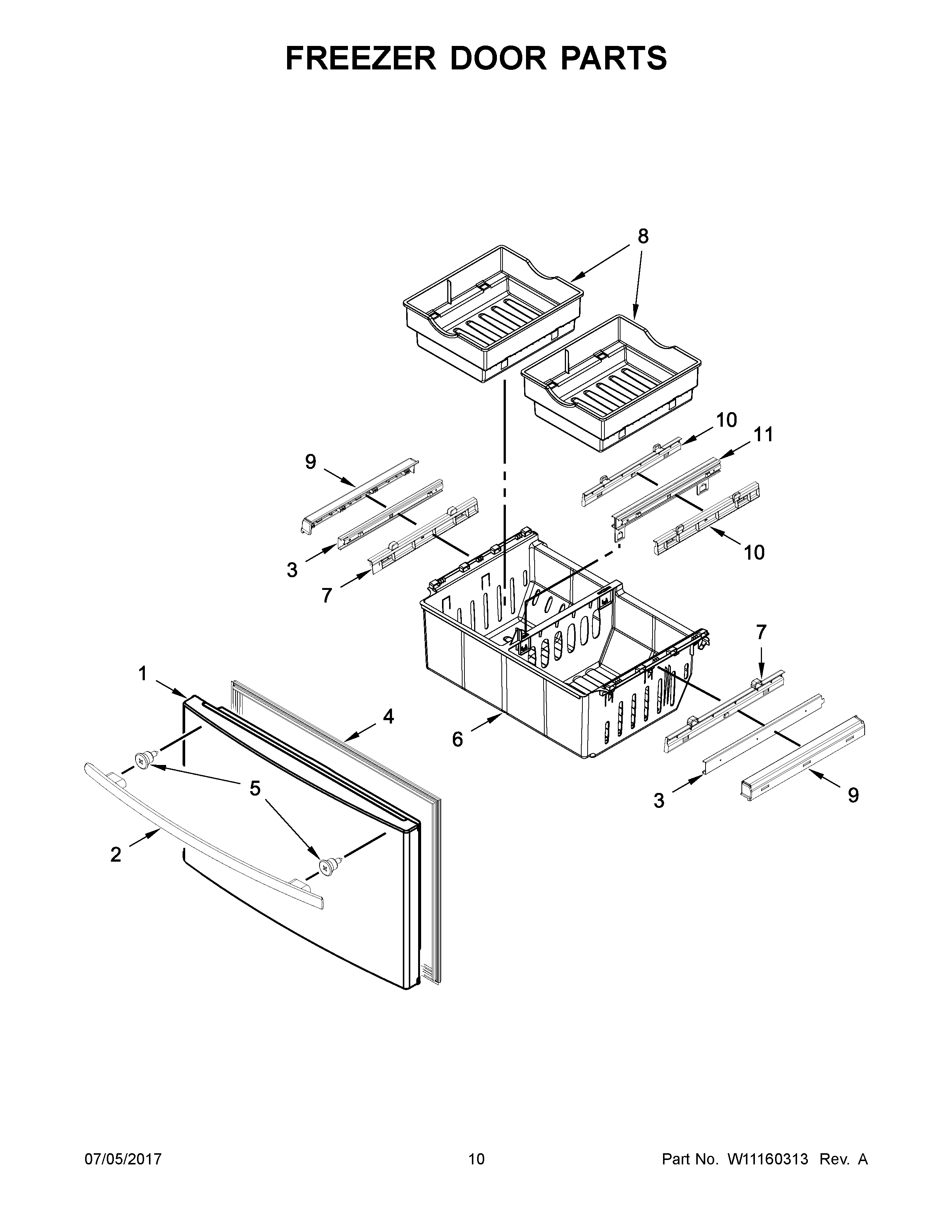

JFI2089WES10 06 – FREEZER DOOR PARTS

JFI2089WES10 06 – FREEZER DOOR PARTS

Written by

in

JFI2089WES10 06 – FREEZER DOOR PARTS

Products

PositionProduct
1DOOR, FREEZER (STAINLESS)
2HANDLE, DOOR (STAINLESS)
3MAY W10235368
4GASKET, DOOR (BLACK)
5MAY W10460893
6MAY 13002801SP
7MAY 13002603SP
8MAY 13002402
9RETAINER, GLIDE (LEFT HAND)
9ARETAINER, GLIDE (RIGHT HAND)
10MAY 13002604SP
11BRACKET/GLIDE (ASSEMBLY)
